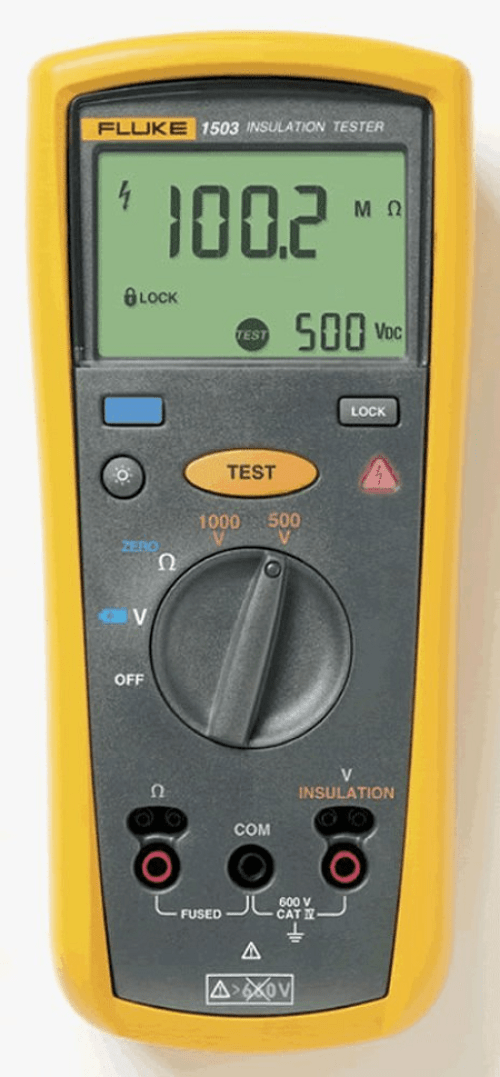

INSULATION TESTER - IC-FLUKE-1503
Backorder Now, once ordered your item will dispatch before the 11th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
The Fluke 1503 Insulation Tester is compact, rugged, reliable, and easy to use. With its multiple test voltages, they are ideal for many troubleshooting, commissioning, and preventative maintenance applications.
Regular price
$959.00 AUD
+ GST
$1,054.90 AUD Inc. GST
$1,054.90 AUD Inc. GST
Insulation test range: 0.1 M? to 2000 M?
Insulation test voltages: 500 V, 1000 V
Repetitive or hard-to-reach testing is easy with the remote test probe
Live circuit detection prevents insulation test if voltage > 30 V is detected for added user protection
Auto-discharge of capacitive voltage for added user protection
AC/DC voltage: 0.1 V to 600 V
200 mA Continuity
Resistance: 0.01 ? to 20.00 k?
Save battery power with auto power off
Read measurements easily with large, backlit display
CAT IV 600 V overvoltage category rating for added user protection
Remote probe, test leads, probes and alligator clips included with each tester
Accepts optional Fluke TPAK magnetic hanging system to free your hands for other work
Four AA alkaline batteries (NEDA 15 A or IEC LR6) for at least 1000 insulation tests
One year warranty
Specifications
AC/DC range: 600.0 V
AC/DC resolution: 0.1 V
Accuracy: 50 Hz to 400 Hz ± (% of Rdg + Digits) ± (2 % + 3)
Input impedance: 3 MΩ (nominal), < 100 pF
Common mode rejection ratio (1 kΩ unbalanced): > 60 dB at dc, 50 or 60 Hz
Overload Protection: 600 V rms or dc
Earth bond resistance measurement range/resolution: 20.00 Ω/0.01 Ω, 200.0 Ω/0.1 Ω, 2000 Ω/1.0 Ω, 20.00 kΩ/0.01 kΩ
Earth bond resistance measurement accuracy: ± (1.5 % + 3)
Overload protection: 2 V rms or dc
Open circuit test voltage: > 4.0 V, < 8 V
Short circuit current: > 200.0 mA
Insulation specifications:
Measurement Range: 0.01 MΩ to 2000 MΩ
Test voltage: 500 V, 1000V
Test Voltage Accuracy: + 20 %, - 0 %
Short circuit current: 1 mA nominal
Auto discharge: Discharge time < 0.5 second for C = 1 µF or less
Live circuit indicator: Inhibit test if terminal voltage > 30 V prior to initialization of test
Maximum capacitive load: Operable with up to 1 µF load
Measure Accuracy: 50 V: ±(3 % + 5), 100 V: ±(3 % + 5), 250 V: ±(1.5 % + 5), 500 V: ±(1.5 % + 5), 1000 V:±(1.5 % + 5) to 2000 MΩ, ±(10 % + 3) above 2000 MΩ
Earth bond resistance measurement accuracy: ± (1.5 % + 3)
Overload protection: 2 V rms or dc
Open circuit test voltage: > 4.0 V, < 8 V
Short circuit current: > 200.0 mA
Insulation specifications:
Measurement Range: 0.01 MΩ to 2000 MΩ
Test voltage: 500 V, 1000V
Test Voltage Accuracy: + 20 %, - 0 %
Short circuit current: 1 mA nominal
Auto discharge: Discharge time < 0.5 second for C = 1 µF or less
Live circuit indicator: Inhibit test if terminal voltage > 30 V prior to initialization of test
Maximum capacitive load: Operable with up to 1 µF load
Measure Accuracy: 50 V: ±(3 % + 5), 100 V: ±(3 % + 5), 250 V: ±(1.5 % + 5), 500 V: ±(1.5 % + 5), 1000 V:±(1.5 % + 5) to 2000 MΩ, ±(10 % + 3) above 2000 MΩ
