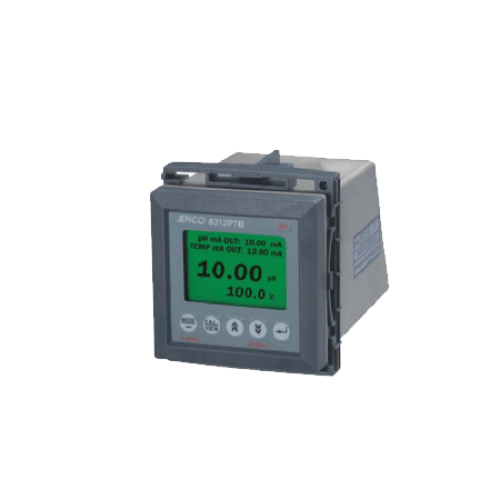

Industrial online pH/Temp controller with RS485 interface software
ORDER ME IN
Order Me In, Once ordered this item will likely dispatch before the 20th of October 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.
pH/mV analyzer, dual current isolated reversible transmitters, RS-485, relays 2 high, 1 low and 1 temp.
Regular price
$1,229.80 AUD
+ GST
$1,352.78 AUD Inc. GST
$1,352.78 AUD Inc. GST
Features:
- Graphic LCD with manual backlight displays pH, temperature, relay status, and transmitter current mA output.
- Automatic buffer recognition of US and NIST buffer sets. Calibration data is stored in memory and is ready for use on power up.
- Two sets of isolated and reversible 4-20 mA current output for pH and temperature allows it to be used as a proportional output.
- 4 programmable on/off relays: 3 for pH and 1 for temperature.
- RS-485 output for remote access allows multiple units to be connected and ganged together.
- Password protection.
- IP65.
Specifications
- pH Range: -2.00 to 16.00 pH
- pH Resolution: 0.01 pH
- pH Accuracy: ?0.01 pH ?1 digit
- Temperature Range: -10.0 to 120.0 ?C
- Temperature Resolution: 0.1?C
- Temperature Accuracy: ?0.2?C
- pH Buffer Recognition: (4.01, 7.00, 10.01) or (4.00, 6.86, 9.18), user selectable
- pH Electrode Offset Recognition: ?100 mV at pH 7.00 / -91.7 mV to 108.3 mV at pH 6.86
- pH Electrode Slope Recognition: ?30% at pH 4.00, 4.01, 9.18 or 10.01
- Temperature Compensation: Auto, -10.0 to 120.0?C (Thermistor, 10K ohm at 25.0?C)
- Input Impedance: >1013 cmohms
- Output: Two current outputs for conducitivity and temperature
- Current Output Range: 4 to 20 mA(isolated),programmable span
- Current Output Scale: User programmable ,linear
- Maximum Load: 500 ohm / 500V DC
- Control Type: 2 ON/OFF controls
- Relay Output: 5A at 115V AC or 2.5 A at 220V AC, resistive load only
- Display: 128 x 64 graphical LCD with backlight
- Security: 4-dight password
- Power: 115 V AC or 230V AC at 50/60 Hz
- Ambient Temperature: Range From 0 to 50?C
- Weight: 950 grams
- Case: IP 65 ,1/4 DIN case, 148mm depth
