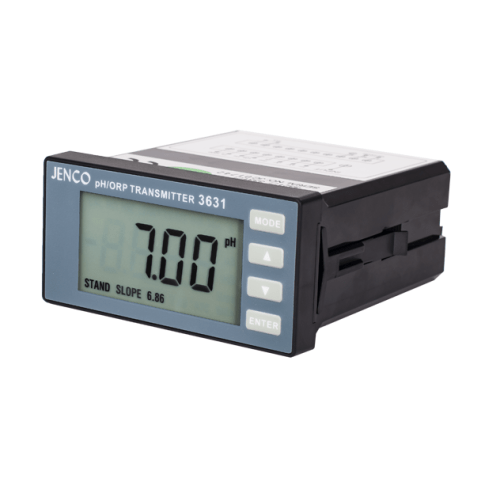

Industrial online pH/ORP/Temp transmitter, 1/8 DIN with LCD display

ORDER ME IN
Product code: IC-3631

Order Me In, Once ordered this item will likely dispatch before the 20th of October 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.

Menu driven, sealed, backlit, pH/mV monitor/transmitter with an isolated and reversible 4-20mA current output for pH and mV. Tinned lead connectors.

Read more | Need help?

$449.00 AUD + GST
 $493.90 AUD Inc. GST

Menu driven, sealed, backlit, pH/mV monitor/transmitter with an isolated and reversible 4-20mA current output for pH and mV. Tinned lead connectors. 1/8 DIN, RoHS compliant, backlit, panel mount pH and temperature transmitter with isolated and reversible 4-20 mA current output for pH or mV.

Features:
- Easy to install 1/8 DIN plastic casing.
- Clear LCD displays pH, mV or temperature with backlight.
- Universal power supply input from 100-240VAC.
- Automatic buffer recognition of US and NIST buffer sets. Calibrated data is stored in memory and ready to for use on power up.
- Automatic or manual temperature compensation.
- Displays absolute and relative ORP.
- Isolated and reversible 4-20mA current output for pH or mV allows it to be used as a proportional output.
- RoHs compliant.

Specifications

- pH Range: -2.00 to 16.00 pH
- pH Resolution: 0.01 pH
- pH Accuracy: +- 0.1 % +- 1 digit
- ORP Range: -1999.9 to 1999.9 mV
- ORP Resolution: 1mV / 0.1mv
- ORP Accuracy: +- 0.1 % +- 1 digit
- Temperature Range: -10.0 to 120.0 C
- Temperature Resolution: 0.1 C
- Temperature Accuracy: +- 0.3 C
- pH buffer recognition: US(4.01,7.00,10.01) or NIST(4.00,6.86,9.18) user selectable
- pH Electrode Offset Recognition: +- 100mV at pH 7.00 /-91.7mV to 108.3mV at pH 6.86
- pH Electrode Slope Recognition: +- 30% at pH 4.00 , 4.01, 9.18 or 10.01
- Temp Compensaton: Auto /manual; -10.0 to 120.0 C(Thermistor , 10K ohm /PT-1000)
- Input impedanceL: >10(exp)13 ohms
- Input Select: User selectable pH or ORP
- Control Type: 2 ON/OFF controls
- Current Output Range: 4 to 20 mA (isolated)
- Scale: Liner
- Maximum Load: 500 ohm
- Isolation Voltage: 500 VDC
- Display: LCD with backlighting
- Power: 100 to 240 VAC at 50/60 Hz
- Ambient Temperature Range: From 0 to 50 C
- Case: 1/8 DIN case , 90mm depth
