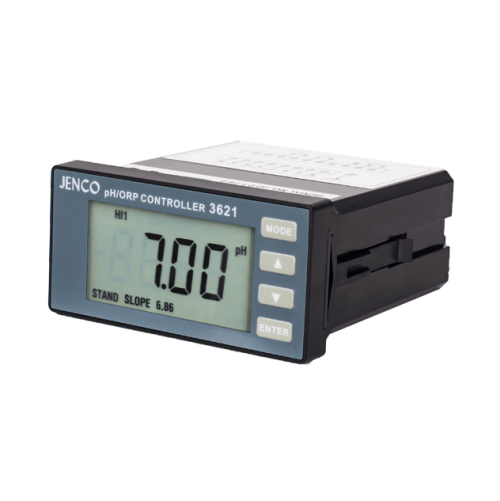

Industrial online pH/ORP/Temp controller, 1/8 DIN with LCD display
ORDER ME IN
Order Me In, Once ordered this item will likely dispatch before the 20th of October 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.
Menu driven, sealed, backlit, pH/mV monitor/controller with 2 relays and tinned lead connectors.
Regular price
$409.70 AUD
+ GST
$450.67 AUD Inc. GST
$450.67 AUD Inc. GST
Menu driven, sealed, backlit, pH/mV monitor/controller with 2 relays and tinned lead connectors.
Features:
- Easy to install 1/8 DIN plastic casing.
- Clear LCD displays pH, mV or temperature with backlight.
- Universal power supply input from 100-240VAC.
- Automatic buffer recognition of US and NIST buffer sets. Calibrated data is stored in memory and ready to for use on power up.
- Automatic or manual temperature compensation.
- Displays absolute and relative ORP.
- Two sets of programmable on/off relays for pH or ORP .
- RoHs compliant.
Specifications
- pH Range: -2.00 to 16.00 pH
- pH Resolution: 0.01 pH
- pH Accuracy: +- 0.1 % +- 1 digit
- ORP Range: -1999.9 to 1999.9 mV
- ORP Resolution: 1mV / 0.1mv
- ORP Accuracy: +- 0.1 % +- 1 digit
- Temperature Range: -10.0 to 120.0 C
- Temperature Resolution: 0.1 C
- Temperature Accuracy: +- 0.3 C
- pH buffer recognition: US(4.01,7.00,10.01) or NIST(4.00,6.86,9.18) user selectable
- pH Electrode Offset Recognition: +- 100mV at pH 7.00 /-91.7mV to 108.3mV at pH 6.86
- pH Electrode Slope Recognition: +- 30% at pH 4.00 , 4.01, 9.18 or 10.01
- Temp Compensaton: Auto /manual; -10.0 to 120.0 C(Thermistor , 10K ohm /PT-1000)
- Input impedanceL: >10(exp)13 ohms
- Input Select: User selectable pH or ORP
- Control Type: 2 ON/OFF controls
- Relay Output: 5A at 115V AC or 2.5A at 220V AC ,resistive load only
- Current Output Range: 4 to 20 mA (isolated)
- Maximum Load: 500 ohm
- Isolation Voltage: 500 VDC
- Display: LCD with backlighting
- Power: 100 to 240 VAC at 50/60 Hz
- Ambient Temperature Range: From 0 to 50 C
- Case: 1/8 DIN case , 90mm depth
