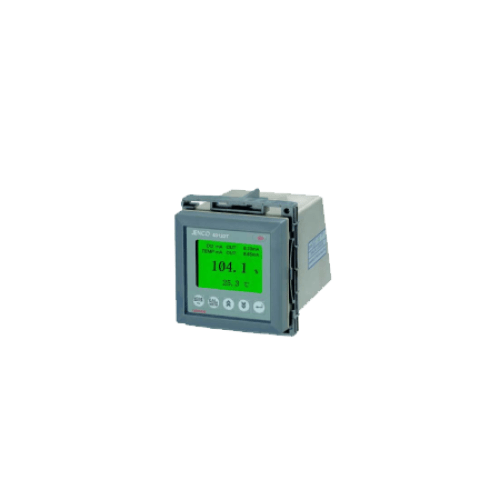

Industrial online DO/Temp controller, 1/4 DIN with graphic display and RS485 interface software

ORDER ME IN
Product code: IC-6312DTF

Order Me In, Once ordered this item will likely dispatch before the 02nd of November 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.

Dissolved Oxygen, Temperature In-line Analyzer. 1/4 DIN, IP65, panel mount pH/DO/Temp analyzer with two sets of 2 wire 4-20mA current output, 2 sets of programmable on/off relay, RS485 output and backlight.

Read more

$1,229.00 AUD + GST
 $1,351.90 AUD Inc. GST

Dissolved Oxygen, Temperature In-line Analyzer. 1/4 DIN, IP65, panel mount pH/DO/Temp analyzer with two sets of 2 wire 4-20mA current output, 2 sets of programmable on/off relay, RS485 output and backlight.

Features:
- Graphic LCD with manual backlight displays dissolved oxygen, temperature, relay status and transmitter current mA output simultaneously.
- Calibration data is stored in memory and is ready for use on power up.
- Two sets of isolated and reversible 4-20 mA current output for dissolved Oxygen and temperature allows it to be used as a proportional output.
- 4 programmable on/off relays: 3 for dissolved oxygen and 1 for temperature.
- RS-485 output for remote access allows multiple units to be connected and ganged together.
- Password protection.
- IP65

Specifications

- DO Range (PPM/PPB): 0.000 to 40.000 ppm/0 to 40000 ppb
- DO Resolution (PPM/PPB): 0.001 ppm/1 ppb
- DO Accuracy (PPM/PPB): ?0.2 % FS
- DO Range (%): 0.0 to 500.0%
- DO Resolution (%): 0.1%
- DO Accuracy (%): ?0.2 % FS
- Temperature Range: -10.0 to 120.0?C
- Temperature Resolution: 0.1?C
- Temperature Accuracy: ?0.2?C
- Salinity Compensation: Manual, 0.0 to 49.9 ppt
- Pressure Compensation: Manual 600 to 4000 mBar
- Temperature Compensatio:n Auto, -10.0 to 80.0?C, 22K ohm NTC
- Output: Two current outputs for dissolved oxygen and temperature
- Current Output Range: 4 to 20 mA(isolated),programmable span
- Current Output Scale: User programmable ,linear
- Maximum Load: 500 ohm
- Isolation Voltage: 500V DC
- Control Type: 4 ON/OFF controls
- Relay Output: 5A at 115V AC or 2.5A at 220V AC, resistive load only
- Display: 128 x 64 graphical LCD with backlight
- Security: 4-dight password
- Power: 115 V AC or 230V AC at 50/60 HZ factory pre-set
- Ambient Temperature Range: From 0 to 50?C
- Weight/Case: 950 grams / IP 65 ,1/4 DIN case, 148 mm depth
