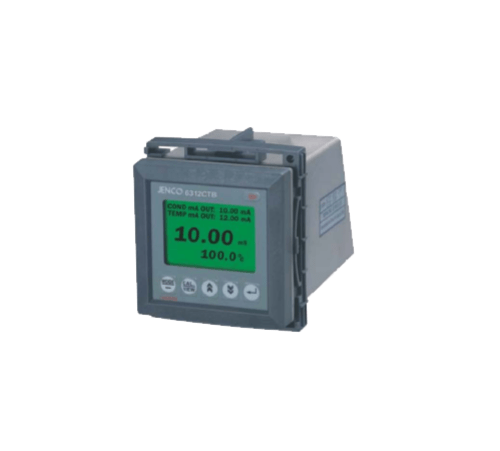

Industrial online Conductivity/Temp controller with RS485 interface software
Backorder Now, once ordered your item will dispatch before the 12th of June 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
Dual current EC analyzer, isolated reversible transmitters, 2 or 4 wire probes, RS-485 and 2 relays.
Regular price
$1,289.80 AUD
+ GST
$1,418.78 AUD Inc. GST
$1,418.78 AUD Inc. GST
Features:
- Graphic LCD with manual backlight displays conductivity/TDS, temperature, relay status and transmitter current mA output simultaneously.
- Convenient one point calibration and calibration data is stored in memory and is ready for use on power up.
- Two sets of Isolated and reversible 4-20 mA current output for conductivity and temperature allows it to be used as a proportional output.
- 2 programmable on/off relays conductivity.
- RS-485 output for remote access allows multiple units to be connected and ganged together.
- Password protection.
Specifications
- Conductivity Range K=0.01-1 cm: 0.000 to 300.9 uS/cm / 0.000 to 150.0 ppm (over 2 ranges)
- Conductivity Resolution K=0.01-1 cm: 0.001 to 0.1 uS/cm / 0.001 to 0.1 ppm (over 2 ranges)
- Conductivity Accuracy K=0.01-1 cm: +- 0.5% FS ?1 digit
- Conductivity Range K=0.1-1 cm: 10.00 uS/cm to 3.000 mS/cm / 5.00 ppm to 1.500 ppt (over 2 ranges)
- Conductivity Resolution K=0.1-1 cm: 0.01 uS/cm to 0.001 mS/cm / 0.001 ppm 0.1 ppt (over 2 ranges)
- Conductivity Accuracy K=0.1-1 cm: +- 0.5% FS +- 1 digit
- Conductivity Range K=1.0-1 cm: 100 uS/cm to 30.00 mS/cm / 50 ppm to 15.00 ppt (over 2 ranges)
- Conductivity Resolution K=1.0-1 cm: 0.1 uS/cm to 0.01 mS/cm / 0.1 ppm to 0.01 ppt (over 2 ranges)
- Conductivity Accuracy K=1.0-1 cm: +-0.5% FS; +- 1digit
- Conductivity Range K=10-1 cm: 1.0 to 300 mS/cm / 0.000 to 150.0 ppt (over 2 ranges)
- Conductivity Resolution K=10-1 cm: 0.001 to 0.1 mS/cm / 0.001 to 0.1 ppt(over 2 ranges)
- Conductivity Accuracy K=10-1 cm: ?0.5% FS ? 1 digit Temperature Range: -10.0 to 120.0 C
- Temperature Resolution: 0.1 C
- Temperature Accuracy: +- 0.3 C
- Temperature Compensation: Manual/Auto -10.0 to 120.0 C (Thermistor,10K ohm at 25.0 C)
- Cell Constant: 0.01, 0.1, 1.0 cm(exp)-1,2 wire
- Reference Temperature: 25.0 C, factory set
- Temperature Coefficient 2.00 or 0.00 %, user selectable
- Control Type/Relay Output 2 ON/OFF controls / 5A at 115V AC or 2.5A at 220V AC, resistive load only
- Current Output Range/Scale: 4 to 20 mA (isolated) / Liner
- Maximum Load: 500 ohm
- Isolation Voltage: 500 VDC
- Display: LCD with backlighting
- Power: 100 to 240V AC at 50/60 Hz
- Ambient Temperature: Range From 0 to 50 C
- Case: 1/8 DIN case, 90mm depth
