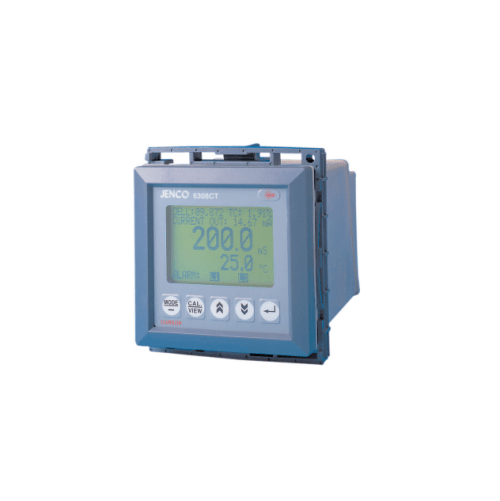

Industrial online Conductivity/TDS/Temp controller, 1/4 DIN with graphic display and RS485 interface software
Backorder Now, once ordered your item will dispatch before the 12th of June 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
Conductivity, TDS, salinity and temperature on-line RS-485 analyzer.With an IP-65 case, and selectable 2 or 4- wire cells. Has programmable reference temperature and coefficients, 4-20 mA output and 2 programmable relays for conductivity and one relay for temperature with an RS-485 interface. Password & ID protected. Graphical display. CE approved. 115/230V AC.
Regular price
$1,089.10 AUD
+ GST
$1,198.01 AUD Inc. GST
$1,198.01 AUD Inc. GST
Features:
- Bumpless calibration
- CE approved
- RS-485 output
- Programmable relays for conductivity
- Reversible and isolated 4 to 20ma output
- Programmable relay for temperature
- Conductivity/temp.measurement & control
- Simultaneous analysis and display for measurement and controls
- User programmable reference temperature temperature coefficient
- Selectable 2-wire or 4-wire cells for long cable length & wide measurement range
Specifications
Conductivity:
- Conductivity Range: 0 uS to 5.0 mS
- Conductivity Resolution 0.01 uS to 1.0 mS
- Conductivity Accuracy: 0.5% ?1 LSD
TDS:
- TDS Range: 0 ppm to 150.0 ppt
- TDS Resolution: 0.01 ppm to 0.1 ppt
- TDS Accuracy: 0.5% ? 1 LSD
Temperature:
- Temperature Range: -10.0 to 120?C
- Temperature Resolution: 0.1 ?C
- Temperature Accuracy: ? 0.1 ?C
- Reference Temperature: 1.5 ?C to 25.0 ?C
- Temperature Coefficient: 0.0 % to 40.0%
Other technical specifications:
- Basic Cell Constant: 0.01,1 and 10.0
- Cell Constant Range: ?30% of basic cell constant
- Output Relays Numbers: Two programmable high or low relays for conductivity
- Control Type: On/off
- Relay Output (Resistive Load Only) 5 amps at 115 VAC, 2.5 amps at 230 VAC
- Relay Set Point Hysteresis: User programmable
- Current Output: Isolated 4 to 20 mA
- Range: Selectable zero, & span
- Accuracy: ?0.02 mA
- Isolated Voltage: 500 VDC
- Maximum Load: 500 ohms
- ATC Sensor Thermistor: 10 kiloohms at 25?C
- Security Protection: 4 digit password
- Keypad: Audio feedback
- Communication: RS-485
- Display Graphic: LCD w/backlight
- Power source: 115/230 VAC, 50/60 Hz
- Dimensions: 1/4 DIN, depth 148 mm
- Weight: 950 gm
