Industrial Grade Automatic Weather Station - IC-SNiP-MSO2-SL

ORDER ME IN
Product code: IC-SNiP-MSO2-SL

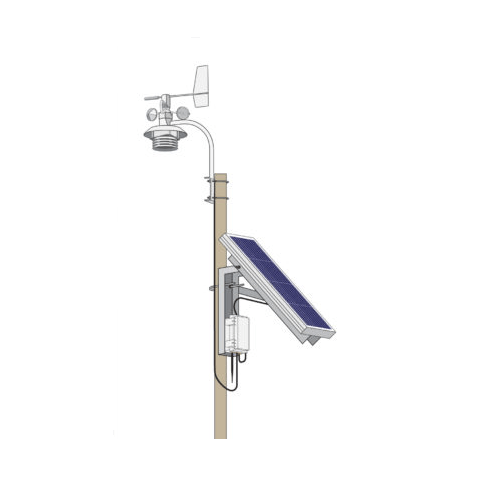

Industrial Grade Automatic Weather Station. Measures wind speed, wind direction, temperature, relative humidity, rainfall and pressure.1 x MSO Weather Station with mounting bracket, 1 x PRP-02, S-NODE with LoRaWAN communications, 13Ah rechargeable li-ion battery, 10W Solar Panel and SPLM7 mounting system for node and solar panel.

Read more | Need help? 3 Hour Business Reply

Features:

The MetOne MSO multi-parameter weather sensor can be combined with the SRG0 stainless steel tipping bucket rain gauge to produce an industrial grade LoRaWAN weather station.

- 13Ah internal lithium-ion rechargeable battery provides power for up to a week with no sun
- 10W solar panel
- Conventional cup and vane measurement of wind speed and direction
- Multi-plate radiation shield to reduce solar radiation heating errors.
- Solid-state relative humidity sensor- Platinum RTD temperature sensor
- Piezo-resistive barometric pressure sensor designed for high accuracy and long term stability
- Stainless steel rain gauge, 0.2mm tips
- Rain Gauge accuracy of +/- 2% at 500 mm/hr

S-NODE

The S-NODE (for Environmental Monitoring) has been designed to support the broad suite of SDI-12 based environmental sensors. The S-NODE can support sensors with higher power requirements; a solar panel can charge either the internal lithium-ion battery or both the node and sensor can be powered by an external 12V system (e.g. battery or mains source).

A decoder suitable for TTN will be provided based upon sensor configuration.

- LoRaWAN low-power long-range connectivity
- Supports the full range of SDI-12 commands, and sensors requiring constant excitation.
- Optional CAT-M1
- Solar rechargeable Lithium-ion or external 12V power options
- Optional Multi-constellation GNSS
- AS923, AU915 and US915 available, with other region plans available upon request.
- Standard IP65 enclosure, optional IP67

PRP-02 Professional Tipping Bucket Rain Gauge

- The PRP-02 is a professional rain gauge sensor with a unique single spoon tipping bucket that is a reliable low cost high quality rain gauge ideal for small weather stations, rainfall measurement, irrigation/soil moisture management and drain water measurement in drip irrigation.
- Lightweight at only 380 grams
- A very accurate and reliable automatic rain gauge, the bucket is made in POM which a more dismissive material and therefore makes dust and dirt not stick so easily on the spoon and maximizes water release. The outer shell is made from STYROSUN which makes the surface easy to clean and the PRP-02's high quality plastic materials and a simple design make for a very long durability (10-20 years)
- It also has only one adjustment screw which makes it easy to recalibrate. All PRP-02 Professional Rain Gauges are manually calibrated, which gives you the guarantee for a very accurate measurement. Accuracy: +/- 2%.
- The electronic printed circuit board with individually tested and high quality reed switches protects against extreme weather conditions such as extreme frost or heat. This includes corrosion from salt water due to the PCB is coated with weather resistant varnish.

MSO Weather Sensor specifications

Wind Speed:

- Range: 0 to 50 m/sec
- Accuracy: +/- 2% of reading
- Resolution: 0.1 m/s
- Threshold: 1m/sec

Wind Direction:

- Range: 0 to 360
- Accuracy: +/- 5
- Resolution: 1.0
- Threshold: 1m/sec

Temperature:

- Range: -40 C to +60 C
- Accuracy: +/- 0.4 C
- Resolution: 0.1 C

Relative Humidity:

- Range: 0 to 100%
- Accuracy: +/- 4% at 25 C

Pressure:

- Range: 500 to 1100 hPa
- Accuracy: +/- 2 hPa
- Resolution: 0.1 hPa
- Resolution: 1.0%

Electrical:

- Measurement Rate Output: 1 Hz
- Signal Output: RS-232C, RS-485, SDI-12 8-36 VDC Supply, 10mA typical at 12VDC, option dependent

Environmental:

- Temperature: -40 C to +60 C
- Humidity: 0 to 100%
