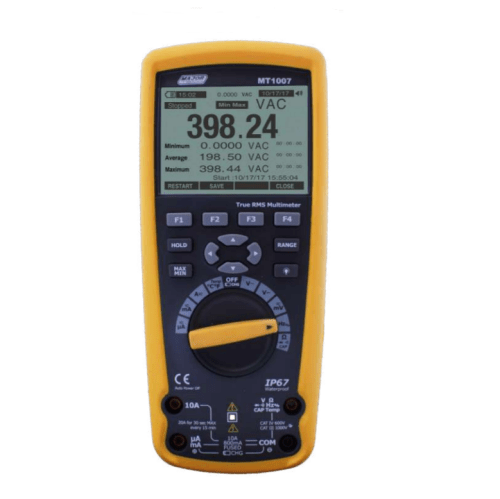

MT1007 Industrial DMM Multimeter

ORDER ME IN
Product code: MT1007

Backorder Now, once ordered your item will dispatch before the 22nd of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

The MT1007 is a professional True RMS Industrial Multimeter accurately measuring AC/DC voltage and current on complex signals or non-linear loads providing fast A/D converting sample time.

-Offers many features that includes Auto Zero and Peak Hold function with calibration mode and measures resistance, continuity, diode, etc.

-Can continually log measurements for up to  20 hours.

-With Bluetooth and IP67 protection.

Read more

$1,165.00 AUD + GST
 $1,281.50 AUD Inc. GST
The MT1007 is a professional True RMS Industrial Multimeter accurately measuring AC/DC voltage and current on complex signals or non-linear loads providing fast A/D converting sample time. This meter gives you 50 000 count resolution with full graphics LCD display with built-in data logging and Trend Capture features. The MT1007 has an Auto Zero and Peak Hold function with calibration mode and measures resistance, continuity, diode, frequency, duty cycle, min/max and average recordings with Time Stamp function to record signal fluctuations.
The MT1007 professional True RMS Industrial Multimeter can trace any interrupted problems of equipment without supervision. This meter plots measurements as a single line to help detect signal anomalies over time and can store up to 10 000 recorded events. The MT1007 can log multiple sessions or log data continuously for over 200 hours, enabling the user to save and name the measurements so it can be recalled at any time.
Features:
- True RMS AC/DC voltage and AC/DC Current measurements
- 50 000 Counts, full graphics LCD display with white backlight
- Measures resistor, diode, capacitance, frequency and duty cycle
- Trend Capture and Bluetooth Interface
- Log multiple sessions or log data continuously for over 200 hours
- Real time clock for automatic time stamping of saved readings
- Min/Max/Average with Time Stamp to record signal fluctuations
- Temperature measurement with K-type temperature probe
- Peak hold function with calibration mode / Auto Zero function
- IP67 waterproof with double moulded plastic housing

Specifications

- DC Voltage: 50mV to 1000V +/- (0.05% +20)
- AC Voltage: 50mV to 1000V +/- (0.3% +25)
- AC + DC TRMS Voltage: 50mV to 1000V +/- (1.0% +25)
- DC Current: 500uA to 10A +/- (0.1% +20)
- AC Current: 500uA to 10A +/- (0.6% + 25)
- AC + DC Current: 500uA to 10A +/- (1.0% + 25)
- Resistance: 50 ohms to 50 megaohms +/- (0.5% +20)
- Frequency: 50Hz to 10MHz +/- (0.01% +10)
- Capacitance: 5nF to 10mF +/- (2.0% +40)
- Temperature: 50 to 1000 C +/- (1.0%+2.5)
- Size: 220 x 96 x 60mm
- Weight: 631g
