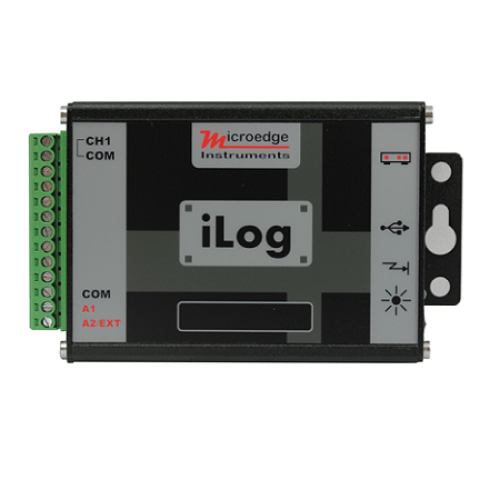

iLog Thermistor Data Logger - IC-iTH-10
Backorder Now, once ordered your item will dispatch before the 19th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
The iLog Thermistor Data Logger is a low cost, high accuracy, battery powered, stand-alone external thermistor + ambient temperature data logger. The logger records up to 4 mega-byte of data and stores them in non-volatile flash memory for later retrieval. It accepts all kinds of thermistors with the resistance value above 2K at 25 C.
Regular price
$649.00 AUD
+ GST
$713.90 AUD Inc. GST
$713.90 AUD Inc. GST
The iLog Thermistor Data Logger is low cost, high accuracy, battery powered, stand-alone external thermistor + ambient temperature data logger. The logger records up to 4 mega-byte of data and stores them in non-volatile flash memory for later retrieval. It accepts all kinds of thermistors with the resistance value above 2K at 25 C.
Its on-board temperature channel provides environment monitoring and temperature compensation.
Its aluminum enclosure makes it excellent in the harshest industrial environment. Plug & Play USB port and versatile custom equation simplify communications
and engineering unit conversion.
16-bit ADC makes it well suited to science and laboratory applications where precise and accurate measurement is critical.
Simply plug the logger to computer's USB port, and the software automatically recognizes it and handles the configuration, downloading, graph viewing and
other functions.
Features:
- 16-bit analog-to-digital converter
- 4 megabyte memory size
- Both USB and serial interfaces with auto baud rate of up to 115200 bps
- Over 12 years of battery life
- Powerful software for configuration, downloading, plotting, analysis and alarm reporting
- Configurable alarm controls/excitation controls
- Wide sampling interval selections (20 milliseconds to 12 hours)
- Rugged aluminum enclosure
Specifications
Sampling interval and logging capacity:
- 1 minute - 727 days
- 10 seconds - 121 days
- 1 second - 12 days
- 100 milliseconds - 28 hours
Inputs:
- Input Connection: Pluggable terminal block for one external channel, excitation controls and alarm outputs
- Channels: One on-board thermistor temperature (-40 C ~ 70 C,-40 F ~ 158 F); One external thermistor channel.
- Resolution: 0.0018%
- Accuracy: 0.2% FSR @ 25 C
Alarms:
- Channel Alarms: Two editable alarm thresholds
- Alarm output: ALARM1 & A2/E terminal strips can be configured as alarm outputs
Alarm-On: MOSFET(N-Channel) switch on
Alarm-Off: MOSFET(N-Channel) switch off
Max Power: 200mA @ 24VDC
- Alarm-On Delay: Programmable 0 - 10 minutes delay with 1-minute increment.
- Alarm Indicator: On-board LED lights in red when in alarm condition.
On-board Memory:
- Size: 4 Mega bytes (2MB readings)
- Data Retention: Over 20 years
Sampling:
- Sampling Interval: 20 milliseconds to 12 hours user selectable (external power supply required if interval less than one second)
- Logging Mode: Stop recording or FIFO when memory is full
- Logging Activation: Programmable instant, start delay or field push button activation.
Communications:
- Interface: USB (Mini-USB-B) (USB-A-mini USB-B Cable included) AUX(RJ11) for direct TTL level communications
- Baud Rate: Auto-detect baud rate from 2400 to 115200 bps on both USB and AUX.
Battery:
- Power: Built-in 3.6V Lithium Battery.
- Battery Life: 12 years based on 1 minute sampling interval.
Physical:
- Material: Aluminum enclosure.
- Dimension: 88 X 64.2 X 24 mm (3.46 X 2.53 X 0.95 inches).
- Weight: 200g
- Mounting: Probe/wall-mount holes for hanging/mounting.
General:
- LED Indicator Tri-Color LED: (can be disabled for power saving)
- Normal Sampling: green when sampling.
- Alarm: red when sampling.
- Low Battery: amber when sampling. Excitation Control: A2/E terminal strip can be configured as excitation control output for driving the power of connected
devices.
- Warm-up delay interval settings: 10 to 240 seconds with 10-second increment. Operating Environment: -40 ~ +70 C (-40 F ~ 158 F), 0 ~ 95% RH non-condensing.
- Clock Accuracy: 1 mintue per month.
- Approvals: CE, FCC
