IDEAL CAT6A Feed-Thru Modular Plugs (50 Pack)
Backorder Now, once ordered your item will dispatch before the 17th of November 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

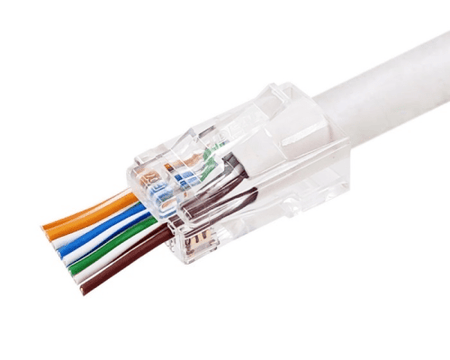

The IDEAL Electrical 85-385 CAT6A/6 RJ-45 Feed-Thru Modular Plugs (Card of 50) are single piece 8P8C RJ-45 connectors designed to work with cable conductors ranging from #22 to #24 AWG solid with an overall diameter of 0.040 in. to 0.048 in. per conductor.
- For insulated conductors of 0.040 in. to 0.048 in. diameter.
- The single piece Feed-Thru design makes it easier to deal with twisting cables with large conductors.
- Card of 50.
Regular price
$69.50 AUD
+ GST
$76.45 AUD Inc. GST
$76.45 AUD Inc. GST
The IDEAL Electrical 85-385 CAT6A/6 RJ-45 Feed-Thru Modular Plugs (Card of 50) are single piece 8P8C RJ-45 connectors designed to work with cable conductors ranging from #22 to #24 AWG solid with an overall diameter of 0.040 in. to 0.048 in. per conductor. The single piece Feed-Thru design simplifies the challenges faced when assembling and terminating twisted pair cables with larger diameter conductors, over 0.041 in., when use of a standard in-line connector is not an option.
A unique staggered conductor hole layout and multi-length contact pins are incorporated to accommodate the larger conductors. The single-piece housing design helps to funnel the conductors through the connector and out of the Feed-Thru end. No precision length trimming, load bars or multi-piece assemblies are required.
Features:
- Feed-Thru modular plug
- For insulated conductors of 0.040 in. to 0.048 in. diameter
- CAT6A/6 shielded cable compatible for above diameter range
- Max. jacket diameter of .320 in.
- Staggered pin and conductor design
- Crimp with FT-45 30-495 tool
- 50 micron gold plated contact area
- UL listed E512035
- Card of 50
