Pyranometer Integral Sensor With Handheld Meter
Order Me In, once ordered this item will likely dispatch before the 02nd of September 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.
$1,111.00 AUD Inc. GST

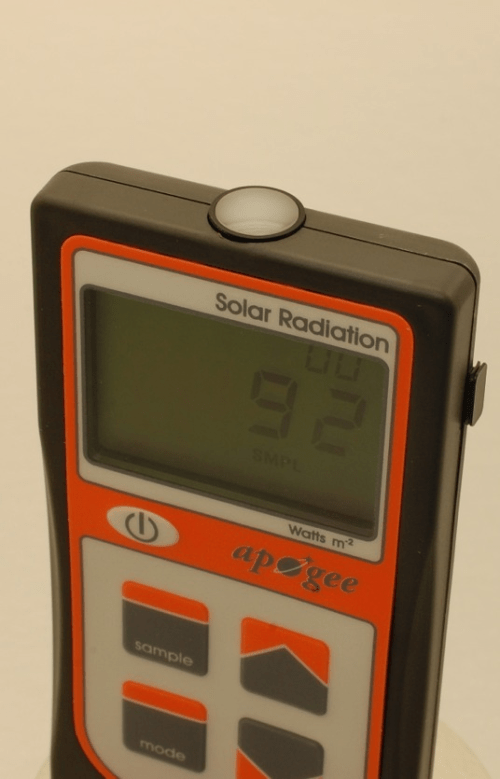

Apogee Pyranometers incorporate a silicon-cell photodiode that measures total shortwave radiation. The MP-100 has a sensor integrated into the top of the housing while the handheld meter displays and stores measurements. Total shortwave radiation is an important component in determining evapo-transipration rates, energy balance, net radiation as well as monitoring solar power panels.
Specifications
Calibration Uncertainty: ± 5 %
Measurement Repeatability: < 1 %
Non-stability (Long-term Drift): < 2 % per year
Non-linearity: < 1 % (up to 1750 W m-2)
Response Time: < 1 ms
Field of View: 180°
Spectral Range: 360 to 1120 nm (wavelengths where response is 10 % of maximum)
Directional (Cosine) Response: ± 5 % at 75° zenith angle
Temperature Response: 0.04 ± 0.04 % per C
Operating Environment: 0 to 50 C
Meter Dimensions: 12.6 cm length, 7.0 cm width, 2.4 cm height
Mass: 150 g
Warranty: 4 years
