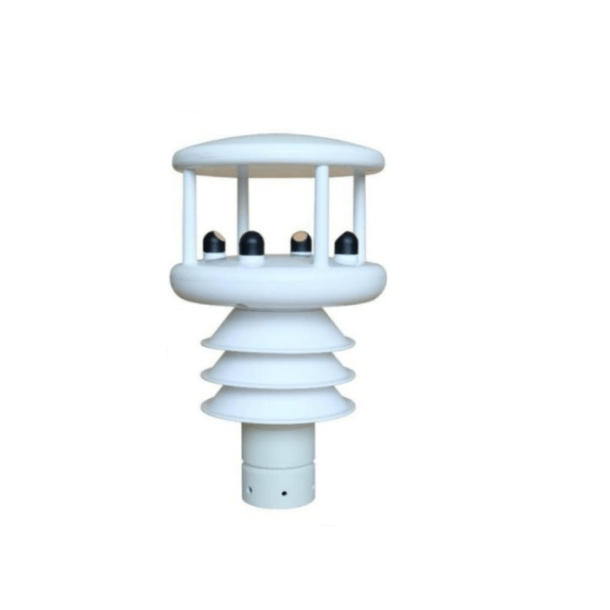

HY-WDS6SE Weather station
ORDER ME IN
Order Me In, once ordered this item will likely dispatch before the 16th of August 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.
The HY-WDS6SE has the same specifications as the HY-WDS2, integrating temperature, humidity, barometric pressure sensor, precipitation and solar radiation, together with wind speed and wind direction.
Regular price
$4,044.00 AUD
+ GST
$4,448.40 AUD Inc. GST
$4,448.40 AUD Inc. GST
Specifications
Wind speed:
- Range: 0 - 60 m/s
- Accuracy: +/- 25%
- Resolution: 0.01 m/s
Wind direction:
- Range: 0 - 359 degrees
- Accuracy: +/- 3 degrees
- Resolution: 1
Temperature:
- Principle: MEMS sensor
- Range: -40 C to +80 C
- Accuracy: 0.2%
- Resolution: 0.1
Humidity:
- Principle: MEMS sensor
- Range: 0-100%RH
- Accuracy: 2%
- Resolution: 0.1
Air Pressure:
- Principle: MEMS sensor
- Range: 150 ? 1100hPa
- Accuracy: +/- 1 hPa
- Resolution: 0.1 hPa
Precipitation(Rain/Hail/Snow):
- Principle: Radar
- Range: 0-100 mm/hr
- Accuracy: 10%
- Resolution: 0.01 mm
Solar Radiation:
- Principle: Silicon
- Range: 0-1750 W/m2
- Accuracy: 5%
- Resolution: 1 W/m2
Sensor:
- Analog output: 2 outputs, 4-20mA. Resistance dependent (Max 500 Ohms)
- Digital output: RS232, RS485 and SDI-12
- Baud rate: 4800-19200
- Protocol: ModBus, NMEA-0183, ASCII
- Output Frequency: Standard: 1Hz ( 1 output per second), Customized: 4Hz( 4 outputs per second)
- Protection Class: IP65
- Operating Temp Range: -40 C to +70 C
- Storage Temp Range: -50 C to +80 C
- Operating Humidity: 0 - 100%
- Power supply: DC5 to 30V
- Power Consumption: 5mA at 12V (Without heating), 0.7mA at 12V (eco-power mode)
- Size/Weight: 144 x 163 mm; 0.38kg
- External Construction: ABS
