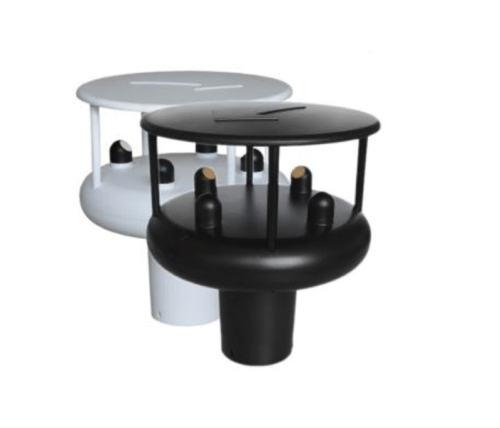

HY-WDS2E Ultrasonic Anemometer
Backorder Now, once ordered your item will dispatch before the 23rd of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
HY-WDS2E Ultrasonic 2D Anemometer is a compact ultrasonic wind speed and wind direction sensor. It is designed to simultaneously measure the 2-dimensional horizontal components of the wind speed and direction. Using ABS shell, Weight is lighter and Structure is more stable. Build-in own intelligent heating module, It can work normally under the cold and freezing weather. Mainly used in highway, meteorology, drilling platform, waterway, port, wind power generation, shipping, and automatic meteorological station, etc.
Regular price
$1,393.00 AUD
+ GST
$1,532.30 AUD Inc. GST
$1,532.30 AUD Inc. GST
Features:
- No moving wearing parts- free of maintenance
- Using engineering plastic shell make it lighter
- Adopts the reflecting type of ultrasonic probe, the structure is more compact
- Using acoustic phase compensation technology, high precipitation
Specifications
Wind speed:
- Range: 0 - 60 m/s
- Accuracy: +/- 3%
- Resolution: 0.01 m/s
Wind direction:
- Range: 0 - 359 degrees
- Accuracy: +/- 3 degrees
- Resolution: 1
Sensor:
- Analog output: 2 outputs, 4-20mA. Resistance dependent (Max 500 Ohms)
- Digital output: RS232, RS485 and SDI-12
- Baud rate: 4800-19200
- Protocol: ModBus, NMEA-0183, ASCII
- Output Frequency: Standard: 1Hz ( 1 output per second) Customized: 4Hz( 4 outputs per second)
- Protection Class: IP65
- Operating Temp Range: -40 C to +70 C
- Storage Temp Range: -50 C to +80 C
- Operating Humidity: 0 - 100%
- Power supply: DC5-30V
- Power Consumption: 5mA at 12V (Without heating) 0.7mA at 12V (eco-power mode)
- Size/Weight: 144 x 163 mm; 0.38kg
- External Construction: ABS
