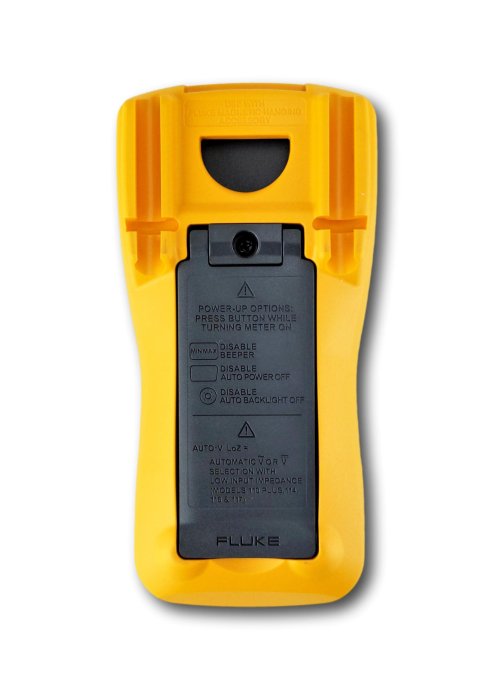

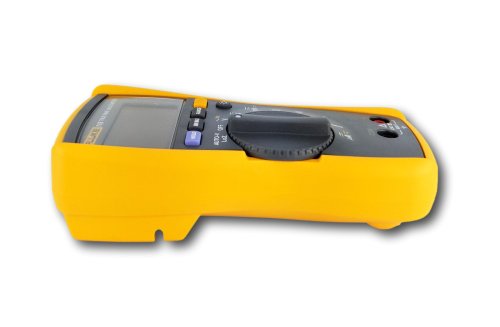

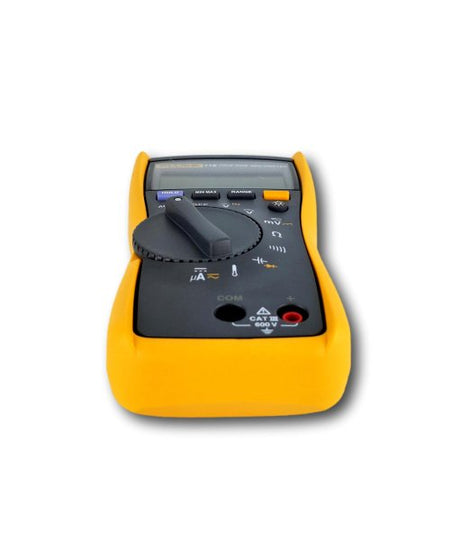

HVAC TRMS MULTIMETER - IC-FLUKE-116
Backorder Now, once ordered your item will dispatch before the 15th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
Compact true-rms meter for HVAC (heating ventilation air conditioning) troubleshooting. The Fluke 116 was specifically designed for the HVAC professional. It has everything needed in an HVAC meter including temperature and microamp measurements to quickly troubleshoot problems with HVAC equipment and flame sensors.
Regular price
$559.70 AUD
+ GST
$615.67 AUD Inc. GST
$615.67 AUD Inc. GST
Features:
Built-in thermometer for HVAC applications
Microamps to test flame sensors
Low input impedance: helps prevent false readings due to ghost voltage
Large white LED backlight to work in poorly lit areas
Resistance, continuity, frequency and capacitance
Min/Max/Average with elapsed time to record signal fluctuations
Compact ergonomic design for one-handed operation
Compatible with optional magnetic hanger
CAT III 600 V safety rated
General Specifications:
Maximum voltage between any terminal and earth ground: 600 V
Surge protection: 6 kV peak per IEC 61010-1 600 V CAT III, Pollution Degree 2
Display: Digital, 6,000 counts, updates 4 per second
Bar graph: 33 segments, updates 32 per second
Operating Temperature: -10 C to + 50 C
Storage Temperature: -40 C to + 60 C
Battery type: 9 volt Alkaline, NEDA 1604A/ IEC 6LR61
Battery Life: 400 hours typical, without backlight
Accuracy Specifications
DC millivolts
Range: 600.0 mV
Resolution: 0.1 mV
Accuracy: ([% of reading] + [counts]): 0.5% + 2
DC volts
Range/Resolution: 6.000 V / 0.001 V
Range/Resolution: 60.00 V / 0.01 V
Range/Resolution: 600.00 V / 0.1 V
Accuracy: ([% of reading] + [counts]): 0.5% + 2
Auto volts
Range: 600.0 V
Resolution: 0.1 V
Accuracy: 2.0 % + 3 (dc, 45 Hz to 500 Hz); 4.0 % + 3 (500 Hz to 1 kHz)
AC millivolts1 true-rms
Range: 600.0 mV
Resolution: 0.1 mV
Accuracy: 1.0 % + 3 (dc, 45 Hz to 500 Hz); 2.0 % + 3 (500 Hz to 1 kHz)
AC volts1 true-rms
Range/Resolution: 6.000 V / 0.001 V
Range/Resolution: 60.00 V / 0.01 V
Range/Resolution: 600.0 V / 0.1 V
Accuracy: 1.0 % + 3 (dc, 45 Hz to 500 Hz); 2.0 % + 3 (500 Hz to 1 kHz)
Continuity
Range: 600 ?
Resolution: 1 ?
Accuracy: Beeper on < 20 ?, off > 250 ?; detects opens or shorts of 500 s or longer.
Ohms
Range/Resolution: 600.0 ? / 0.1 ?
Range/Resolution: 6.000 k? / 0.001 k?
Range/Resolution: 60.00 k? / 0.01 k?
Range/Resolution: 600.0 k? / 0.1 k?
Range/Resolution: 6.000 M? / 0.001 M?
Accuracy: 0.9 % + 1
Range/Resolution: 40.00 M? / 0.01 M?
Accuracy: 1.5 % + 2
Diode Test
Range/Resolution: 2.000 V / 0.001 V
Accuracy: 0.9% + 2
Capacitance
Range/Resolution: 1000 nF / 1 nF
Range/Resolution: 10.00 F / 0.01 F
Range/Resolution: 100.0 F / 0.1 F
Range/Resolution: 9999 F / 1 F
Range/Resolution: 100 F to 1000 F
Accuracy: 1.9% + 2
Range/Resolution: > 1000 F
Accuracy: 5% + 20%
LoZ capacitance
Range: 1 nF to 500 F
Accuracy: 10% + 2 typical
Temperature2 (Type-K thermocouple)
Range/Resolution: -40 C to 400 C / 0.1 C
Accuracy: 1% + 102
Range/Resolution: -40 F to 752 F / 0.2 F
Accuracy: 1% + 182
AC amps true-rms (45 Hz to 500 Hz)
Range/Resolution: 600.0 A / 0.1 A
Accuracy: 1.0% + 2
DC amps
Built-in thermometer for HVAC applications
Microamps to test flame sensors
Low input impedance: helps prevent false readings due to ghost voltage
Large white LED backlight to work in poorly lit areas
Resistance, continuity, frequency and capacitance
Min/Max/Average with elapsed time to record signal fluctuations
Compact ergonomic design for one-handed operation
Compatible with optional magnetic hanger
CAT III 600 V safety rated
General Specifications:
Maximum voltage between any terminal and earth ground: 600 V
Surge protection: 6 kV peak per IEC 61010-1 600 V CAT III, Pollution Degree 2
Display: Digital, 6,000 counts, updates 4 per second
Bar graph: 33 segments, updates 32 per second
Operating Temperature: -10 C to + 50 C
Storage Temperature: -40 C to + 60 C
Battery type: 9 volt Alkaline, NEDA 1604A/ IEC 6LR61
Battery Life: 400 hours typical, without backlight
Accuracy Specifications
DC millivolts
Range: 600.0 mV
Resolution: 0.1 mV
Accuracy: ([% of reading] + [counts]): 0.5% + 2
DC volts
Range/Resolution: 6.000 V / 0.001 V
Range/Resolution: 60.00 V / 0.01 V
Range/Resolution: 600.00 V / 0.1 V
Accuracy: ([% of reading] + [counts]): 0.5% + 2
Auto volts
Range: 600.0 V
Resolution: 0.1 V
Accuracy: 2.0 % + 3 (dc, 45 Hz to 500 Hz); 4.0 % + 3 (500 Hz to 1 kHz)
AC millivolts1 true-rms
Range: 600.0 mV
Resolution: 0.1 mV
Accuracy: 1.0 % + 3 (dc, 45 Hz to 500 Hz); 2.0 % + 3 (500 Hz to 1 kHz)
AC volts1 true-rms
Range/Resolution: 6.000 V / 0.001 V
Range/Resolution: 60.00 V / 0.01 V
Range/Resolution: 600.0 V / 0.1 V
Accuracy: 1.0 % + 3 (dc, 45 Hz to 500 Hz); 2.0 % + 3 (500 Hz to 1 kHz)
Continuity
Range: 600 ?
Resolution: 1 ?
Accuracy: Beeper on < 20 ?, off > 250 ?; detects opens or shorts of 500 s or longer.
Ohms
Range/Resolution: 600.0 ? / 0.1 ?
Range/Resolution: 6.000 k? / 0.001 k?
Range/Resolution: 60.00 k? / 0.01 k?
Range/Resolution: 600.0 k? / 0.1 k?
Range/Resolution: 6.000 M? / 0.001 M?
Accuracy: 0.9 % + 1
Range/Resolution: 40.00 M? / 0.01 M?
Accuracy: 1.5 % + 2
Diode Test
Range/Resolution: 2.000 V / 0.001 V
Accuracy: 0.9% + 2
Capacitance
Range/Resolution: 1000 nF / 1 nF
Range/Resolution: 10.00 F / 0.01 F
Range/Resolution: 100.0 F / 0.1 F
Range/Resolution: 9999 F / 1 F
Range/Resolution: 100 F to 1000 F
Accuracy: 1.9% + 2
Range/Resolution: > 1000 F
Accuracy: 5% + 20%
LoZ capacitance
Range: 1 nF to 500 F
Accuracy: 10% + 2 typical
Temperature2 (Type-K thermocouple)
Range/Resolution: -40 C to 400 C / 0.1 C
Accuracy: 1% + 102
Range/Resolution: -40 F to 752 F / 0.2 F
Accuracy: 1% + 182
AC amps true-rms (45 Hz to 500 Hz)
Range/Resolution: 600.0 A / 0.1 A
Accuracy: 1.0% + 2
DC amps
Range/Resolution: 600.0 A / 0.1 A
Accuracy: 1.0% + 2
Hz (V or A input)2
Range/Resolution: 99.99 Hz / 0.01 Hz
Range/Resolution: 999.99 Hz / 0.1 Hz
Range/Resolution: 9.999 Hz / 0.001 Hz
Range/Resolution: 50.00 Hz / 0.01 Hz
Accuracy: 0.1% + 2
Accuracy: 1.0% + 2
Hz (V or A input)2
Range/Resolution: 99.99 Hz / 0.01 Hz
Range/Resolution: 999.99 Hz / 0.1 Hz
Range/Resolution: 9.999 Hz / 0.001 Hz
Range/Resolution: 50.00 Hz / 0.01 Hz
Accuracy: 0.1% + 2
