Field Piece

HVAC-R System Analyser & Wireless Logger

DISCONTINUED
Product code: IC-HG3

Unfortunately, the HG3 has been discontinued, check out our other HVAC Wireless Loggers for more alternatives.

The HVAC-R System Analyser & Wireless Logger is a measurement and data logging system for HVAC systems that allows users to receive data in-real time and use air flow tests automatically. Includes temperature accessory head and wet and dry bulb thermocouples.

Read more

Unfortunately, the HG3 has been discontinued, check out our other HVAC Wireless Loggers for more alternatives.


Additional accessory heads maybe required for this product

The HG3 holds up to 200 tests on its internal memory, so you can easily show your customers what's going on with their system, and what the recommended fixes are. You can even have them review the screen with you in real-time while you're receiving measurement data wirelessly.

Attach any Fieldpiece Accessory Head to the ET2W to view or log measurements on the HG3 in real-time. The HG3 has the capability to wirelessly and simultaneously read up to 12 wireless signals. A 13th accessory head can be attached directly to the HG3 to give you the ability to record 13 parameters at one time

In addition, all tests can be downloaded to a personal computer so you can not only print out your tests results for your customers, but you can also store all the data to reference the next time you are called to the job site.

You can also easily and accurately perform Air Flow tests because the HG3 does your calculations for your, automatically. The HG3 will calculate the average, max, and min air velocity for up to 13 grilles, then calculate the Total Return and Total Supply for the entire system. Test procedures are included for Superheat, Subcooling, Combustion Analysis, Target Evap Exit Temperature (temperature drop across the evaporator coil), CFM (air balancing), CheckMe! Evaluation are built into the HVAC Guide to streamline each test.
The HVAC Guide System Analyzer also has a data logging switch position to record up to 13 measurements at one time. With the Display switch position view one parameter by connecting any Fieldpiece Accessory Heads directly or wirelessly.

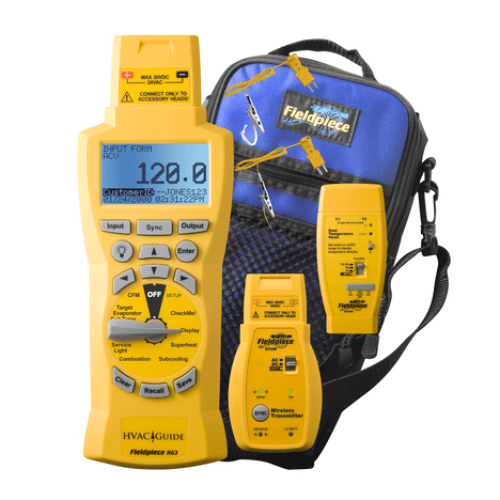

Includes:

- Wireless HVAC Guide - HG3
- Wireless Handle - ET2W
- Dual Temp Accessory Head - ATH4
- Dry Bulb Thermocouple - ATA1
- Wet Bulb Thermocouple - ATWB1
- CD to Download Software
- Computer Cable to Transfer Data
- Nylon Carrying Case - ANC8

Features:
- 12 wireless measurements
- More accurate diagnosis w/live data
- Saves time
- Monitor system while adjusting
- Minimizes call-backs
- Automatic Air Volume calculations in Litres\sec
- Works with any accessory head
