Humidity/Temp Logger, USB, Free Mac/PC Software - Minnow-1.0TH
Humidity/Temp Logger, USB, Free Mac/PC Software - Minnow-1.0TH
DISCONTINUED
Product code: Minnow-1.0TH
Unfortunately, the Minnow-1.0TH is currently unavailable. In the mean time, please check out our other Humidity Loggers for more options.
The Minnow 1.0TH is great value considering its accuracy, resolution, size and price. With an uncalibrated temperature accuracy better than +/- 0.3C, humidity accuracy of 2.0%, 130,000 total samples (65,000 of temp and hum combined) and an incredible resolution of 0.01 for both parameters the Minnow is a great choice. With 2 Year Extended Warranty!
Suppose for example you would like to transport some delicate or fragile cargo from one location to another. By attachment of a Minnow logger one can record temperature and humidity conditions during the journey. At the destination you can then extract the logged data using a very simple PC application and see graphically or in raw data format the changes in environment over time.
The Minnow offers accurate and repeatable logging for temperature and relative humidity. Temperature is measured to an accuracy of +/- -0.3C over the range +5C to +60C and +/-2.0C over the full range -30C to +80C. Relative humidity is measured to an accuracy of +/-2.0% over 20% to 80% humidity range and +/-4.0% over 0% to 100%. Both temperature and relative humidity are logged at a user configurable logging rate which can be set in a PC application program.
The Minnow logger comes with a very easy to use PC application. The application is used for configuration of the logger, extraction of logger data, graphically viewing of logging data, spread sheet analysis of logging data and saving of logging data to file (typically in comma separated value CSV file format) for third party applications such as Microsoft Excel. The graphical user interface is completely intuitive in terms of configuring new devices and extracting logging data from a field device.
The Minnow logger comes with a very easy to use PC application. The application is used for configuration of the logger, extraction of logger data, graphically viewing of logging data, spread sheet analysis of logging data and saving of logging data to file (typically in comma separated value CSV file format) for third party applications such as Microsoft Excel. The graphical user interface is completely intuitive in terms of configuring new devices and extracting logging data from a field device.

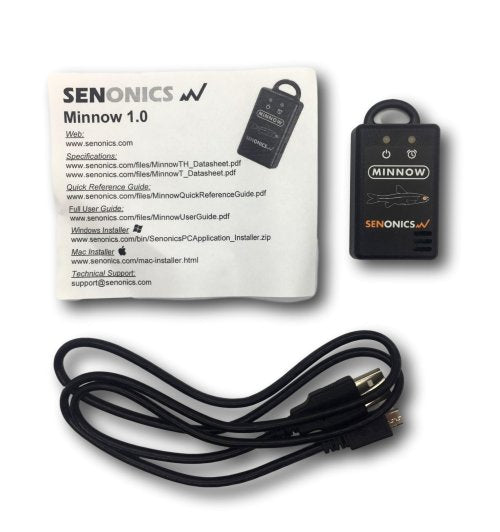

This logger comes with FREE software and download cable. Everything you need to get logging. >>>
Download the software for free here <<<
2 Year Warranty (1 Year Manufacturer Warranty + Bonus 1 Year Instrument Choice Warranty)
Minnow-1.0TH Features
- Accurate alarm system: When you would like to guarantee that items are transported within particular environmental limits then one can also set operating ranges above or below which light indicators will be activated so that the user can become aware that the desired transportation conditions have been exceeded
- Logging Storage: The Minnow logger is equipped with the largest logging memory when compared with comparable portable logging devices currently available. The Minnow logger has provision for an impressive 65520 storage items each of which is a time-stamped recording of temperature and humidity.
- Device ID & Data Security: The Minnow logger enables each device to have a 16 character name. This can be helpful when the user has multiple logging devices and one would like to distinguish between them for example based on location. Logging data may also be password protected so that data may only be retrieved from the device by supplying a user supplied password.

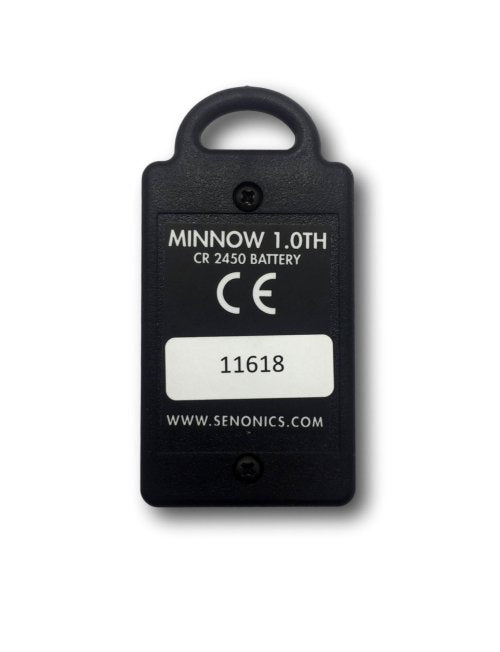

- Long Battery Life: The Minnow logger runs from a single CR2450 coin cell better available from supermarkets or online battery stores over the internet. The logger can log temperature and relative humidity for up to 4 years.

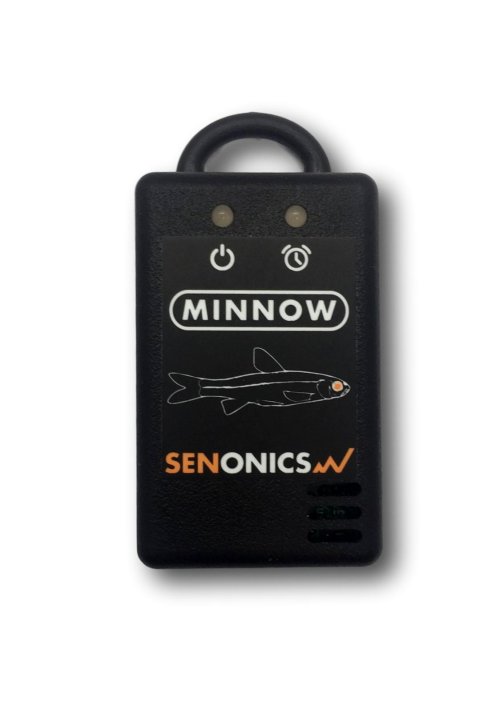

- Look and Feel: The Minnow logger design is compact, elegant and simple. Care has been taken to ensure the design is stylish and only makes available buttons, indicators and connectors which are intuitive and uncomplicated. The Minnow logger has a handy key ring attachment for easy transportation.
- Moisture Resistance: Every logger circuit board assembly is epoxy coated to protect the device from wet and condensing enviroments.
- Senonics Guarantee: Senonics logger products are developed by world class engineering teams situated in Denmark and United States. Our engineers are very proud of the Minnow logger range which is marked by their special design philosophy of ensuring both a feature rich product but simple for the end user. Our designers have a well-deserved reputation for high quality product design ensuring that your logging device will both last the years and exceed your logging requirements!
Specifications
Temperature Range
|
30C to 80C
|
Temperature Resolution
|
0.01 C
|
Temperature Accuracy
|
+0.3C (+5C to 60C )
|
Cal Accuracy
|
+0.1C (+20C of Cal Temp)
|
Relative Humidity Range
|
0% to 100%
|
Relative Humidity Accutacy (20% to 80%)
|
+/- 2%
|
Relative Humidity Resolution
|
0.01%
|
Alarms
|
High and Low alarms for temperature and humidity sensors / Ability to enable alarms on any sensor(s) / Dedicated Alarm LED
|
Connections
|
USB Micro-B to PC (included)
|
Power
|
Userreplaceable CR2450 battery, Over 4 year battery life while logging. Bypass mode: Unitis powered from USB when connected to PC to conserve the battery
|
Logger Identifier
|
16 characters
|
Logger Password Protection
|
Yes
|
Storage
|
65,520 samples of two channels
|
Real Time Clock
|
Time automatically synced to PC or Phone with battery backup. Also continues to keep time when off; Accuracy: 0.50 sec/day (about 3min/year)
|
