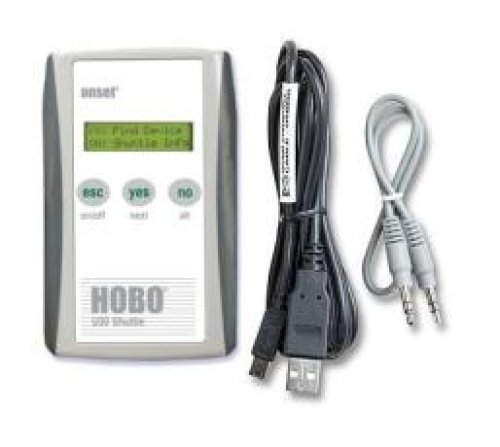

Hobo U30 Shuttle Data Transporter
Bonus Additional 1 Year Instrument Choice Warranty!
The HOBO U-DT-2 U30 Shuttle Data Transporter provides convenient in-field data offload and relaunch of HOBO U30-NRC systems and HOBO Weather Stations (H21), Micro Stations, and HOBO Energy Logger Pro systems (H22). The U30 Shuttle's 2 x 16-character display shows current readings (for selected loggers), and logger status.
Features
- Reads out data from systems in the field for transfer to a host computer.
- Optionally relaunches the logger; synchronizes the loggers clock with the shuttle clock and (in most cases) sets logging to begin at the next interval.
- Preserves data in nonvolatile memory, even if batteries are depleted.
- Displays logger status, including memory, battery level, and sensor readings.
- Displays its own status, including clock, memory, and battery level.
- Lets you change the batteries in the field without resetting the clock.
- Allows you to test individual smart sensors.
Requirements
- USB cable (provided); compatible logger with appropriate cable and/or base station
- U-DT-2: HOBOware 2.6 or greater
Compatibility
- HOBO U30 series systems, HOBO Weather Stations and Micro
- Stations (H21), and HOBO Energy Logger Pro (H22)
Firmware upgrades
Available on the Onset website as needed to provide compatibility with future supported logger models
Specifications
- Operating temperature: 0 to 50C (32 to 122F)
- Storage temperature: -10 to 50C (14 to 122F)
- Time accuracy: 1 minute per month at 25C (77F); see Plot A
- Logger-to-shuttle transfer speed: USB 64K in approximately 30 seconds / Serial: 512K in approximately 60 seconds
- Shuttle-to-host transfer speed: Full shuttle offload (4 MB) to host computer in 3 to 5 minutes, depending on computer
- Data capacity (full loggers): 4 MB (minus 64 KB for shuttle information): enough for readouts of 512K loggers
- Idle timeout Shuttle powers down after two minutes of idle time, except when actively communicating with HOBOware (see HOBOware Users Guide for details) or changing logger batteries (10 minutes)
- Ports: RJ-12 jack for communicating with smart sensors; mini-B full speed USB port for communicating with host
computer; full speed USB port for communicating with U-Series loggers and base stations; high speed serial port
for communicating with serial loggers. Shuttle communicates with only one device at a time.
- Batteries: Main: 2 AA alkaline batteries / Clock backup: 1 CR1225 lithium battery (3 V)
- Battery life: Main: One year or approximately 50 complete memory fills, typical use / Clock backup: 10 years typical use (with main batteries installed)
- Weight: 153 g (5.4 oz)
- Dimensions: 11.0 x 6.9 x 2.7 cm (4.35 x 2.70 x 1.05 inches). Case materials ABS case with urethane rubber grips, polycarbonate label
