Hobo RX2104 Remote Tank Level Station (30 min logging/6 hr uploads)
Order now and the extra items will likely dispatch before the 14th Nov 2025. Call 1300 737 871 (NZ 0800 737 871) to confirm.
$3,917.10 AUD Inc. GST

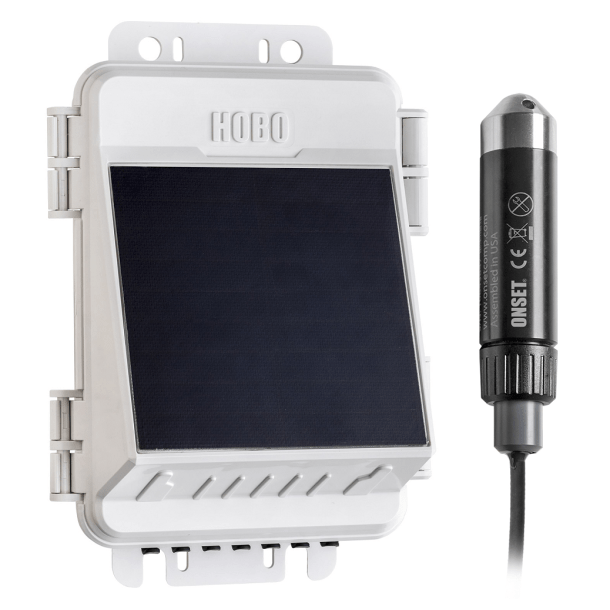

The new cellular, web-enabled HOBO MicroRX station is partnered with Onsets own water level sensor to deliver water level monitoring data to cloud-based HOBOlink software.
Key Advantages
- Eliminate manual monitoring of tank levels.
- Act quickly in response to alarms triggered for low water levels, delivered by email or SMS.
- Deploy in harsh conditions with the tough, compact station
- Monitor multiple environmental parameters with the flexibility of Onsets suite of smart sensors
What measurements does this data logger support?
The RX2100 data loggers have a wide variety of optional sensors available and can support the following measurements:
Absolute Pressure, 4-20mA, AC Current, AC Voltage, Amp Hour (Ah), Barometric Pressure, DC Voltage, Evapotranspiration, Kilowatt Hours (kWh), Leaf Wetness, Light Intensity, PAR, Power Factor (PF), Pulse Input, Rainfall, Relative Humidity, Soil Moisture, Temperature, Volt-Amp Reactive hour, Volt-Amps (VA), Water Level, Watt Hours (Wh), Watts (W) and Wind
HOBOlink
HOBOlink, Onset's cloud based software platform, allows you to access your data anywhere on your mobile device or desktop. Customizable dashboards and easily-configurable alarms make your field data more accessible and meaningful. HOBOlink can send an email or a text/SMS message to your phone when conditions exceed set thresholds.
Includes

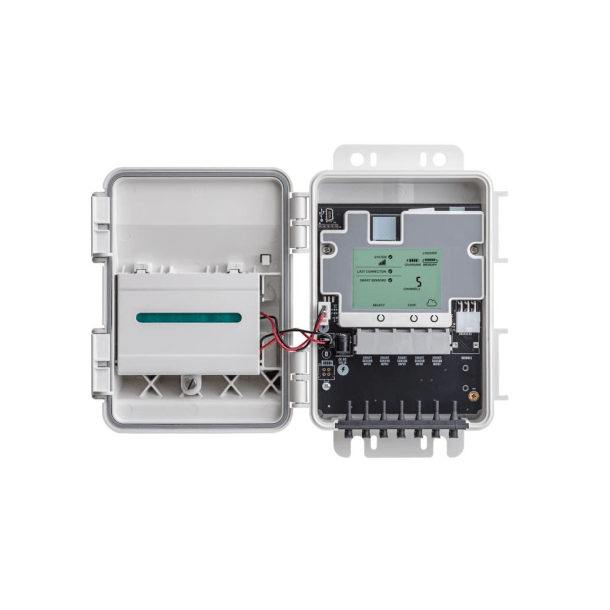

- 1 x MicroRX 2104 cellular data logger with 5 smart inputs and built-in Solar Panel (Learn More)

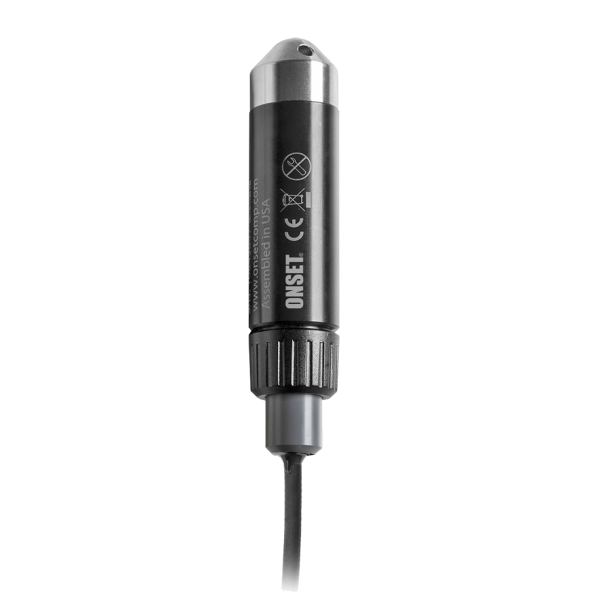

- 1 x 4 Meter Water Level Sensor with 5 Metre Kevlar Cable
- 1 x SIM Plan for 12 Months
- Web Portal to manage your system remotely, (30min logging, 6hr uploads)
- SMS and Email Messages on alarm
Specifications
Water level sensor specifications
- Operation Range: 0 to 207 kPa (0 to 30 psia); approximately 0 to 9 m (0 to 30 ft) of water depth at sea level, or 0 to 12 m (0 to 40 ft) of water at 3,000 m (10,000 ft) of altitude
- Factory Calibrated Range: 69 to 207 kPa (10 to 30 psia), 0 to 40 C (32 to 104 F)
- Burst Pressure: 310 kPa (45 psia) or 18 m (60 ft) depth
- Water Level Accuracy: Typical error: +/- 0.05% FS, 0.5 cm (0.015 ft) water; Maximum error: +/- 0.1% FS, 1.0 cm (0.03 ft) water
- Raw Pressure Accuracy: +/- 0.3% FS, 0.62 kPa (0.09 psi) maximum error
Data logger specifications
- Smart Sensor Connectors: 5
- Smart Sensor Network Cable Length: 100 m (328 ft) maximum
- Smart Sensor Data Channels: Maximum of 15 (some smart sensors use more than one data channel; see sensor manual for details)
- Logging Rate: 1 minute to 18 hours
- Time Accuracy: +/- 8 seconds per month in 0 to 40 C (32 to 104 F) range; +/- 30 seconds per month in -40 to 60 C (-40 to 140 F) range
- Battery Type/Power Source: Integrated 1.7 watt solar panel and NiMH rechargeable battery pack; optional AC power adapter (P-AC-1) or external solar panel (SOLAR-xW) can be used in place of integrated solar panel
- Memory: 16 MB, 1 million measurements, continuous logging
- Alarm Notification Latency: Logging interval plus 2 to 4 minutes, typical
- Enclosure Access: Hinged door secured by two latches with eyelets for use with user-supplied padlocks
- LCD: LCD is visible from 0 to 50 C (32 to 122 F); the LCD may react slowly or go blank in temperatures outside this range
- Materials: Outer enclosure: Polycarbonate/PBT blend with brass inserts; Interior: Polycarbonate/PBT; Gasket: Silicone foam; Cable channel: Santoprene TPE; U-Bolts (not included): Steel with zinc dichromate finish
- Dimensions: 19.95 x 13.68 x 7.49 cm (7.85 x 5.39 x 2.95 in.)
- Weight: 678 g (23.9 oz)
Battery life specifications
Typical 3 to 5 years when operated in the temperature range -20 to 40 C (-4 to 104 F); operation outside this range will reduce the battery service life.
Maximum connection rates with built-in solar panel, in full sun:
- 10 minute connections year round for latitudes less than +/- 40 degrees
- 10 minute connections through three seasons in other regions, reduced to 30 minute connections in winter
Maximum connection rates with external 5W or 15W solar panels:
- 10 minute connections year round, in full sun
- Connection rate with external solar panels may be less if deployed in partial sun
Battery life without solar recharging, with hourly connections and 1 minute logging: 2 months
