HOBO MicroRX Station (Battery Powered) - RX2101-SP-611-SIM
ORDER ME IN
Backorder Now, once ordered your item will dispatch before the 31st of July 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

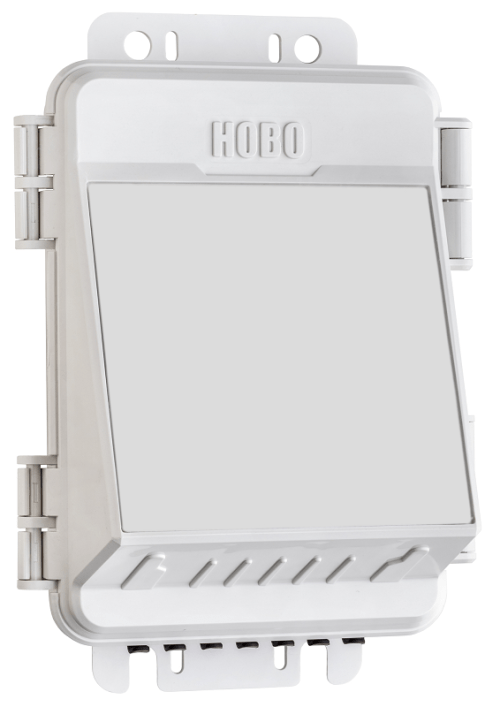

The new web-enabled HOBO MicroRX station is an easy-to-deploy, low-cost cellular field monitoring solution. With a compact size and rugged design, the MicroRX Station offers long-term, reliable environmental monitoring. Configurable station-side alarms provide immediate notification of critical conditions, and Onset's cloud-based HOBOlink platform makes it easy to view, access, and share your data.
Regular price
$1,915.00 AUD
+ GST
$2,106.50 AUD Inc. GST
$2,106.50 AUD Inc. GST
The new web-enabled HOBO MicroRX station is an easy-to-deploy, low-cost cellular field monitoring solution. With a compact size and rugged design, the MicroRX Station offers long-term, reliable environmental monitoring. Configurable station-side alarms provide immediate notification of critical conditions, and Onset's cloud-based HOBOlink platform makes it easy to view, access, and share your data.
Key advantages
- Optional integrated solar panel for easy deployment
- Battery-powered option for covered or shaded deployment locations
- Wide range of research-grade plug-and-play sensors
- Optional water level sensor input, and water flow conversion
- Station-side alarms include new accumulated rainfall alarm
- Real-time monitoring with up to 10-minute connection rates via 4G cellular
- Battery-powered option for covered or shaded deployment locations
- Wide range of research-grade plug-and-play sensors
- Optional water level sensor input, and water flow conversion
- Station-side alarms include new accumulated rainfall alarm
- Real-time monitoring with up to 10-minute connection rates via 4G cellular
The compact and rugged HOBO MicroRX Station is an easy-to-deploy, low-cost cellular solution for long-term, reliable field monitoring. Two power source options are available: a solar panel for extended deployments, and user-replaceable batteries for flexible mounting in covered or protected locations. The station includes inputs for up to five research-grade plug-and-play sensors, and can be ordered with an additional water level sensor input with integrated flow conversion.
Configurable station-side alarms trigger immediate notifications of critical conditions, and the cloud-based HOBOlink platform makes it easy to view, access, and share data.
2 Years Warranty (1 Year Manufacturer Warranty + Bonus 1 Year Instrument Choice Warranty)
Features
- Compact size for easy deployment
- Robust, weatherproof IP66/NEMA 4X enclosure

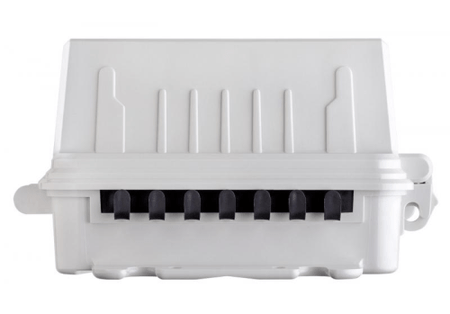

- Inputs for five plug-and-play smart sensors
- Built-in LCD confirms proper setup and operation
- Integrated mounting tabs for use with screws, zip ties, or U-bolts
- Station-side alarms, including water flow and accumulated rainfall
- Up to 10-minute connection rates via 4G cellular data plans
- Cloud-based monitoring and data access through HOBOlink
- Two power options: User-replaceable AA lithium batteries or Integrated 1.7W solar panel with rechargeable battery pack
Long-Term, Reliable Field Monitoring
- With a compact and rugged design, the MicroRX Station provides long-term reliable performance, even in harsh conditions.
- Rugged and reliable microclimate monitoring in harsh field conditions, with access to your data from anywhere.
- Field condition monitoring and data collection to help save water, enhance crop quality, and increase yields.
- Critical field condition monitoring for optimal irrigation, pest control, and harvest timing decisions.
- Water Use Tracking: Optional water level sensors and integrated flow calculations for automated water use tracking and alert notifications.
- Rugged and reliable microclimate monitoring in harsh field conditions, with access to your data from anywhere.
- Field condition monitoring and data collection to help save water, enhance crop quality, and increase yields.
- Critical field condition monitoring for optimal irrigation, pest control, and harvest timing decisions.
- Water Use Tracking: Optional water level sensors and integrated flow calculations for automated water use tracking and alert notifications.
Powerful Access to your Data in Real Time
Access your field monitoring data anywhere on your desktop or mobile device with Onsets powerful cloud-based HOBOlink software. Customizable dashboards and easily-configurable alarms make your field data more accessible and meaningful.
Includes
- HOBO RX2100 MicroRX Station
- Grease packet
- Cable ties
- Screws and washers
- Six AA lithium batteries
- Grease packet
- Cable ties
- Screws and washers
- Six AA lithium batteries
Supports the following measurements
- Absolute Pressure
- 4-20mA
- AC Current
- AC Voltage
- Amp Hour (Ah)
- Barometric Pressure
- DC Voltage
- Evapotranspiration
- Kilowatt Hours (kWh)
- Leaf Wetness
- Light Intensity
- PAR
- Power Factor (PF)
- Pulse Input
- Rainfall
- Relative Humidity
- Soil Moisture
- Temperature
- Volt-Amp Reactive hour
- Volt-Amps (VA)
- Water Level
- Watt Hours (Wh)
- Watts (W)
- Wind
Specifications
- Operating range (RX2101): -40 to 60 C
- Smart Sensor Connectors: 5
- Smart Sensor Network Cable Length: 100 m maximum
- Smart Sensor Data Channels: Maximum of 15 (some smart sensors use more than one data channel; see sensor manual for details)
- Logging Rate: 1 minute to 18 hours
- Time Accuracy: +/- 8 seconds per month in 0 to 40 C range; +/- 30 seconds per month in -40 to 60 C range
- Memory: 16 MB, 1 million measurements, continuous logging
- Alarm Notification Latency: Logging interval plus 2?4 minutes, typical
- Enclosure Access: Hinged door secured by two latches with eyelets for use with user-supplied padlocks
- LCD: LCD is visible from 0 to 50 C; the LCD may react slowly or go blank in temperatures outside this range
- Dimensions: 19.95 x 13.68 x 7.49 cm
- Weight: 678 g (23.9 oz)
- Mounting: Optional U-bolts are compatible with masts up to 4.14 cm mast diameter; can also be mounted with zip ties or mounted to a flat surface with screws
- Environmental Rating: Weatherproof enclosure, NEMA 4X and IP66 (requires proper installation of cable channel system)
Materials
- Outer enclosure: Polycarbonate/PBT blend with brass inserts
- Interior: Polycarbonate/PBT
- Gasket: Silicone foam
- Cable channel: Santoprene TPE
- U-Bolts (not included): Steel with zinc dichromate finish
Power
- Battery life with daily connections: 1 year with 1 minute logging
- Battery life with hourly connections and 1 minute logging: 1 year with 1 minute logging
