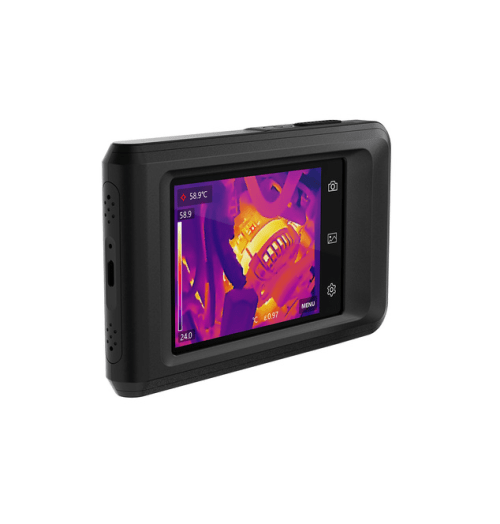

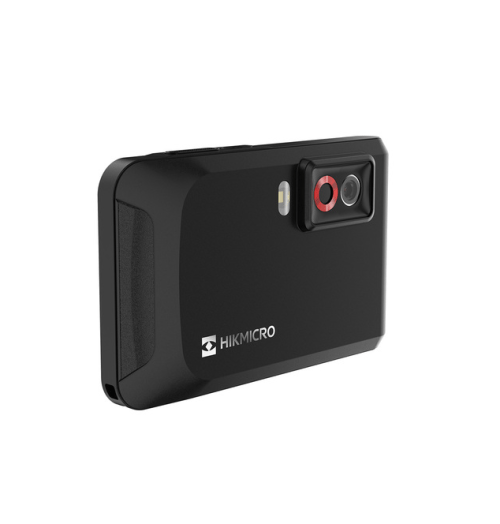

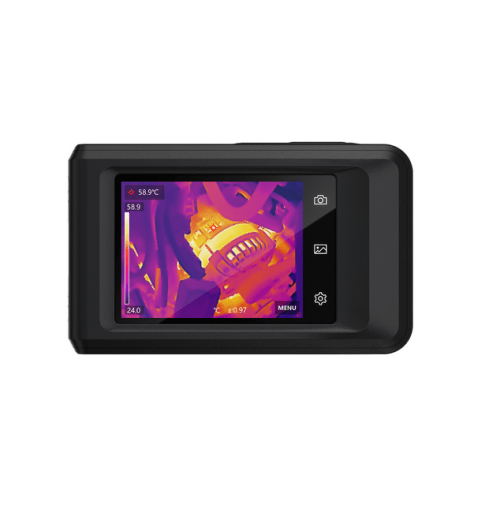

HIKMICRO Pocket2 Handheld Thermal Camera

1 In Stock
Product code: HIKMICRO-Pocket2

The HIKMICRO Pocket2 is equipped with a high-resolution HIKMICRO VOx detector, an 8 MP optical camera, and a 3.5" LCD touch screen. It helps you quickly and efficiently locate the hidden problems and accurately measure the temperatures of faults.

-Wide temperature range of -20°C to 400°C.

-Connects to WiFi to share images in real time.

Read more

$1,000.00 AUD + GST
 $1,100.00 AUD Inc. GST
HIKMICRO Pocket Series is equipped with a high-resolution HIKMICRO VOx detector, an 8 MP optical camera, and a 3.5 inch LCD touch screen. It helps you quickly and efficiently locate the hidden problems and accurately measure the temperatures of faults. The wide temperature range of -20 to 400 C is ideal for building inspection, HVAC, electrical, and mechanical equipment maintenance. The 25 Hz frame rate keeps up with fast inspections, and the Wi-Fi function allows the Pocket to share images in real-time. The Pocket Series is a powerful thermography tool in your pocket, so it is always there whenever you need it.
Features:
- Thermal resolution: 256 192 (49, 152 pixels), NETD: less than 40 mK (at 25 C, F# = 1.0)
- Accurately measure temperature from -20 to 400 C
- Accuracy: Max. (+/- 2 C, +/- 2%)
- 25 Hz image frequency
- Thermal, fusion, PIP, and optical modes, 8 MP optical camera
- Manual, automatic, and 1-Tap level and span
- High temperature alarm
- Built-in 16 GB memory
- LED work light
- 1.0x to 4.0x continuous digital zoom
- Up to 4 hours continuous running

Specifications

- IR Resolution: 256 x 192 (49, 152 pixels)
- NETD: < 0.04 C (40 mK) at 25 C Ambient Temperature, F#=1.0
- Field of View: 50.0 H x 37.2 V
- Display: 640 x 480 Resolution, 3.5 inch LCD Touch Screen
- Object Temperature Range: -20 to 400 C
- Accuracy: Max (+/- 2 C +/- 2%), for ambient temperature 15 to 35 C and object temperature above 0C (32F)
- WI-FI: 802.11 b/g/n (2.4 GHz, 5 GHz)
- Visible image resolution: Configurable: 2 MP, 5 MP, 8 MP
- Focus: Fixed
- IFOV (Spatial resolution): 3.43 mrad
- Image frequency: 25 Hz
- Image modes: Thermal / Optical / Fusion / PIP
-Protection level: IP54
- Drop test height: 2 m
