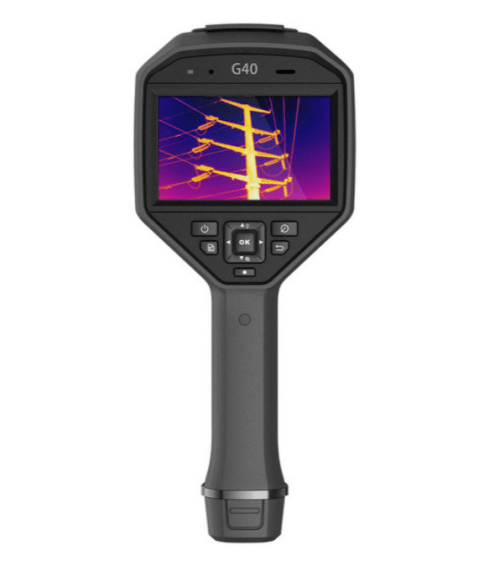

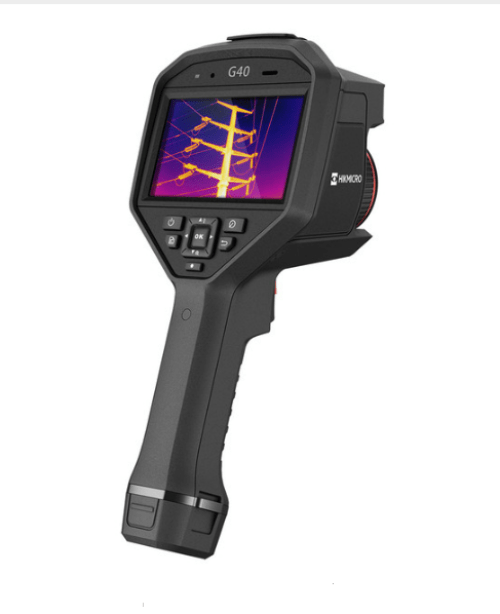

HIKMICRO G40 Handheld Thermal Camera

DISCONTINUED
Product code: HIKMICRO-G40

Unfortunately, the HIKMICRO-G40 has been discontinued, check out our other Thermal Cameras for more options

The HIKMICRO-G40 is a professional, ultra-high resolution,  wireless thermal camera with Bluetooth designed to find invisible faults with a wide measurement range and produces detailed images. With built-in laser distance meter and software for analysis.

-Wide measurement range: -20 to 550 C.

-Supports up to 480 x 360 thermal resolution and 800 x 480 display resolution.

-Includes the HIKMICRO Analyzer software.

Read more

The HIKMICRO G40 handheld camera is specially designed for precise temperature measurement with ultra-high resolution thermal images. Its equipped with a 480 x 360 resolution HIKMICRO thermal detector and a 8MP resolution optical detector. It helps the staff to quickly find the high temperature targets in the environment. Meanwhile it provides assistant decision and ensures safety. The device is mainly applied to various industries, such as substation, petrochemical plant, and machining factory, etc.
4 Year Warranty (3 Year Manufacturer Warranty + Bonus 1 Year Instrument Choice Warranty)

Features:
- Thermal resolution: 480 x 360 (172 800 pixels)
- NETD: less than 35 mK (at 25 C)
- Temperature measurement range: -20 to 650 C
- Accuracy: Max (+/- 2 C, +/- 2%)
- Measurement Presets: Center spot, Hot spot, Cold spot, User Preset, Point/Line/Area
- Auto/Manual/Laser focus
- 50 Hz image frequency
- 4.3' inch LCD touch screen display
- 8MP Optical camera
- Up to 4 hours continuous running

Specifications

Thermal Module:
- Image Sensor: Vanadium Oxide Uncooled Focal Plane Arrays
- IR Resolution: 480 x 360 (172 800 pixels)
- Pixel Pitch: 17 um
- Spectral Range: 8 to 14 um
- NETD: less than 35 mK ( at 25 C)
- Focal Length: 25 mm
- FOV (Field of View): 19 x 14 degrees
- Image Frequency: 50 Hz
- Focus: Continuous Autofocus/Autofocus/Manual Focus/Laser Assisted Focus
- IFOV (Spatial Resolution): 0.68 mrad
- Aperture: F1.0
- Minimum Focus Distance: 0.3 m
Image Display:
- Display: 800 x 480 Resolution, 4.3 inch LCD Touch Screen
- Color Palettes: White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, Rain
- Digital Zoom: 1x, 2x, 4x, 8x
- Image Modes: Thermal/Optical/Fusion/PIP
- PIP: Thermal Picture in Optical Picture
- Fusion: Thermal Picture and Optical Picture Combined
Measurement and Analysis:
- Object Temperature: Range -20 to 650 C
- Accuracy: Max (+/- 2 C, +/- 2%)
- Measurement Presets: Center Spot, Hot Spot, Cold Spot, Off
- Point: 10 User Presets
- Line: 1 User Preset
- Area: 3 User Presets
- High Temperature Alarm: Audible Warning
- Color Alarm (Isotherm): Above/Below/Interval/Insulation
Storage:
- Storage Media: Removable Micro SD Card (64 GB)
- Image Storage Capacity: 60 000 Images
- Image File Format: JPEG with Measurement Data Included
- Video Storage Capacity: 54 Hours
- Video File Format: MP4
Functions:
- Laser Pointer: Yes
- Laser Distance Meter: Yes
- Laser Type: Class
- Wi-Fi: 802.11 b/g/n (2.4 GHz)
- Bluetooth: Bluetooth 4.2
- Level/Span: Auto/Manual
- Text Comment: Max 200 Characters
- Voice Comment: Max 60 Seconds
- UVC Cast Screen: Yes
Power System:
- Power Supply: 12 V DC/1.5A, 5V DC/2A (Charging via USB)
- Power Consumption: 5 W
- Battery Type: Dismountable and Rechargeable Li-ion Battery
- Battery Operating Time: 4 Hours Continuous Running
