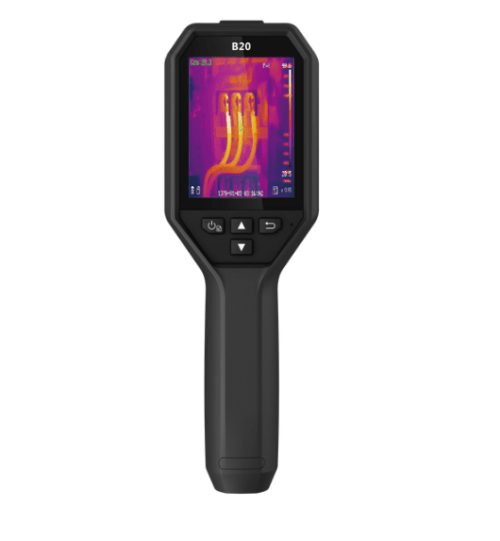

HIKMICRO B20 Handheld Thermal Camera

DISCONTINUED
Product code: HIKMICRO-B20

The HIKMICRO B20 is a general purpose WiFi thermal camera designed to find invisible faults with a wide measurement range and produces high resolution images.

-Wide measurement range: -20 to 550 C.

-Supports up to 256 x 192 thermal resolution for clearer images and  has multiple imaging modes available for different purposes.

-Has high temperature alarm, both audible and visual warnings.

Read more

The HIKMICRO B20 is designed for temperature measurement to find invisible faults. Its equipped with a 256 x 192 resolution HIKMICRO thermal detector and 2MP optical detector. The thermography ranges from -20 to 550 C. Which meets most situation. It helps the staff to quickly find the fault according to accurate temperature measurement of high temperature targets in the environment. Meanwhile it provides assistant decision and ensure safety. The device is mainly applied to various industries, such as Building, HVAC, and auto industry, etc.
Features:
- Thermal resolution: 256 x 192 (49 152 pixels)
- NETD : less than 40 mK (at 25 C)
- Temperature measurement range: -20 to 550 C
- Accuracy: Max (+/- 2 C +/- 2%), for ambient temperature 15 to 35 C and object
temperature above 0 C
- Measurement presets: Center spot, Hot spot, Cold spot, User Preset Point
- 25 Hz image frequency
- 3.2 inch LCD screen display
- Up to 6 hours continuous running

Specifications

- Image Sensor: Vanadium Oxide Uncooled Focal Plane Arrays
- IR Resolution 256 x 192 (49 152 pixels)
- Pixel Pitch: 12 um
- Spectral Range: 8 to 14 um
- NETD : less than 40 mK (at 25 C)
- Focal Length: 3.6mm
- FOV (Field of View): 37.2 x 50.0 degrees
- Image Frequency: 25 Hz
- Focus: Fixed
- IFOV (Spatial Resolution): 3.3mrad
- Aperture: F1.0
- Minimum Focus Distance: 0.3 m
- Picture Resolution: 1600 x 1200 (2 MP)
- FOV: 55 x 42 degrees
- Focal Length: 2mm
- Display: 240 x 320 Resolution, 3.2 inch LCD Screen
- Color Palettes: White Hot, Black Hot, Rainbow, Ironbow
- Image Modes: Thermal/Optical/Fusion/PIP; PIP Thermal Picture in Optical Picture; Fusion Thermal Picture and Optical Picture Combined
- Object Temperature Range: -20 to 550 C
- Accuracy: Max (+/- 2 C, +/- 2%), for ambient temperature 15 to 35 C and object temperature above 0 C
- Measurement Presets: Center Spot, Hot Spot, Cold Spot, Point Presets, Off
- High Temperature Alarm: Audible and Visual Warning
- Storage Media: EMMC (16 GB)
- Image Storage: Capacity 90 000 Images
- Image File Format: BMP with Measurement Data Included
- LED Light: Yes
- Wi-Fi: 802.11 b/g/n (2.4GHz)
- UVC Cast Screen: Yes
- Level/Span: Auto/Manual
