High Temperature and Pressure Data Logger (Flush Top) - IC-PRTempFlush
High Temperature and Pressure Data Logger (Flush Top) - IC-PRTempFlush
ORDER ME IN
Backorder Now, once ordered your item will dispatch before the 10th of June 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

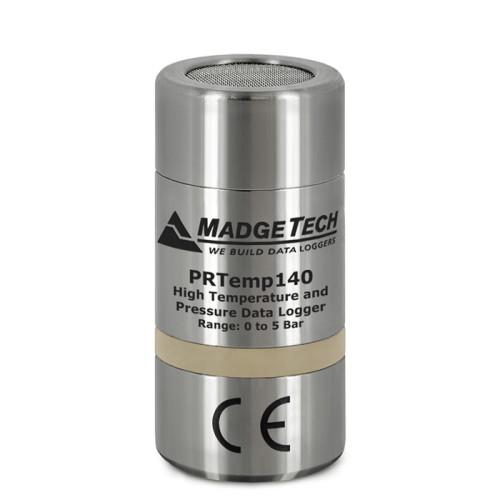

The PRTemp140 is a pressure and high temperature data logger all in one, created specifically for use in autoclave validation, mapping studies and pressurized processes.
- Featuring the familiar body style of the 140 series of data loggers and made of rugged stainless steel.
- Only 2.5 inches in length, allowing it to fit discretely inside small spaces.
- With an Flush top.
Regular price
$3,617.25 AUD
+ GST
$3,978.98 AUD Inc. GST
$3,978.98 AUD Inc. GST
The PRTemp140 is a pressure and high temperature data logger all in one, created specifically for use in autoclave validation, mapping studies and pressurized processes. Featuring the familiar body style of the 140 series of data loggers and made of rugged stainless steel, this dual purpose device is less than 2.5 inches in length, allowing it to fit discreetly inside small spaces.
The PRTemp140 data logger downloads temperature and pressure data simultaneously and displays the combined results in a single graph, simplifying data collection and analysis and eliminating unnecessary steps for the user. This data logger is able to measure and record temperatures from -20 C to 140 C (-4 F to +284 F), and pressure from 0 bar to 5 bar, accommodating a wide range of applications even in the harshest conditions.
The memory capacity on the PRTemp140 stores up to 32,700 time and date stamped readings and will retain data even if the battery becomes discharged.The PRTemp140 utilizes the latest MadgeTech data logger software, making the entire process from starting the device to analyzing data, efficient and easy for the user. Downloaded data can be viewed in various formats including graphic and tabular and can also be exported to Excel for further analysis and calculations.
Includes NIST Certificate.
2 Year Warranty (1 Year Manufacturer Warranty + Bonus 1 Year Instrument Choice Warranty)
Specifications
- Temperature Sensor: Resistance Temperature Detector (RTD)
- Temperature Range: -20 C to +140 C (-4 F to +284 F)
- Temperature Resolution: 0.01 C (0.018 F)
- Temperature Calibrated Accuracy: +/-0.1 C
- Pressure Sensor Semiconductor: Strain Gauge
- Pressure Range: 0 bar to 5 bar
- Pressure Resolution: 0.0001 bar
- Pressure Calibrated Accuracy: +/-0.03 Bar
- Memory: 32,767 readings; software configurable memory wrap
- Reading Rate: 1 second to once every 24 hours, selectable in software
- Baud Rate: 125,000
- Battery Life: 2 years typical (1 minute reading rate)
- Material: 316 Stainless Steel
- Dimensions: 1.98 in x 0.97 in x 0.97 in (50.2 mm x 24.6 mm x 24.6 mm)
- Operating Environment: -20 C to +140 C (-4 F to +284 F), 0 %RH to 100 %RH
- Submersible: Yes
- IP Rating: IP68
- Approvals: CE
