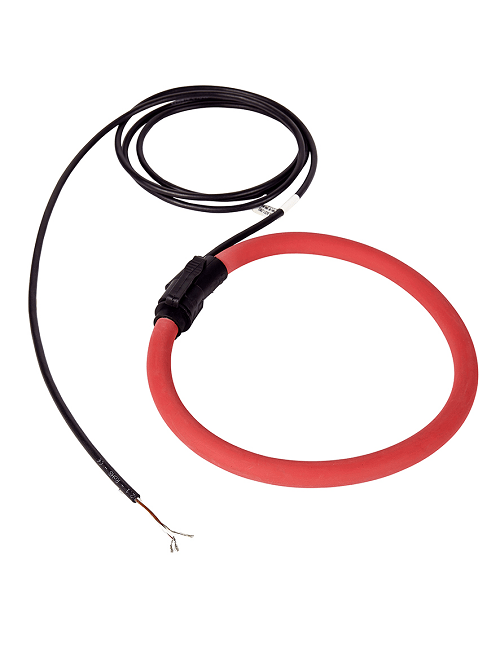

High Sensitivity Rogowski Coil CT for MIRO PQ35 and MIRRIN Logger - 1AFF3000-6-H

ORDER ME IN
Product code: 1AFF3000-6-H

Backorder Now, once ordered your item will dispatch before the 11th of June 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

The high sensitivity CAT IV 600V flexible current probes are a high performance current sensor specifically designed as an accessory for CHK MIRO PQ35 used on energised circuits and in CAT IV environments.

Read more

$510.00 AUD + GST
 $561.00 AUD Inc. GST
The high sensitivity CAT IV 600V flexible current probes are a high performance current sensor specifically designed as an accessory for CHK MIRO PQ45 used on energised circuits and in CAT IV environments.

Specifications

- Rated input current: 500A or 3000A
- Maximum input current: 100kA at (50/60)Hz
- Output signal: 250mV/500A at 50Hz
- Accuracy: +/- 1% (calibrated)
- Linearity: +/- 0.2% (calibrated)
- Position error: +/- 2% max.
- External field: +/- 0.5% max.
- Temperature coefficient: +/- 0.07% / C max.
- Frequency range: 20Hz to 5kHz
- Working voltage: 1000V max. at (50/60)Hz
- Cable length: 2m
- Probe inside diameter A: 170mm
- Probe outside diameter B: 201mm
- Probe length C: 600mm
- Cap coupling cross sec. D: 18mm (min.)
- Cap coupling cross sec. E: 23mm (max.)
- Coil cross-section F: 15.5mm
- Transducer and cable: Thermoplastic RUBBER, flame retardant UL 94 V-O rated
- Couplings: Polypropylene UL 94 V-O rated
- Colour: Red (transducer); Black (cable and couplings)
- Cable: 1000V UL Style 20940;
- Diameter: 5.5mm x wires 2 x 24AWG
- Shield: 85% coil, 100% cable
- Weight: 300 grams
- Safety class: CAT IV 600V as per IEC 61010-1-2003
- Operating temperature: -20 C to 70 C
- Operating humidity: 85% non-condensing
- Pollution degree: 2
- Maximum altitude: 2000m
