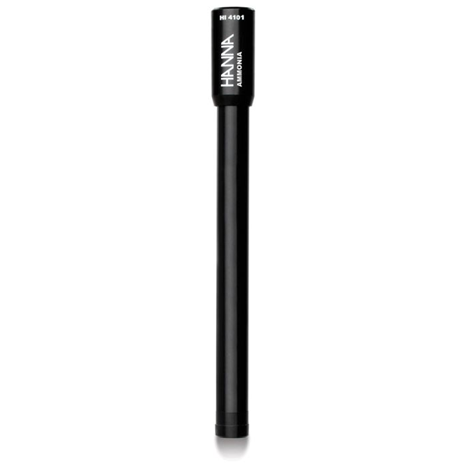

HI4101 Ammonia Combination Ion-Selective Electrode (ISE)
The HI4101 is a gas sensing, combination ion selective electrode (ISE) for the determination of ammonia (NH3) in solution. Its PTFE membrane allows for ammonia gas diffusion into a thin layer of internal electrolyte. The internal sensing elements are within a durable Delrin® body.
Replaceable PTFE membranes
Durable Delrin® body
Detection from 0.02 to 17, 000 mg/L NH3
$1,650.00 AUD Inc. GST
The HI4101 ammonia ion selective electrode is a complete potentiometric cell that contains both a silver/silver chloride (Ag/AgCl) reference and a pH measurement element. These elements are housed within a plastic body with a chloride ion-containing electrolyte, and are isolated from the sample by a gas permeable membrane made of polytetrafluoroethylene (PTFE).
Ammonia can exist in two different forms: ammonia as a gas (NH3) and ammonium as the ionized form (NH4+). The concentration of each form in a solution is dependent on the solution’s pH. The pKa is the pH value at which ammonia and ammonium are in equilibrium. The pKa of the ammonia/ammonium relationship is 9.24; thus, at a pH of 9.24 there will be an equal concentration of ammonia and ammonium. As pH decreases, becoming more acidic, the concentration of ammonium increases and ammonia decreases. The opposite occurs as the pH increases. The actual concentration for either species can be determined by knowing the concentration of ammonia and the pH of the sample.
For the HI4101 to measure ammonia accurately, it is important that the pH of the calibration standards and sample be raised with the ammonia ionic strength adjuster (ISA) solution. The ammonia ISA raises the pH of the solution to pH 11. Any ammonium present in the calibration standards and sample will be converted to ammonia, ensuring an accurate measurement. The HI4101 ammonia gas sensing ISE can measure from 1µM (0.02 mg/L) to 1M (17, 000 mg/L).
Conversion Table for NH3
| Multiply | |
| moles/L (M) to ppm (mg/L) | 1.70 x 104 |
| ppm (mg/L) to M (moles/L) | 5.882 x 10-5 |
Conversion Table for NH3-N
| Multiply | |
| Molarity (moles/L) NH3 to mg/L (ppm) NH3-N | 1.40 x 104 |
Specifications
- SKU: HI4101
- Name: Ammonia Combination Ion-Selective Electrode (ISE) – HI4101
- Description: combination
- Measurement Range: ammonia (NH₃) 1.0M to 1 x 10-6 M, 17000 to 0.02 mg/L (ppm); ammonia-nitrogen (NH₃-N) 14000 to 0.016 mg/L (ppm)
- Temperature Range: 0 to 40 °C
- Body Material: Delrin
- Optimum pH Range: > pH 11
- Body Length/Overall Length: 120 mm
- Outer Diameter: 12 mm
- Cable: coaxial; 1 m (3.3’)
- Connector Type: BNC
- Notes: Approximate Slope -56 mV
