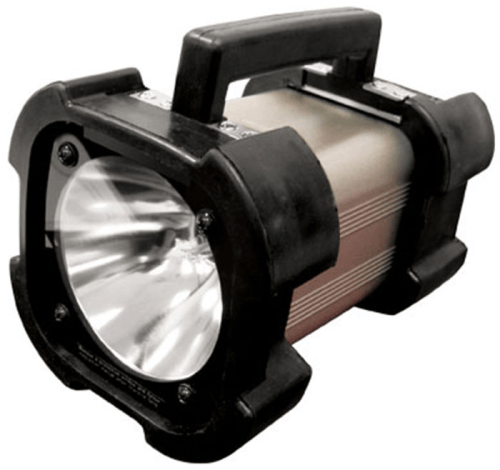

Heavy Duty Xenon Stroboscope for harsh environments, NEMA 4X (IP65)

ORDER ME IN
Product code: IC-DT-311J-230V
The DT-311J is used to set injection timing, injection pressure, timing of shedding and weft running time of weaving machinery. Units combine rugged NEMA 4X (IP65) housing with high performance accuracy, special phase shifting, with shock absorbing components and top mounted handle, allows the equipment operator maximum flexibility when setting the timing of weaving machinery.

Read more | Need help? 3 Hour Business Reply

Where powerful illumination and rugged speed measuring accuracy is required for the textile industry, the DT-311J will perform where other stroboscopes will not. The DT-311J is used to set injection timing, injection pressure, timing of shedding and weft running time of weaving machinery. Units combine rugged NEMA 4X (IP65) housing with high performance accuracy, special phase shifting, with shock absorbing components and top mounted handle, allows the equipment operator maximum flexibility when setting the timing of weaving machinery.

Features

- LIMITED RANGE: 200-1,500 RPM/FPM
- Accepts external trigger input and provides synchronizing pulse output
- Water & Dustproof housing (IP65)
- Phase shift for best view and flash photography
- Hand-held or tripod operation
- Easy-to-operate controls
- Easy-to-read LED display
- Included Accessories: 19.68 ft (6m) input/power cable with connector, rubber strobe guard with handle

Specifications


- Flash Range: 200-1,500 FPM
- Internal Signal Range: 200 to 1,500 FPM
- Phase Shift: 0 to 359 degrees /1 degree increments
- Accuracy: +/- 1 digit
- Flash Rate/Phase Angle Setter: Rotary dial
- Display: 4 digit, 10mm high Red LED
- Divide Ratio: 1/1, 1/2, 1/3, 1/4, 2/4 with shift
- Input Signal (High level): 5-24 V pulse
- Input Signal (Low Level): 0-1 V pulse. 2 msec minimum. Impedance less than 10k ohms
- Input Impedance: 47k
- Display Mode: Phase shift (degree), Tachometer
- Flashtube: Xenon lamp, max 10 W at 1,5000 rpm
- Flash tube Life: 1,200 hours at 1,500 rpm
- Power Requirements: 115 V or 230 V AC (specify), 50/60 Hz, 30 VA
- Power Consumption: 20VA max
- Operating Temp: 0 to 40 C (32 to 104 F)
- Dimensions: 149w x 174h x 214d mm
- Weight: 4.2 lb (1.9 Kg)
- Warranty: 2 years
