Air-Met Scientific | See more Environment Meters | See more Dust Meters

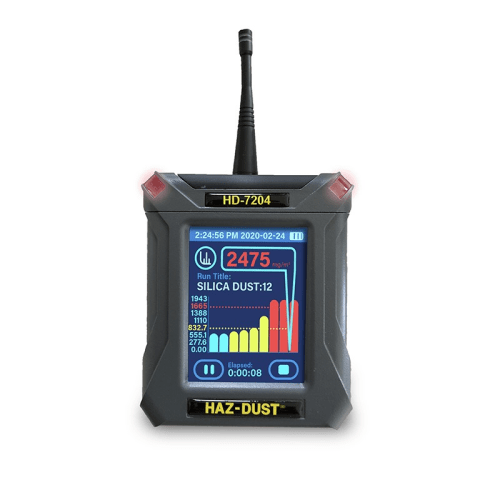

HAZ-DUST 7204 Monitor Kit - 770-7204

ORDER ME IN
Product code: 770-7204

Order Me In, Once ordered this item will likely dispatch before the 11th of October 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.

The HD-7204 is the world’s first personal dust monitor to combine traditional filter techniques with real-time monitoring methods. These techniques combine to overcome limitations of all other dust monitoring products.

  • Monitors and displays several parameters in real-time such Particulate exposure levels, Thoracic, Respirable or Inhalable Particulate Mass, TWA, STEL, Min, and Max levels, etc.
  • High sensitivity of 0.001-500 mg/m3 or 1-500,000 ug/m3.
  • Memory storage of up to 43,000 data point or 15 days of storage.

Read more

$15,168.00 AUD + GST
 $16,684.80 AUD Inc. GST
The HD-7204 provides a unique combination of features to provide superior data quality, ease of use, and flexibility to the user. Below is a partial list of distinctive features.
The HD-7204 shows real-time display of:
- Particulate exposure levels
- TWA, STEL, Min, and Max levels
- Thoracic, Respirable or Inhalable Particulate Mass
- True breathing zone measurements
- Unique on screen programming of data sets
- Unique on Screen programming of Aerosol Profiles.
- Flow rate
- Log rate
- Graphs
- Concentration ranges
- Engineering units of measurement ug/m3 or mg/m3
- In field calibration verification
Functional Features:
- Calibration to NIOSH methods for lung damaging particles
- In-line concurrent filter samples for gravimetric analysis
- High sensitivity of 0.001-500 mg/m3 or 1-500,000 ug/m3
- Interchangeable size-selective sampling inlets
- Internal flow compensated air sampling pump
- Simple cleaning of sensor hardware
- Easy user access to rechargeable battery and internal filter
Operational features:
- On-screen programming of sampling and data storage parameters.
- Ability to name data sets and dust profiles.
- Multiple date formats.
- Menu options in multiple languages.
- Multiple user selectable audible alarm options.
- In-field zero and span check of instrument calibration.
- Ability to Zero the instrument.
- Wireless communication.
- Ability to enter calibration factors.
Data Management:
- Choice of 1 second, 4 sec, 10 sec or 60 seconds averaging/storage intervals.
- Up to 15 days of stored data.
- Memory storage of up to 43,000 data point or 15 days of storage.
- DustComm Pro Software supplied with a micro USB cable for downloading data to a PC. Data translation importable into Excel.

Specifications

- Calibration: NIOSH 0600 with SAE Test Dust
- Accuracy: + 10%
- Precision: 0.02 mg/m3
- Sensing range: 0.001-500 mg/m3 or 1-500,000 ug/m3
- Particle size range : 0.1 to 10 um Respirable / 0.1 to 50 um Thoracic / 0.1 to 100 um Inhalable (IOM)
- Recording time: 1 second, 10 seconds, 30 seconds and 1 minute.
- Flow rate The pump is capable to maintain flow within +/- 5% as follows: 1.0 LPM up to 70 Inch H2O 2.5 LPM up to 55 inch or H2O 5.0 LPM up to 20 inch H2O
- Memory: 43,000 data points
- Output: Micro USB
- Operating temperature: 0 to 50 C
- Humidity range: 95% non-condensing
- Battery: Rechargeable Lithium Ion Battery
- Battery life: 22 + hours
- Charging time: 3 hours
- Size (case): 3.5 x 2.25 x 4.75
- Sensor Dimensions 1.75 x 1.5
