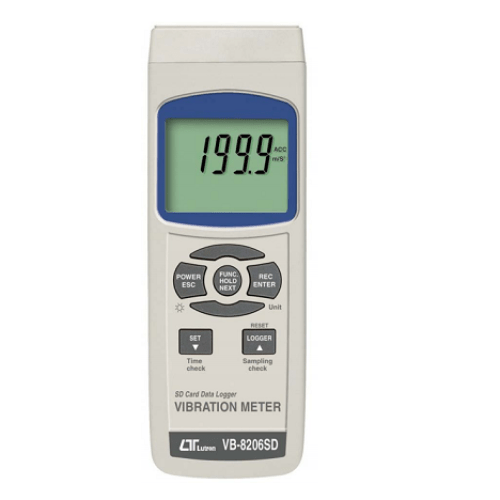

Handheld Vibration Meter - IC-VB-8206SD

ORDER ME IN
Product code: IC-VB-8206SD

Backorder Now, once ordered your item will dispatch before the 25th of June 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

The Lutron VB-8206SD is a hand-held vibrtaion meter that can also measure acceleration, velocity and displacement. Also includes data logging features and convenient data transfer to a PC.

Read more

$1,277.24 AUD + GST
 $1,404.97 AUD Inc. GST
Features:
- Measures acceleration, velocity, and displacement
- Frequency range: 10 Hz - 1 kHz, sensitivity relative meets IS0 2954.
- Includes vibration sensor and magnetic base
- Metric and imperial display unit options
- RMS, Peak value, and Max. hold functions
- With real time data logging features that includes real time data recorder and built-in clock and calendar (SD card required, sold separately).
- Automated data logger mode offers variable sampling rate options: 1 to 3600 seconds
- Manual data logger is available (sampling rate to zero)
- No need to install additional software: Recorded measurements can easily be transferred to a PC by inserting the SD card to a card reader and download the measurements in a spreadsheet.

Specifications


Unit

Range

Resolution

Accuracy

Calibration

Acceleration (RMS, Peak, Max Hold)

m/s^2

0.5 to 199.9 m/s^2

0.1 m/s^2

( 5 % + 2 d ) reading @ 160 Hz, 80 Hz, 23 5 ?

50 m/S^2 ( 160 Hz )

G @ 1 G = 9.8 m/s^2

0.05 to 20.39 G

0.01 G

( 5 % + 2 d ) reading circuit. @ 160 Hz, 80 Hz, 23 5 ?

50 m/S^2 ( 160 Hz )

ft/s^2

2 to 656 ft/s^2

1 ft/s^2

( 5 % + 2 d ) reading @ 160 Hz, 80 Hz, 23 5 ?

50 m/S^2 ( 160 Hz )

Velocity

(RMS, Peak, Max Hold)

mm/s

0.5 to 199.9 mm/s

0. 1 mm/s

( 5 % + 2 d ) reading @ 160 Hz, 80 Hz, 23 5 ?

50 mm/s ( 160 Hz )

cm/s

0.05 to 19.99 cm/s

0. 01 cm/s

( 5 % + 2 d ) reading @ 160 Hz, 80 Hz, 23 5 ?

50 mm/s ( 160 Hz )

inch/s

0.02 to 7.87 inch/s

0.01 inch/s

( 5 % + 2 d ) reading @ 160 Hz, 80 Hz, 23 5 ?

50 mm/s ( 160 Hz )

Displacement (RMS, Peak, Max Hold)

mm

1.999 mm

0.001 mm

( 5 % + 2 d ) reading @ 160 Hz, 80 Hz, 23 5 ?

0.141 mm ( 160 Hz )

inch

0.078 inch

0.001 inch

( 5 % + 2 d ) reading @ 160 Hz, 80 Hz, 23 5 ?

0.141 mm ( 160 Hz )
