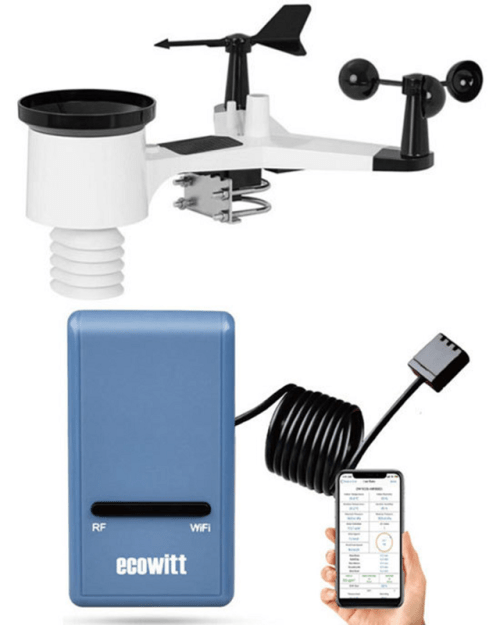

GW1100 Smart Hub ECOWITT WIFI Gateway with Outdoor Multi Sensor

ORDER ME IN
Product code: IC-GW1100-WH65

The Ecowitt GW1100 is a wireless WIFI Weather Station Gateway with temperature, humidity & pressure sensors. Easy and quick configuration of WIFI setup via browser-based UI, receive all the Ecowitt transmitter sensors, can help you set up a mini home weather station.

-Wireless weather station with built-in sensors for temperature, humidity and air pressure.

-Compatible to all Ecowitt transmitter sensors.

-Monitor your environment using the free app.

Read more

The Ecowitt GW1100 is a wireless WIFI Weather Station Gateway with temperature, humidity & pressure sensors. Easy and quick configuration of WIFI setup via browser-based UI, receive all the Ecowitt transmitter sensors, can help you set up a mini home weather station.
It connects to all the Ecowitt transmitter sensors (sold separately); you can set Time Zone and Date, manage other sensors, view sensor signal and power status. Set up your own weather station ecosystem.
Allows accessing your current and historical data locally or remotely. After signing up for our free Ecowitt Weather service, you can have access to your history data via graph or data spreadsheets. The sensor series supported are multi-channel thermo-hygrometer (up to 8), soil moisture sensors (up to 8), air particle sensors (PM2.5), NDIR Co2, Leakage sensor (up to 4), lightning detector sensor, rain gauge, anemometer, leaf wetness sensor, pool thermometer, 7in1 sensor array, solar radiation sensor and so on.
Supports: Ecowitt net, weather underground, Weathercloud, WOW and your own custom weather server (follows either compatible with Ecowitt or weather underground hosting protocol).
Features
- Measures local temperature, humidity and pressure with a sensor located on a cabled probe.
- Allows you to monitor environmental or atmosphere data with the free WS View Mobile application by connecting with optional sensors(sold separately): multi-channel temperature and humidity, rain, wind, soil moisture, PM2.5 and so on
- Streams data to your local WLAN network or Internet-based weather services.
- Supports uploads to weather underground, Weathercloud and WOW (multi-channel temperature and humidity sensors, PM2.5 sensor and Soil moisture sensor data are not hosted on the above-listed servers, but they can be viewed via WS View APP when they are in the same WLAN network)
- Small size and compact design.
- Powered by USB connection.
- Accurate: Swiss-made sensing component provides reliable, accurate measurements

Specifications

Gateway
- Base Station Size: 12x35x62mm
- Frequency: 433Mhz
- Temperature range: -10 to 60 C
- Temperature resolution: 0.1 C
- Temperature accuracy: +/- 1 C
- Humidity range: 10% to 99%
- Humidity resolution: 1%
- Humidity accuracy: +/- 5%
- Barometric pressure range: 300 to 1,100 hPa (8.85 to 32.5 inHg)
- Barometric pressure accuracy: +/- 5 hPa
- Barometric pressure resolution : 0.1 hPa (0.01 inHg)
- Power : DC 5V
WH65 Multi Sensor
- Temperature range: -40 to 60 C
- Resolution: 0.1 C
- Measuring range rel. humidity: 10% to 99%
- Accuracy: +/- 5%
- Rain volume display: 0 to 9999.9 mm
- Resolution: 0.3mm (if rain volume less than 1000mm), 1mm (if rain volume is more than 1000mm)
- Wind speed: 0 to 50m/s (0 to 100mph)
- Accuracy: +/- 1m/s (wind speed< 5m/s), +/-10% (wind speed is less than 5m/s)
- Wind direction: 0 to 359 degree
- Light: 0 to 400k Lux
- Accuracy : +/-15%
- Measuring interval outdoor sensor: 16 sec
- Power: Remote sensor: 2 x AA 1.5V Alkaline batteries (not included)
