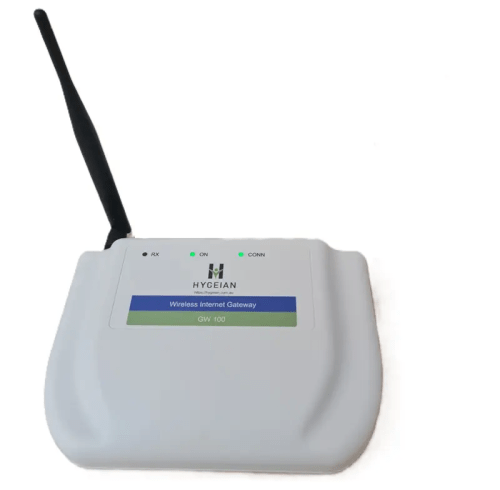

GW-100-WiFi Gateway with WiFi Internet Connection - IC-GW100-WiFi

ORDER ME IN
Product code: IC-GW100-WiFi

Backorder Now, once ordered your item will dispatch before the 18th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

The GW-100-WiFi is a gateway that receives the packets from WTX-275’s and SPX-100’s, collates them, stores them temporarily, constructs a paylad which it uploads to the Hygeian cloud-based server, via the on-site WiFi network.

Read more

$669.65 AUD + GST
 $736.62 AUD Inc. GST
The GW-100-WiFi is a gateway that receives the packets from WTX-275s and SPX-100s, collates them, stores them temporarily, constructs a paylad which it uploads to the Hygeian cloud-based server, via the on-site WiFi network.
If any of the packets are set to Immediate mode, they are uploaded immediately. If the packets are all set to Continuous mode, they are collated and uploaded once per minute as a single string.
The GW-100-WiFi connects to the local WiFi network to access the internet. There is an inbuilt mini webserver in the GW-100-WiFi firmware that is accessed through setting up a hot-spot with a specific ID and password. Once the Gateway is accessed, the user can enter the actual WiFi SSID and passphrase and then the GW-100-WiFi will restart and access that WiFi network
The GW-100-WiFi is powered by a 12V plugpack, supplied with the gateway. It has internal lithium batteries that will allow it to contnue operating for up to 9 hours without mains power. So, the GW-100-WiFi will continue to process the packets received and transfer them provided the WiFi router remains connected to the internet. If the router goes offline, the GW-100-WiFi will store the received data packets and transfer them when power is restored.
