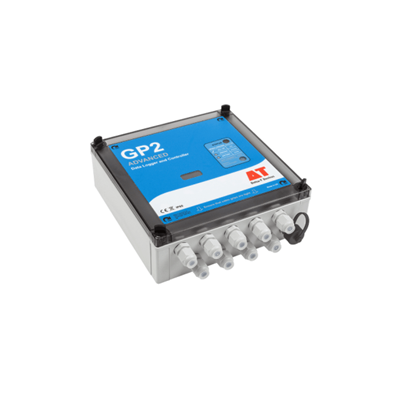

GP2 Data Logger and Controller

The GP2 is a powerful 12 channel data logger that is easy to use, versatile, rugged and reliable. It can log most sensor types and accepts voltage, resistance, current, potentiometer, bridge, counter, frequency, and digital state inputs. DeltaLINK software helps the user set up logging sequences and provides control over reading frequency, sensor type, thresholds, units and much more. All Delta-T sensors can be selected from a menu.

The GP2 is the ideal data logger for field work, with applications ranging from agronomy, meteorology and hydrology to eco-physiology and soil science. We can supply complete systems including sensors, enclosures, solar power and communications options.

The GP2 Data Logger is compatible with all Delta-T sensors. For the Delta-T WET Sensor there is a dedicated input channel.

Delta-T has decades of experience of instrumentation for environmental research and can advise on all aspects of system specification.

Sensors:

- The GP2 Data Logger can log most sensor types and accepts voltage, resistance, current, potentiometer, counter, frequency, and digital state inputs. The GP2s analog inputs can be fully customised. Each channel can have its own input type and recording parameters. DeltaLINK software gives the user control over reading frequency, thresholds and units, and provides statistical recording options for Average, Minimum, Maximum, Standard Deviation and more.

- Specialised wind options are available including wind rose, gusts and wind averaging.

- Users can add their own custom sensor types to the sensor library, exploiting the GP2s detailed configuration options. The GP2 provides 4 input ranges down to microvolt resolution with adaptive auto-ranging, excellent analog accuracy, and configurable sensor excitation enabling it to support nearly all analog sensors.

Calculations based on the measurements from several input channels can be recorded and displayed as additional virtual channels (calculated measurements).

Ease of use:

- Simple point and click software makes it easy to configure channel set-up and recording intervals. The menus that support the advanced customisation options can be displayed or hidden as required.

- Sensor connections are laid out logically with clear, easy-to-follow diagrams and notes.

- The GP2s weatherproof case, battery power and convenient accessories make it very easy to install in the field often without the need for a secondary enclosure.

Simulator:

- This unique software feature allows logging programs to be tested before real-world activation. For applications involving weather data, irrigation or soil moisture recording, the environmental variables can be changed to test how the program responds. Years of logging time can be simulated in just a few minutes.

Storage. communications and power:

- 4 MB of FLASH memory enable storage of 2.5 million readings (typical). Data can be collected by a laptop locally via USB/RS232 or remotely using the cellular modem options.

- The GP2 has 6 alkaline AA internal batteries as standard. An optional mains power adapter is available (type GP2-PSU). Up to 7 GP2s can share power and communications using an M12 cabling network. GP1 Data Loggers can be integrated into such a network via an adapter cable.
