General Purpose Ultrasonic Wall Thickness Gauge - IC-TI-45NA
ORDER ME IN
Order Me In, once ordered this item will likely dispatch before the 14th of September 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.

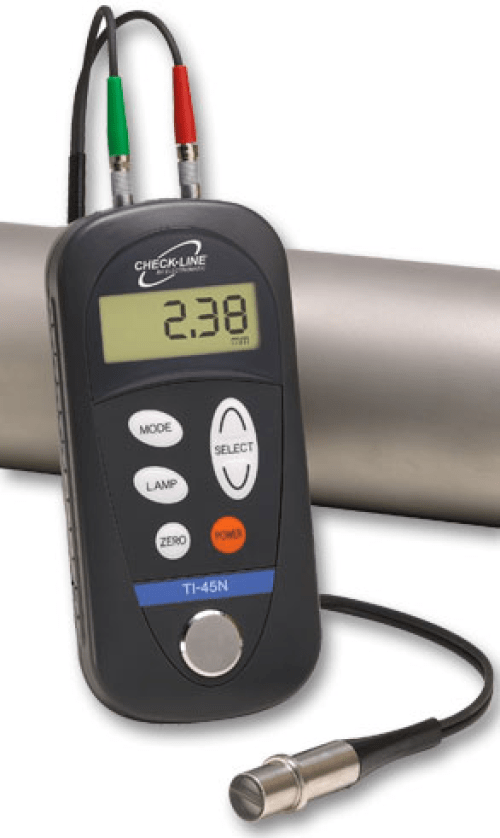

The CHECK-LINE TI-45NA Ultrasonic Wall Thickness Gauge accurately measures wall thickness and the extent of corrosion of all metals, ceramics, glass and most rigid plastics - from only one side!
Regular price
$2,797.91 AUD
+ GST
$3,077.71 AUD Inc. GST
$3,077.71 AUD Inc. GST




The CHECK-LINE TI-45NA Ultrasonic Wall Thickness Gauge accurately measures wall thickness and the extent of corrosion of all metals, ceramics, glass and most rigid plastics - from only one side!
The attractive, ergonomic housing design is extremely compact, lightweight and rugged. It fits comfortably in the palm of your hand and incorporates a back light that illuminates the LCD in poorly lit areas.
Features
- TI-45NA includes new Pipe Mode for stable measurement on small diameter pipe (1" and larger)
- Resolution of 0.001" (0.01mm)
- Extremely small & lightweight operates from a single AA battery
- Switch-selectable units - inches or mm
- Built-in calibration test plate
- Quick display update with last reading retained on the display
- Display symbols alert user to poor coupling and low battery conditions
- TI-45N-HD includes slip-on, ergonomic rubber sleeve for improved grip and additional phys
Specifications
- Range in Steel: 0.040 - 8.000" (1.0 - 200.0 mm)
- Resolution: 0.001" (0.01 mm)
- Display: 4.5 - digit LCD display, 0.39" (10mm) high with push button illumination
- Velocity Range: 1,000 - 12,000 m/sec, continuously adjustable
- Probe: 5 MHz, .39" (10 mm) diameter without Centering Shell
- Cable: 39" (1m) 2-wire, long cable with quick-disconnect connectors
- Minimum Pipe Size: 1" nominal (27mm) steel pipe, wall thickness starting at 0.060" (1.50 mm)
- Temp. Limits (Ambient): 25 to 125 F (-5 to 50 C)
- Temp. Limits (Material): -15 to 140 F (-10 to 60 C)
- Calibration Plate: 0.200" (5.00mm) steel plate, built into the front of the housing
- Battery Type: 1x AA battery
- Battery Life: 200 hours
- Weight (Gauge): 7 ounces (200 g)
- Size: 5.2" x 2.7" x 1.1" (131 x 68 x 29 mm)
- Warranty: Gauge: 1 years
- Probe: 90 days
- Accessories Included: Fitted, hard-plastic carrying case, probe shell attachment, 2 oz. bottle of coupling fluid, 1 spare battery and operating instruction guide.
Measuring Limits:
- Minimum Radius for Convex Surfaces: 1" (27 mm)
- Minimum Radius for Concave Surfaces: 3" (76.2 mm)
- Minimum Headroom: 3" (76.2 mm)
- Minimum Sample Diameter: 0.5" (12.7 mm)
