General Manual Multimeter

ORDER ME IN
Product code: MT1883

Backorder Now, once ordered your item will dispatch before the 22nd of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

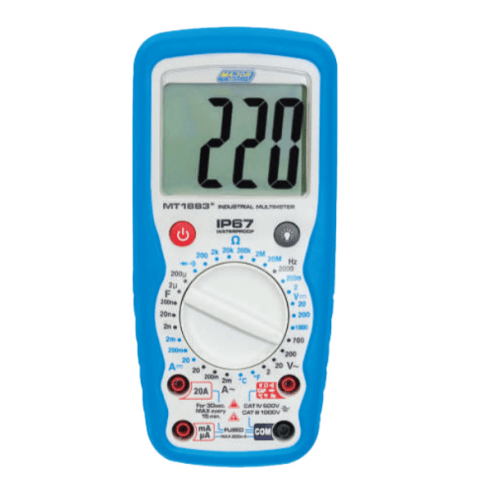

The MT1883 is a manual multimeter for general applications.

-Measures AC voltage and current for the frequency range of 50Hz to 400Hz.
-IP67 Dust & Waterproof with O-Ring sealed casing.
-Suited electronic technicians and electricians, including students studying electronics.

Read more

$159.00 AUD + GST
 $174.90 AUD Inc. GST
The MT1883 is an average reading 2000 count manual range DMM and has a large backlit LCD display. The meter measures AC voltage up to 700V and DC voltage up to 1000V, fused AC and DC current up to 10 Amps, temperature measurement in C or F, resistance, frequency measurement and capacitance measurement, plus a diode test function and continuity buzzer. The meter measures AC voltage and current for the frequency range of 50Hz to 400Hz.
Features:
- IP67 Dust & Waterproof with O-Ring sealed casing
- Manual Range
- Measures Frequency 1Hz to 2000KHz on Electronic and Electrical Circuits
- Temperature between -20 to 760 C
- Capacitance to 200uF
- Measures ACV to 700V and DCV to 1000V, fused AC and DC current up to 10 Amps
- Measures Resistance up to 20 megaohms
- 2000 Count LCD
- Full Ranges Protection
- Overmould rubber housing
- Integrated Test Lead Holder
- Backlight for dimly lit areas

Specifications

- DC Voltage: 200mV to 1000V +/- (0.5% +2)
- AC Voltage: 2.000V to 700V +/- (1.0% +3)
- DC Current: 10A +/- (1.5% + 3)
- AC Current: 10A +/- (2.5% + 10)
- Resistance: 200.0 ohms to 20.00 megaohms +/- (1.2% +2)
- Temperature: -20 to 760 C +/- ( 3.0%+5)
- Capacitance: 2.000nF to 200.0uF +/- (4.0% +3)
- Frequency: 2000Hz +/- (1.5% +5)
- Size: 182 x 81 x 50mm
- Weight: 375g
