Fumigation Temperature Data Logging Kit - IC-MX1105-Fumigation-Kit
Backorder Now, once ordered your item will dispatch before the 14th of June 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
$2,577.30 AUD Inc. GST

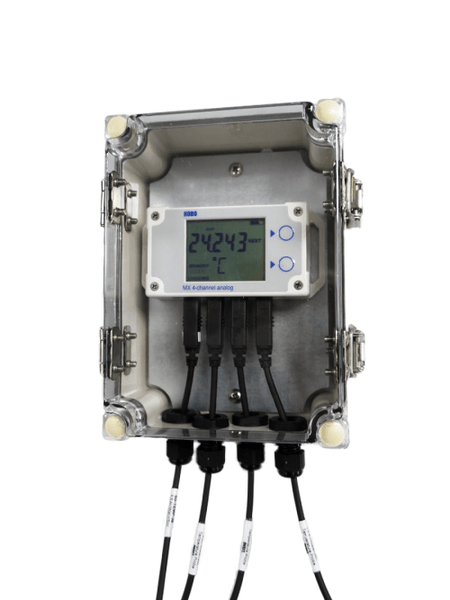

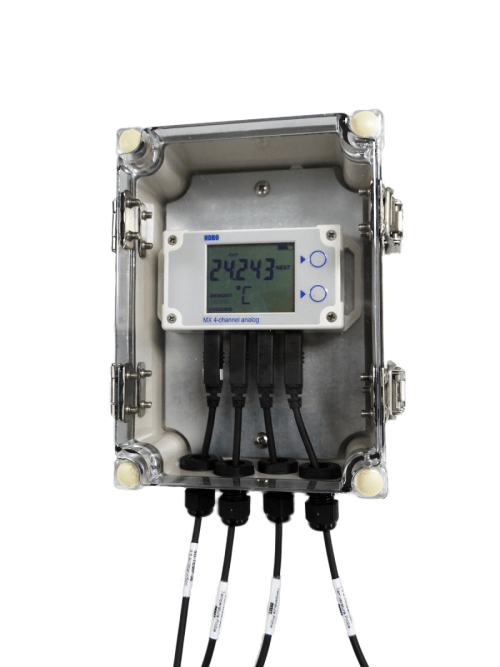

We have combined the HOBO MX1105 4 Channel Bluetooth Data Logger, magnetically mounted it in a waterproof enclosure and included 4 x 15.2 Metre Temperature Sensors to make a simple temperature recording kit for the fumigation process.
The logger is generally located outside the container with the temperature sensors placed accordingly around the fumigation zone.

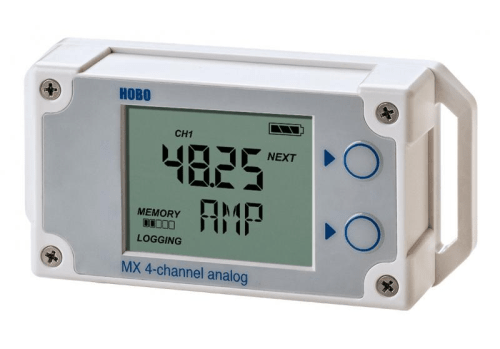

The HOBO MX1105 multi-channel data logger, with four-channel inputs, measures and transmits data wirelessly from a variety of sensors to your mobile device via Bluetooth Low Energy (BLE) technology, so you don't even need to open the lid to start the logger.
This self-contained wireless data logger lets you use your mobile device and Onsets free App (HOBOconnect) to access data, at any time, over a 100-foot range via Bluetooth Low Energy (BLE) technology. You can configure the logger, read out data, view data in graphs, check the operational status of loggers, configure alarm notifications, and share data files all with no dedicated equipment beyond a mobile device. And if used with the new MX Gateway, you can remotely access your data in Onsets cloud-based HOBOlink software.
Features:
- BLE communications for wireless data offload
- 16-bit resolution for highly accurate measurements
- Stores 1.9 million measurements for longer deployments between offloads
- New Self-Describing sensors with intelligent configuration for fast deployment
- Compatible with existing sensors for a wide range of indoor monitoring
- Audible and visual LCD-screen alarms notify you if a sensor becomes unplugged or a reading exceeds set thresholds
Key Advantages:
- Convenient wireless setup and easy data offload via BLE
- Highly-accurate measurements and large memory
- Fast deployment using optional SD sensors with automatic configuration
- Wide range of measurements from compatibility with existing sensors
- Option to add the MX Gateway for near real-time, remote access to data in cloud-based HOBOlink software
- 1x HB6412 - Enclosure TiBox for HOBO Data Loggers with External Sensors, ABS, Clear Lid, S/Steel Hinges, 175x125x75 cms, 4 x cable glands, back hooks.
- 1x HOBO MX1105 4 Channel Data Logger
- 4x SD-TEMP-50 15.2 Metre Temperature Sensors, Self-Describing
Specifications
:- Operating Range: -20 to 70 C (-4 to 158 F)
- Radio Power: 1 mW (0 dBm)
- Transmission Range: Approximately 30.5 m (100 ft) line-of-sight
- Wireless Data Standard: Bluetooth Low Energy (Bluetooth Smart)
- Logging Rate: 1 second to 18 hours
- Logging Modes: Fixed interval (normal, statistics) or burst
- Memory Modes: Wrap when full or stop when full
- Start Modes: Immediate, push button, date & time, or next interval
- Stop Modes: When memory full, push button, date and time, or after a set logging period
- Restart Mode: Push button
- Time Accuracy: +/- 1 minute per month at 25 C (77 F)
- Battery Type: Two AAA 1.5 V alkaline batteries, user replaceable
- Battery Life: 1 year, typical with logging interval of 1 minute and Bluetooth Always On enabled; 2 years, typical with logging interval of 1 minute and Bluetooth Always On disabled; and temperatures between 0 and 50 C (32 and 122 F). Faster logging intervals and statistics sampling intervals, burst logging, remaining connected with the app, excessive downloads, and paging may impact battery life.
- Memory: 4 MB (1.9 million measurements, maximum)
- Full Memory Download Time: Approximately 4 to 15 minutes depending on the mobile device; may take longer the further the device is from the logger
- LCD: LCD is visible from 0 to 50 C (32 to 122 F); the LCD may react slowly or go blank in temperatures outside this range
- Size: 11.28 x 5.41 x 2.92 cm (4.44 x 2.13 x 1.15 in.)
- Weight: 123 g (4.34 oz)
- Environmental Rating: IP54
