Full Spectrum Quantum Meter - IC-MQ-500
ORDER ME IN
Order Me In, once ordered this item will likely dispatch before the 06th of August 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.
The MQ-500 Full Spectrum Quantum Meter is appropriate for Photosynthetic Photon Flux Density (PPFD) measurement applications for plant canopies, greenhouses, growth chambers, and reflected or under-canopy (transmitted) PPFD measurements in the same environments. Can also be used in aquariums where corals are grown.
Regular price
$1,482.00 AUD
+ GST
$1,630.20 AUD Inc. GST
$1,630.20 AUD Inc. GST
The MQ-500 Full Spectrum Quantum Meter is appropriate for Photosynthetic Photon Flux Density (PPFD) measurement over plant canopies, greenhouses, and growth chambers, and reflected or under-canopy (transmitted) PPFD measurements in the same environments. Can also be used in aquariums where corals are grown.

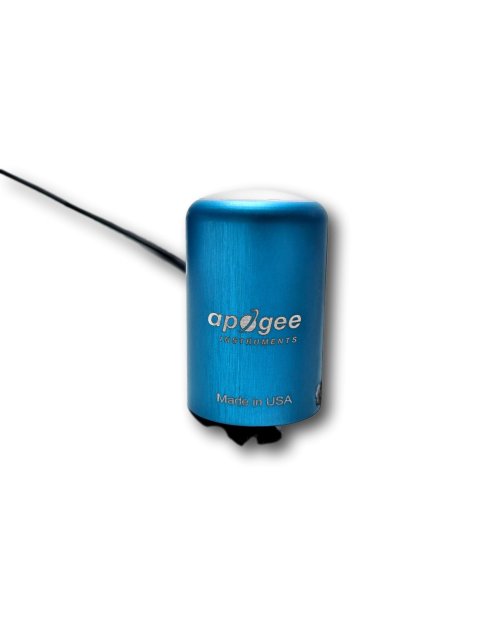

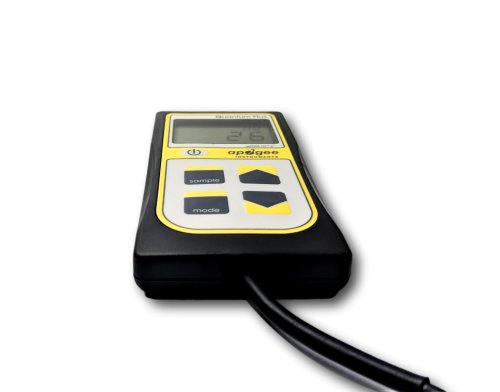

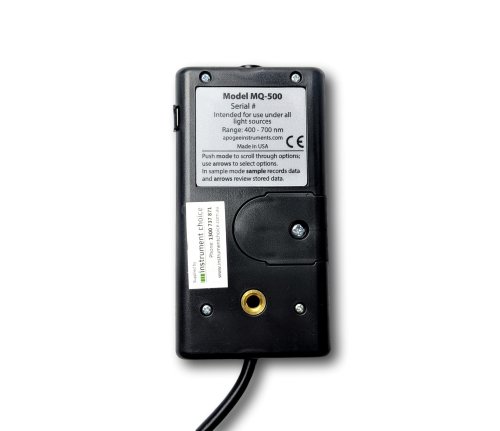

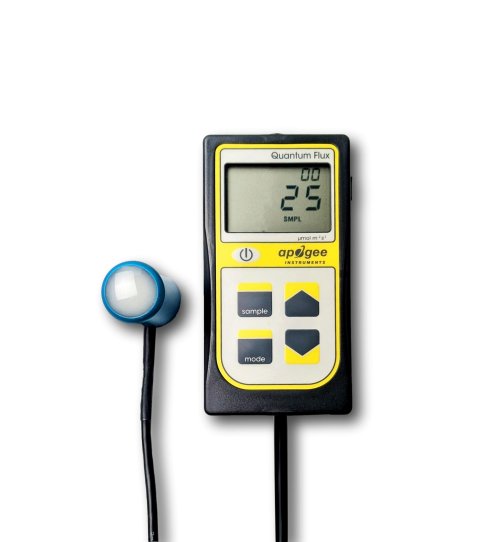

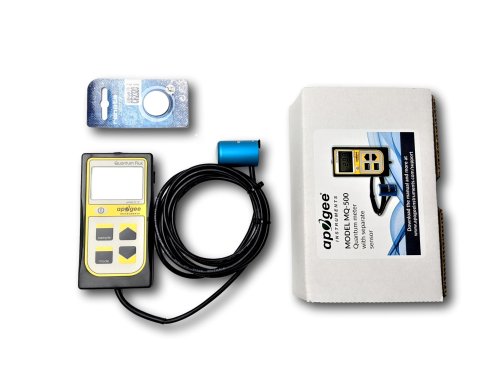

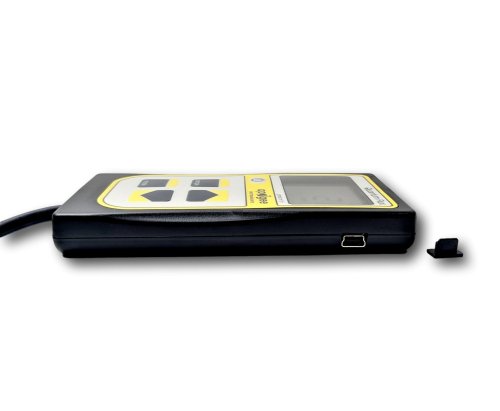

The MQ-500 sensor is attached to a hand-held meter, via cable, that displays and stores measurements. The sensor incorporates a blue-enhanced silicon photodiode and custom optical filters with a rugged, self-cleaning sensor housing design, anodized aluminum body with acrylic diffuser.
Specifications
- Calibration Uncertainty: 5 %
- Measurement Range: 0 to 4000 mol m-2 s-1
- Measurement Repeatability: Less than 0.5 %
- Long-term Drift: Less than 2 % per year
- Non-linearity: Less than 1 % (up to 4000 mol m-2 s-1)
- Response Time: Less than 1 ms
- Fieled of View: 180
- Spectral Range: 389 to 692 nm 5 nm (wavelengths where response is greater than 50 % of maximum)
- Spectral Selectivity: Less than 10 % from 412 to 682 nm 5 nm
- Directional (Cosine) Response: 5 % at 75 zenith angle
- Azimuth Error: Less than 0.5 %
- Tilt Error: Less than 0.5 %
- Temperature Response: -0.11 0.03 % C-1
- Uncertainty in Daily Total: Less than 5 %
- Detector: Blue-enhanced silicon photodiode
- Housing: Anodized aluminum body with acrylic diffuser
- IP Rating: IP68
- Operating Environment: 0 to 50 C; less than 90 % non-condensing relative humidity up to 30 C; less than 70 % non-condensing relativity humidity from 30 to 50 C; separate sensors can be submerged in water up to depths of 30 m
- Meter Dimensions: 126 mm length; 70 mm width; 24 mm height
- Sensor Dimensions: 24 mm diameter; 37 mm height

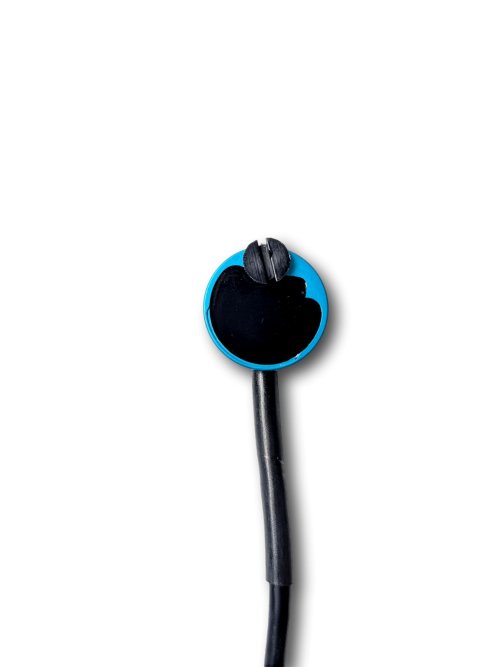

- Cable: 2 m of shielded, twisted-pair wire; additional cable available; santoprene rubber jacket
- Warranty: 4 years against defects in materials and workmanship
