FRONTIER FC5706P+R78 (includes Rotor Angle 6×50 ml RB/FA)
Order now and the extra items will likely dispatch before the 22nd Oct 2025. Call 1300 737 871 (NZ 0800 737 871) to confirm.

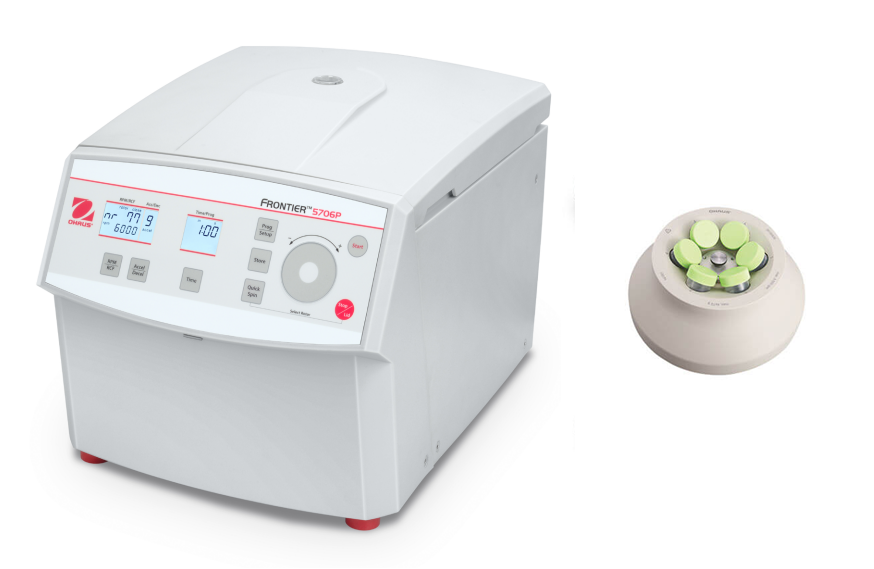

The Frontier 5706P Multi Centrifuge is a small benchtop multi-function centrifuge ideal for a multitude of separation applications. With versatile standard rotor options, the FC5706P seamlessly processes both round and conical bottom tubes, including common blood and urine tubes. Enhanced by user-friendly design, this centrifuge features an intuitive interface that streamlines operation and maximizes efficiency, all while conserving valuable bench space.
This model includes the R78 Rotor Angle with a maximum capacity of 6 x 50 ml RB/FA.
$4,598.00 AUD Inc. GST
The Frontier 5706P Multi Centrifuge is a small benchtop multi-function centrifuge ideal for a multitude of separation applications. With versatile standard rotor options, the FC5706P seamlessly processes both round and conical bottom tubes, including common blood and urine tubes. Enhanced by user-friendly design, this centrifuge features an intuitive interface that streamlines operation and maximizes efficiency, all while conserving valuable bench space.
This model includes the R78 Rotor Angle with a maximum capacity of 6 x 50 ml RB/FA.
Features
- Designed for ease of operation, Frontier 5706 Multi Centrifuge features convenient control on an intuitive interface, which allows for responsive operation – even when wearing gloves.
- Enhanced adaptability to satisfy different customers’ requirements in general laboratory applications. The FC5706P can hold up a variety of different tubes, starting from 50 ml to smaller volume 1.5 ml tubes. The Frontier 5706P offers 5 rotors options including a fixed angle rotor suitable for 18×1.5/2.0 ml tubes and a swing-out rotor that can hold 4×10 ml blood and urine tubes, boosting its versatility for various laboratory
needs.
- Enclosing all its functionalities within a small footprint, the FC5706P saves valuable space on the lab bench
- Easy-to-use touch-wheel interface for parameter adjustments
- Convenient interface shows both set and actual parameters
- One-touch toggling between RPM/RCF and Acc/Dec
- Double-line LCD display with light blue back light
- Audible signal at the end of each run with a melody
- 10 acceleration/deceleration settings
- 99 memory sets to quickly store and recall commonly used parameters
- Microprocessors control to help prevent accidents and protect both the user and the equipment
- Rotor imbalance sensor system stops the unit when it detects an imbalanced load
- Sturdy mechanical lid with locking system
- LED status to indicate the operational condition of the centrifuge like run completed (green), standby (yellow) or centrifugation (red)
Specifications
Centrifuge:
- Speed Range: 200 – 6000 rpm; 10 rpm/set
- Maximum RCF: 4427xg; 10 g/set
- Maximum Capacity (Rotor): Angle Rotor: 6x50 ml
- Temperature range: Air cooled
- Refrigerant: N/A
- Running Time: Quick Spin, 10 sec to 99 hr 59 min, or continuous
- Noise level (depending on the rotor): ≤ 56 ±2 dB(A)
- Acc/Dec Levels: 10/10
- Allowable Density at Maximum Speed: 1.2 g/ml
- Allowable Kinetic Energy: 2427 Nm
- Rated voltage: 100-240 V/50-60 Hz
- Voltage Fluctuation: ± 10 %
- Rated current: 2.5-1.0 A
- Power continues: 70 W
- Dimensions (W×D×H): 323 x 427 x 271 mm
- Net Weight (without rotor): 14.2 kg
- Shipping Dimensions (W×D×H): 370 x 540 x 365 mm
- Shipping Weight (without rotor): 17.6 kg
- Environment: For indoor use only
- Altitude Use: up to an altitude of 2000 m
- Ambient temperature: 5 °C up to 35 °C
- Max. relative humidity: Max. relative humidity 80 % for temperatures up to 31 °C. Decreasing linearly to 50 % relative humidity up to 35 °C.
- EMC: EN/IEC 61326-1 Class B emissions, Basic immunity. FCC Class B emissions
Rotor:
- Maximum Speed: 6,000 rpm
- Maximum Relative Centrifuge Force (x g): 4,427 g
- Maximum Capacity(Rotor): 6 x 50 ml
- Tube diameter without adapter: 31 mm / 50 ml
- Outer/Inner Radius: 110 mm
- Rotor Style: Angle
- Aerosol tight: Not applicable
- Acceleration Time (sec): 41 / 91
- Angle: 40°
- Deceleration Time (sec): 52 / 274
- Dimensions: 4.57 in x 3.58 in x 4.57 in x 4.57 in (116 mm x 91 mm x 116 mm x 116 mm) (LxHxWxØ)
- Maximum loading height: 120 mm
- Maximum loading weight: 432 g
- Multiple Maximum Speeds: No
- Net Weight: 3.22 lb (1.46 kg)
- Working Environment: 32°F – 104°F, 95%RH, non-condensing (0°C – 40°C, 95%RH, non-condensing)
