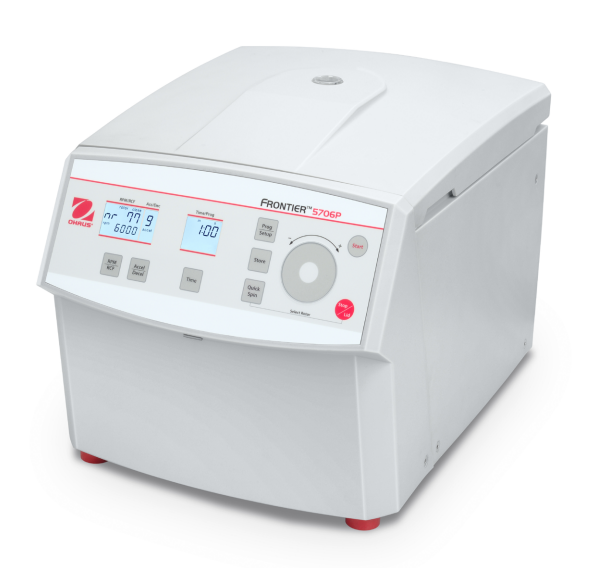

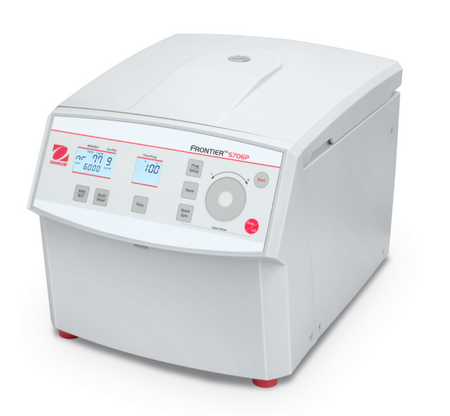

FRONTIER 5706P Centrifuge (IVD)
Order Me In, once ordered this item will likely dispatch before the 22nd of October 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.
The Frontier 5706P Multi Centrifuge IVD is a small benchtop In Vitro medical device. This centrifuge and its accessories are an in vitro diagnostic medical device within the meaning of the In Vitro Diagnostic Medical Devices Regulation (EU) 2017/746.
This centrifuge is intended for the separation of mixtures of substances of different densities, in particular for the preparation and processing of samples from the human body in the context of an in vitro diagnostic application, in order to enable the intended use of the in vitro diagnostic medical device.
$3,564.00 AUD Inc. GST
The Frontier 5706P Multi Centrifuge IVD is a small benchtop In Vitro medical device. This centrifuge and its accessories are an in vitro diagnostic medical device within the meaning of the In Vitro Diagnostic Medical Devices Regulation (EU) 2017/746.
This centrifuge is intended for the separation of mixtures of substances of different densities, in particular for the preparation and processing of samples from the human body in the context of an in vitro diagnostic application, in order to enable the intended use of the in vitro diagnostic medical device.
Features
- Designed for ease of operation, Frontier 5706 Multi Centrifuge features convenient control on an intuitive interface, which allows for responsive operation – even when wearing gloves.
- Enhanced adaptability to satisfy different customers’ requirements in general laboratory applications. The FC5706P can hold up a variety of different tubes, starting from 50 ml to smaller volume 1.5 ml tubes. The Frontier 5706P offers 5 rotors options including a fixed angle rotor suitable for 18×1.5/2.0 ml tubes and a swing-out rotor that can hold 4×10 ml blood and urine tubes, boosting its versatility for various laboratory
needs.
- Enclosing all its functionalities within a small footprint, the FC5706P saves valuable space on the lab bench
- Easy-to-use touch-wheel interface for parameter adjustments
- Convenient interface shows both set and actual parameters
- One-touch toggling between RPM/RCF and Acc/Dec
- Double-line LCD display with light blue back light
- Audible signal at the end of each run with a melody
- 10 acceleration/deceleration settings
- 99 memory sets to quickly store and recall commonly used parameters
- Microprocessors control to help prevent accidents and protect both the user and the equipment
- Rotor imbalance sensor system stops the unit when it detects an imbalanced load
- Sturdy mechanical lid with locking system
- LED status to indicate the operational condition of the centrifuge like run completed (green), standby (yellow) or centrifugation (red)
Specifications
- Speed Range: 200 – 6000 rpm; 10 rpm/set
- Maximum RCF: 4427xg; 10 g/set
- Maximum Capacity (Rotor): Angle Rotor: 6x50 ml
- Temperature range: Air cooled
- Refrigerant: N/A
- Running Time: Quick Spin, 10 sec to 99 hr 59 min, or continuous
- Noise level (depending on the rotor): ≤ 56 ±2 dB(A)
- Acc/Dec Levels: 10/10
- Allowable Density at Maximum Speed: 1.2 g/ml
- Allowable Kinetic Energy: 2427 Nm
- Rated voltage: 100-240 V/50-60 Hz
- Voltage Fluctuation: ± 10 %
- Rated current: 2.5-1.0 A
- Power continues: 70 W
- Dimensions (W×D×H): 323 x 427 x 271 mm
- Net Weight (without rotor): 14.2 kg
- Shipping Dimensions (W×D×H): 370 x 540 x 365 mm
- Shipping Weight (without rotor): 17.6 kg
- Environment: For indoor use only
- Altitude Use: up to an altitude of 2000 m
- Ambient temperature: 5 °C up to 35 °C
- Max. relative humidity: Max. relative humidity 80 % for temperatures up to 31 °C. Decreasing linearly to 50 % relative humidity up to 35 °C.
- EMC: EN/IEC 61326-1 Class B emissions, Basic immunity. FCC Class B emissions
