Flir

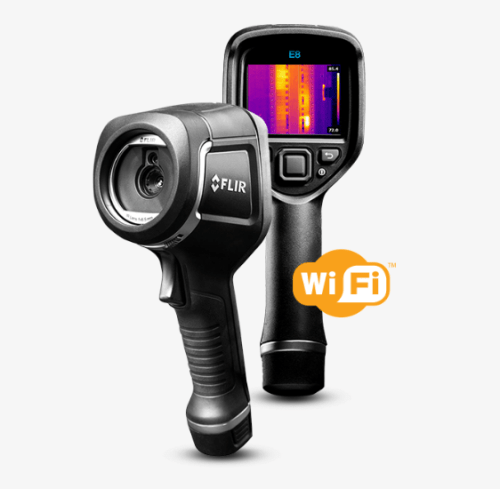

FLIR E8-XT IR Camera w/MSX and WiFi 320 x 240 Resolution/9Hz

DISCONTINUED
Product code: IC-FLIR-E8-XT

Unfortunately, the Flir E8 XT has been discontinue and has been replaced by the  FLIR Ex E8 Pro.

FLIR E8-XT is the perfect tool for diagnosing electrical, mechanical, and building problems, thanks to its 76,800 (320 x 240) pixel infrared detector and expanded, -20 C to 550 C (-4 F to 1022 F) temperature range.

Read more

Unfortunately, the Flir E8 XT has been discontinue and has been replaced by the FLIR Ex E8 Pro.

FLIR E8-XT is the perfect tool for diagnosing electrical, mechanical, and building problems, thanks to its 76,800 (320 x 240) pixel infrared detector and expanded, -20 C to 550 C (-4 F to 1022 F) temperature range.

FLIR MSX image enhancement provides extraordinary thermal imaging detail, while the built-in Wi-Fi allows users to quickly connect with the FLIR Tools Mobile app for sharing images and sending reports easily from any location.
Features:
- Simple, intuitive controls: Automatic and focus-free, with clear on-screen navigation to measurement tools and settings
- Download standard JPEGS, create reports, and share what you've found via a Wi-Fi connection to the FLIR Tools Mobile app
- Lightweight and well-balanced, the E5-XT has an IP54 enclosure and easily withstands a 2-meter drop test

Specifications

- Camera size (L x W x H): 244 x 95 x 140 mm (9.6 x 3.7 x 5.5 in)
- Camera weight incl battery: 0.575 kg (1.27 lb.)
- Color: Black and gray
- Color palettes: Black & white, iron, and rainbow
- f-number: 1.5
- Field of view (FOV): 45 x 34 degrees
- Focus: Focus free
- Image Adjustment: Automatic adjust/lock image
- Image Frequency: 9 Hz
- Image Modes: Thermal MSX, Thermal, Picture-in-Picture, Thermal blending, Digital camera.
- Minimum Focus Distance: 0.5 m (1.6 ft.)
- Multi Spectral Dynamic Imaging (MSX): IR image enhanced with visible camera detail
- Picture-in-Picture: IR area on visual image
- Spatial resolution (IFOV): 5.2 mrad
- Digital Camera Resolution/FOV: 640 x 480/55 x 43 degrees
- Accuracy: +/- 2 C (+/- 3.6 F) or +/- 2% of reading, for ambient temperature 10 C to 35 C (50 F to 95 F) and object temperature above 0 C (32 F)
- Isotherm: Above alarm, below alarm
- Object Temperature Range: +/- 20 C to 550 C (-4 F to 1022 F) in two ranges
- Reflected apparent temperature correction: Automatic, based on input of reflected temperature
- Spot Meter: Center spot; box with min./max.
- Thermal Sensitivity/NETD: <0.10 C (0.27 F) / <100 mK
- Spotmeter and Area: Center spot; box with min./max.
- Display: 3.0 in. 320 x 240 color LCD
- Charging system: Battery is charged inside the camera or in specific charger.
- Charging Time: 2.5 hours to 90% capacity in camera. 2 hours in charger.
- Power Management: Automatic shut-down
- Battery type & operating time: Rechargeable 3.6 V Li ion battery; approx. 4 hours typical use
- Detector Type: Uncooled microbolometer
- IR Resolution: 320 x 240
- Set-up Commands: Local adaptation of units, language, date and time formats
- Spectral Range: 7.5 x 13 um
- AC Operation: AC adapter, 90 to 260 VAC input, 5 VDC output to camera
- Interface: USB Micro: Data transfer to and from PC and Mac device
- File formats: Standard JPEG, 14-bit measurement data included
Includes:
- Infrared camera
- Hard transport case
- Battery (inside camera)
- USB cable
- Power supply/charger with EU, UK, US and Australian plugs
- Printed documentation
