Backorder Now, once ordered your item will dispatch before the 11th of June 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
$1,534.50 AUD Inc. GST

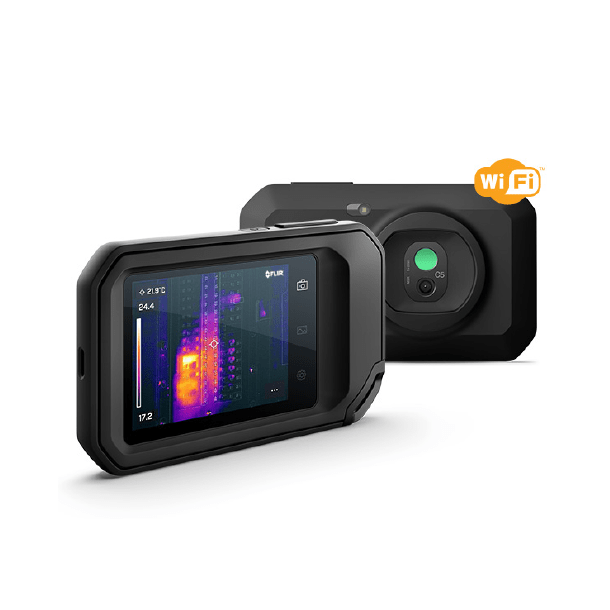

The FLIR C5 compact thermal camera is your go-to tool for building inspections, facilities maintenance, HVAC/R, electrical repair, and other troubleshooting applications. Featuring a thermal camera, visual inspection camera, and LED flashlight, the powerful FLIR C5 makes it easy to identify hidden problems.
Built-in FLIR Ignite cloud connectivity allows direct data transfer, storage, and backup, so images are always available on all your devices. The 3.5 inch integrated touchscreen is simple to use, so you can quickly inspect, document repairs, and share evidence with customers. With the FLIR C5 in your pocket, youll be ready anytime to find hot fuses, air leaks, plumbing issues, and more.
Features:
- Identify and troubleshoot problems faster with the 160 x 120 true thermal imager and 5-megapixel visual camera
- Save time on manual thermal adjustments using 1-Touch Level/Span, which auto-adjusts the level and span in an area of interest with one touch
- Instantly recognize the location of a temperature issue with FLIR MSX (Multi-Spectral Dynamic Imaging), which uses scene details from the built-in visual camera and embosses them onto the full thermal image
- Upload directly to FLIR Ignite to conveniently store, organize, and back-up images
- Identify and describe potential issues by adding annotations to images
- Share findings easily and securely by sending a password-protected link via email
- Provide customers professional reports with images that document problems and repairs using preferred software, such as FLIR Thermal Studio
- IP54 enclosure provides a high level of protection against dust and water
- Designed to withstand a 2 m (6.6 ft) drop
- Carry the compact C5 in your pocket or stow easily in a crowded tool bag
- See into dark, difficult-to-reach areas with the help of the bright LED flashlight
Specifications
Overview:
- IR sensor: 160 x 120 (19,200 pixels)
- Thermal sensitivity/NETD: less than 70 mK
- Field of view (FOV): 54 x 42
- Minimum focus distance (Thermal): 0.1 m (3.94 in)
- Minimum focus distance (MSX): 0.3 m (11.8 in)
- Image frequency: 8.7 Hz
- Focus: Focus free
- Spectral range: 8 to 14 um
- Screen size: 3.5 in
- Visual camera: 5 MP
- Digital camera focus: Fixed
Measurement analysis:
- Object temperature range: -20 to 400 C (-4 to 752 F)
- Accuracy at ambient temp. 15 to 35 C (59 to 95 F) and object temp. above 0 C (32 F): 0 to 100 C (32 to 212 F): +/-3 C (+/- 5.5F); 100 to 400 C (212 to 752 F): +/- 3%
- Measurement functions: Spot and Box with max./min.
- Measurement correction: a) Emissivity; matt/semi-matt/semi-gloss + custom value, b) Reflected apparent temperature, and c) Atmospheric compensation
Image Storage & Streaming:
- Storage media Internal memory and onboard FLIR Ignite cloud connectivity (with Wi-Fi)
- Image storage capacity: around 5000 images
- Image file format: Standard JPEG, 14-bit measurement data included
Communication and Connectivity:
- Wi-Fi 802.11 a/ac/b/g/n (2.4 and 5 GHz)
- USB USB 2.0, Type-C connector
- Bluetooth PAN
- Image upload Directly upload images to FLIR Ignite cloud library and services
