Backorder Now, once ordered your item will dispatch before the 16th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
$1,869.45 AUD Inc. GST

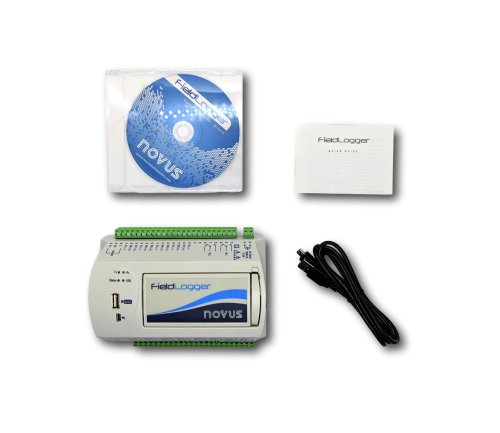

The new FieldLogger from Novus is a versatile, powerful and yet cost effective data logger handling analog, digital and other types of variables with high resolution and speed. It features high performance and high speed connectivity and yet is easy to configure and operate.
FieldLogger has one USB interface to be connected to a computer (for configuration, monitoring and data download) and another USB port for plugging a flash driver for data retrieval. The 512k logging basic memory is used to store data and it can be greatly expanded with an SD card.
An optional color HMI can be attached or remotely installed for local indication or configuration. A user friendly configurator software can be accessed by Ethernet, USB or RS-485 and also provides means for on-line monitoring, logged data downloading and exporting to spread sheets and other formats.
Features
- Ethernet interface with a lot of services available:
1. Sends alarm warning e-mails (SMTP)
2. Provides web pages with channels and status information (HTTP)
3. Allows logged data download via FTP (client and server)
4. Accesses status and channels values through network management software (SNMP and traps)
5. Allows Modbus communication by ethernet interface (Modbus TCP)
- USB-device interface for configuring, monitoring and download
- USB-host interface for logged data retrieval through a USB flash drive
- Alarm actions can include:
1. Activating relays
2. Activating digital outputs
3. E-mails sending to multiple receivers
4. Sending SNMP traps
5. Starting and/or stopping loggings
- Optional detachable human-machine interface
- Data Loggings:
1. Up to 100 channels can be logged at a configurable rate
2. Data download through the configuration software or through the freely distributed download DLL
Specifications
- Power supply: 24 VDC/VAC
- Output: 24 VDC for powering up to eight 4 to 20 mA transmitters
- Universal analog input channels: 8 (Thermocouples,V, mV, mA, Pt100 and Pt1000)
- Accuracy (Thermocouples J, K, T, E and N): 0.2 % of the span +/- 1 C
- Accuracy (Thermocouples R, S and B): 0.2 % of the span +/- 3 C
- Accuracy (Pt100, Pt1000): 0 to 20 mA, 4 to 20 mA, 0 to 20 mV, 0 to 50 mV, 0 to 60 mV, - 20 to 20 mV, 0 to 5 V and 0 to 10 V: 0.15 % of the span.
- Digital I/Os: 8 (individually configured as input or output)
- Digital inputs: Logic level 0: from 0 to 0.8 Vdc, Logic level 1: from 2 to 30 Vdc, Maximum input voltage: 30 Vdc, Input current at 30 Vdc (typical):
3 mA
- Digital output: Maximum output voltage: 30 Vdc/Maximum output current: 200 mA
- Relay output: 2 (NO, NC and common)
- Reading and logging rates: Up to 1000/second
- A/D conversion resolution: 24 bit
- Memory: 512K
- Alarm: Up to 32 configurable alarms.
- Maximum TCP simultaneous connections: 10
- Maximum UDP simultaneous connections: 10
- Communication interface: RS485 interface (Modbus master or slave)
- When acting as a master, can read up to 64 registers from other slaves
- Registers read can be used in logging, alarms or mathematical operations
- Up to 128 virtual channels:
- Basic mathematical functions to be applied on other channels: sum, subtraction, multiplication, division, logic (AND, OR and exclusive OR), square
root and power
- Protection: IP20
- Operating temperature: 0 to 50 C
- Relative humidity: 80 % up to 30 C (For temperatures higher than 30 C, decrease 3% for C )
