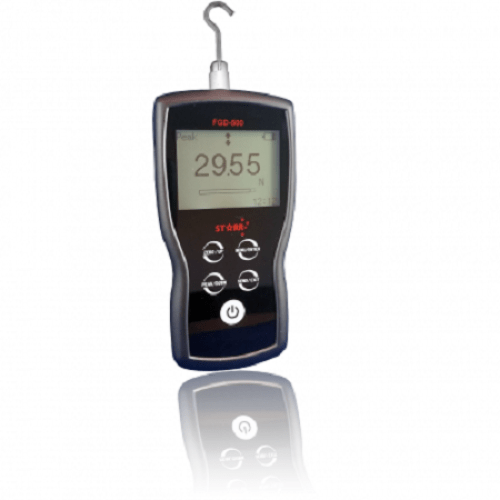

FGD Force Gauge (10N) - IC-FGD-1-10N
Order Me In, Once ordered this item will likely dispatch before the 03rd of October 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.
- 10N capacity.
- Records up to 1000 data entries with output.
- User adjustable low/high alarm limit setting.
$874.50 AUD Inc. GST
Features
- Compact, ergonomic body with rugged black anodized coating and touch sensitive keypad
- 1000 entry internal data logger and software for output
- Auto-orientation display screen (switches instantly when gauge is inverted)
- Visual and audible overload alarm protection
- User adjustable low/high alarm limit setting
Choosing force capabilities:
There are many different force capacities available from as little as 2N (200gf) all the way up to 1000N (100kgf). It is important to choose a gauge with suitable capacity to ensure the load cell cannot be overloaded easily when performing your testing and it is recommended to move up to the next model as a precaution, provided the display resolution is acceptable.
For example, if you are testing around 40-45kgf, consider the 100kgf version to be safe as the 50kgf will be operating up around 90% of its capacity.
Importantly, at very low test forces (200gf to 5kgf) it can be very easy to overload the load cell through accidental impact by even a thumb and forefinger.
Specifications
- Accuracy: 0.2% F.S.- Selectable Units: N, gf, kgf, ozf, and lbf. (Selectable)
- Display: LCD with LED Backlight
- Overload Capacity: 120% F.S.
- Measurement Mode: Track, Peak, Auto-Peak
- Sampling Rate: 1000 Hz
- Memory: 1000 data
- Power: Ni-MH rechargeable batteries
- Battery Life: Approx. 20 hours per charge
- Charger/Adaptor: Universal USB charger, Input:110~240VAC
- Outputs: USB, set point output
- Dimensions: 160 x 73 x 34mm
