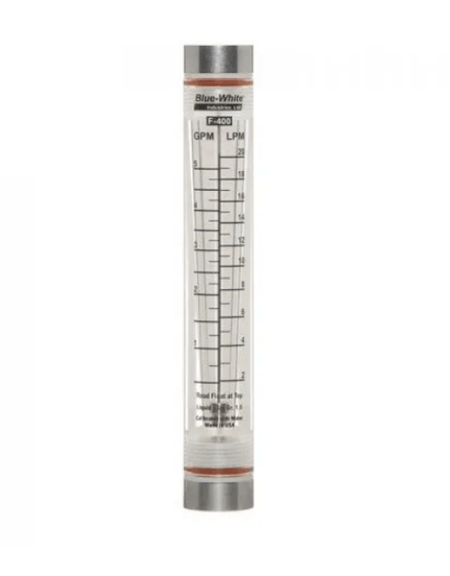

F-40250LN-6 Acrylic Flow Meter

3 In Stock
Availability Info (?)

Order now and the extra items will likely dispatch before the 15th Sep 2025. Call 1300 737 871 (NZ 0800 737 871) to confirm.

Product code: IC-40250LN-6

Acrylic flow meter with F/NPT adapters with high grade Viton o-ring seals and aluminum “stress ring” thread supports.

-0.025 to 0.250 GPM/0.1 to 1.0 LPM

-Appropriate for direct sunlight applications.

Read more | Need help? 3 Hour Business Reply

$649.20 AUD + GST
 $714.12 AUD Inc. GST
Features:
- Durable, highly polished, one piece meter body.
- Annealed for added strength and chemical resistance.
- Acceptable for outdoor installations (acceptable in direct sunlight)
- Direct reading permanent scale.
- White back reflector for easy reading.
- Standard 316 stainless floats and guide rods

Specifications

- Max. working pressure: 150 PSI (10.3 bar) at 21 C
- Max. Fluid Temperature Polypropylene adapters: 65 C at 0 PSI
- Full scale accuracy: +/- 5%
- Calibration fluid: Water, specific gravity 1.0
- Scale length: 4 (100mm)
- Environment: Acceptable for direct sunlight exposure.
- Maximum pressure drop: 2 PSI
- Approximate shipping wt: 0.23 kg
