EZE Systems 3G Controller - Model EZEIO-G

Name: EZE Systems 3G Controller - Model EZEIO-G
Brand: EZE Control
SKU: EZEIO-G
Availability: OutOfStock

DISCONTINUED

Product code: EZEIO-G

Unfortunately, the EZEIO-G has been discontinued, please call one of our scientists for an alternative.

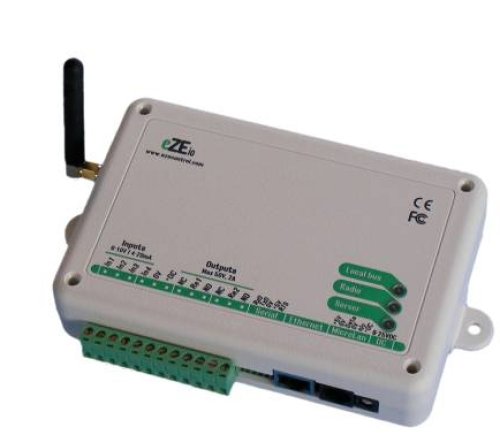

The ezeio is a secure and simple networked control solution. This unit also has a 3G tranciever built-in that complements or replaces the Ethernet connection. With general purpose inputs and outputs, ModBUS and 1-wire interfaces it can be used for logging, monitoring and control of just about anything. Please note: The SIM card is not included, and a separate 3G service is required to use the wireless feature.

Unfortunately, the EZEIO-G has been discontinued, please call one of our scientists for an alternative.

The ezeio Controller comes ready to use to start monitoring, logging and controlling over the Internet.

As soon as the controller is connected to power and an Internet or 3G connection, it will start communicating with the eze System servers. There is no need for special software or network setup. The ezeio connection is encrypted, bidirectional and very efficient.

The ezeio comes complete with antenna, a power supply, an ethernet cable and 4 months of basic service, but without the SIM card.

The ezeio-G controller works exactly like the basic version, but adds a built-in 3G radio that automatically activates if an Ethernet connection can't be established.

Note that SIM card is not included, and a separate 3G service is required to use the wireless feature.

In a small setup with a few inputs logging data, the ezeio typically use less than 5MB data per month. The data use obviously goes up if many inputs log data very often or API features are used.

The ezeio-GSM is a perfect solution where Ethernet access is not available, on moving platforms or as a backup to the wired connection.

Features:
- Built-in GSM cell phone transciever
- Automatic fail-over to 3G if hardwired Ethernet is not available
- 4 analog general purpose inputs (0-10V / 4-20mA / S0-pulse / digital)
- 2 general purpose relay outputs (max 50V@2A)
- ModBus compatible serial port
- MicroLAN (1-wire) master
- Standard Ethernet 10/100 port
- Runs on 8-25VDC, <1W typical draw
- Logging interval configurable from 10 seconds up to 4 hours for each input
- Up to four alarm thresholds for every input
- Alarms can send email, control outputs, set modes and more
- Live access from standard web interface
- No special firewall or network configuration
- HTTP XML API available for easy integration with other systems
- Includes antenna, 12VDC power adapter and a 6ft Ethernet cable

Data acquisition / logging

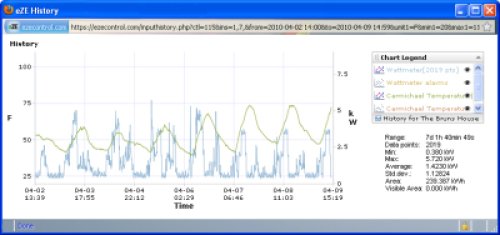

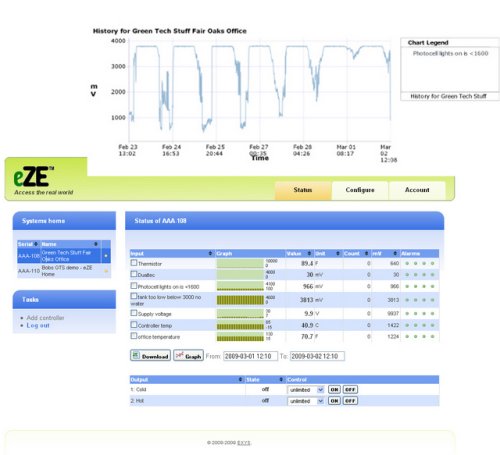

In its simplest form, the eZEio controller connects to a sensor, for example a temperature sensor, to collect and store data. You may configure how often the eZEio will save data, and the information is automatically transferred to our secure servers for immediate access from a regular web browser both as live information and as historic graphs. We take care of all the storage, security, backups and presentation. All you need is the eZEio controller.

Supervision signals and alarms
The eZEio can be configured to send emails, text messages, or even call your phone if the sensor input goes exceed limits you define. Up to four different thresholds can be set up for every sensor.

Remote control
The outputs on the eZEio controller can be controlled directly from your web account login, or from email messages. The communications link is always live, so the controller typically reacts in less than a second after you send a control command. You can even control timers, like this: -"timer hot tub 6:30pm", to come home to enjoy a warm bath.

Automation

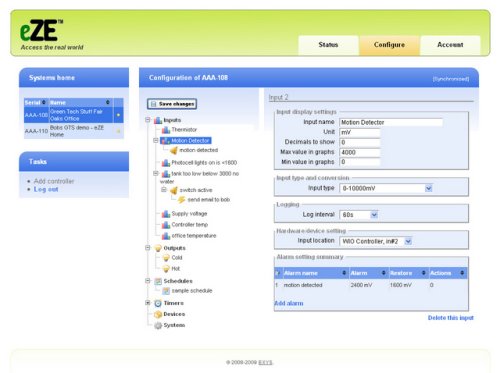

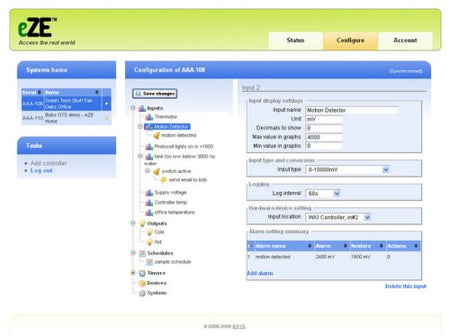

Not only can the input thresholds send messages, but they can also directly control outputs on the eZEio controller. Each action can be conditional on the status of other inputs or counters.

Scripting
Even though the build-in configuration system is very flexible, there are things that can't be done with just configuration. That's why we added the scripting capabilities. The eZEio can be programmed in a C-like language that supports string handling, math and of course has access to all the nice features from the configuration.

Specifications

Environment	32-120F / 0-50C, non condensing
Modbus	RS485 @ 19200bps, Modbus RTU master. Compatible with wattmeters, thermostats, relay modules, VFD's.
Sensor network	MicroLAN, up to 20 sensors, RJ12 jack Max 150ft/50m network length
Data Logging	Individual log interval per input. 5s - 4h. Automatically transferred to servers for access & backup.
Outputs	2 relay outputs on screw terminal Form C (1 pole switching) Max 2A / 50V
Inputs	4 inputs on screw terminal configurable for voltage, switches or current loop 0-10V, 10mV resolution 0-30mA, 32uA resolution
Input triggers	Up to 4 alarms per input with alarm/restore thresholds and holdoff timers. Each alarm can activate up to four actions (sending messages, controlling outputs or other local functions)
Schedules	Uo to 20 schedules each with four intervals and weekday flags.
Timers	Up to 20 timers, hourly, daily or monthly with repeat counters.
Network	Standard Ethernet, TP 10/100, RJ45 DHCP address, preconfigured to communicate with cloud servers. 3G 128 bit encryption, typical <5MByte/month
Scripts	C-like syntax. Support for events, floating point math, string manipulation and communication. Up to 64kB compiled code. Compiler/editor in web UI.
Expandability	Up to 40 inputs, 40 outputs.
