EXTECH BR200, Video Borescope Wireless Inspection Camera

DISCONTINUED
Product code: BR200

Unfortunately, the BR200 has been discontinued and has been replaced by the BR250.

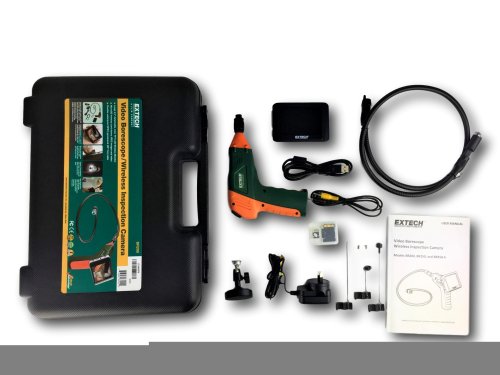

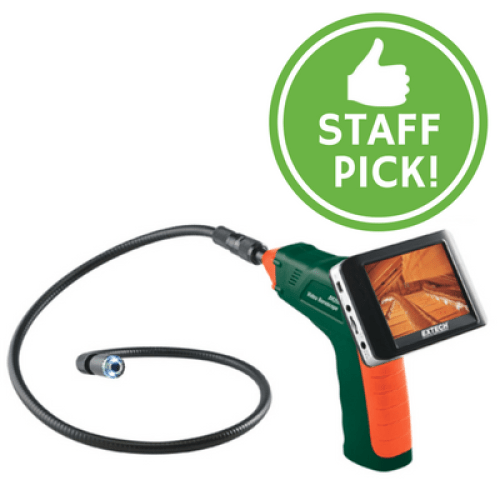

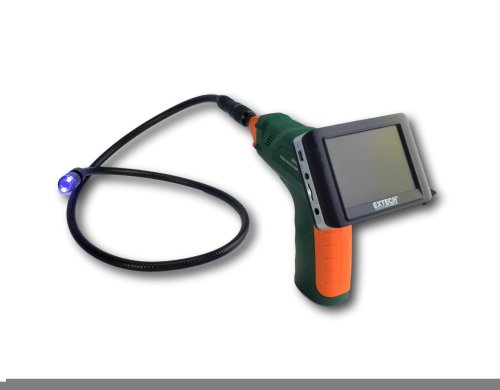

Video Borescope/Wireless Inspection Camera with 17mm camera diameter and 3.5" Color TFT LCD Wireless Monitor.

Read more

Unfortunately, the BR200 has been discontinued and has been replaced by the BR250.
Features:
- Detachable wireless color display can be viewed from a remote location up to 32ft (10m) from measurement point
- 2GB microSD memory card (included) for capturing images(JPEG) or video (AVI) for viewing on your PC
- Captured video and still images with date/time stamp can be played back on the wireless monitor or your PC
- 17mm diameter camera head with 39" (1m) flexible gooseneck cable
- Video and images can also be transferred to your PC via the microSD card (with included SD adaptor) or USB cable (included) and viewed using Windows Multimedia Player
- Menus in 10 languages: English, Chinese, German, French, Spanish, Portuguese, Italian, Japanese, Dutch, and Russian
- Mini water-proof (IP67) 9mm camera head for high resolution viewing
- Four bright LED lamps with dimmer to illuminate viewed object
- Glare-free close-up field of view

Specifications

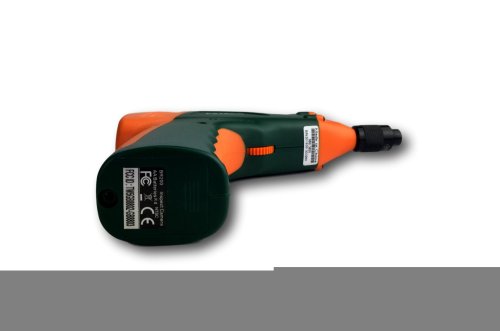

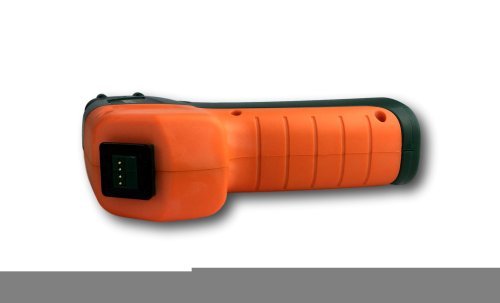

Camera:
- Pixels: 712 x 486 (NTSC)
- Transmission Frequency: 2.4GHz
- Transmission Range: 10m (32 feet) unobstructed view
- Viewing direction: Viewing Angle 45 degrees
- Focus distance from object: 15 to 25cm (5.9 to 9.8 inch.)
- Shaft diameter: 9mm
- Working length: 0.9m (36 inch.)
- Minimum bend radius: 60mm (2.36 inch.)

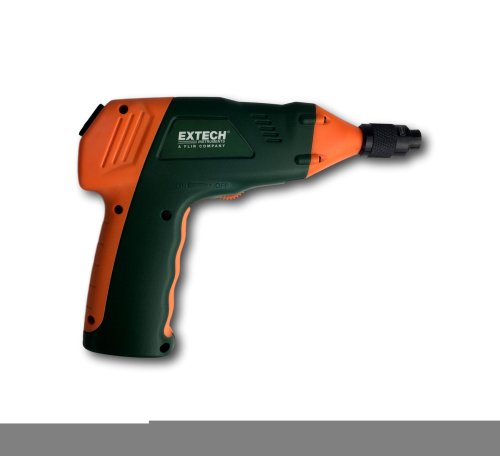

- Handle Dimensions: 186 x 145 x 41mm (7.3 x 5.7 x 1.6 inch)
- Weight: 530g (18.7oz)

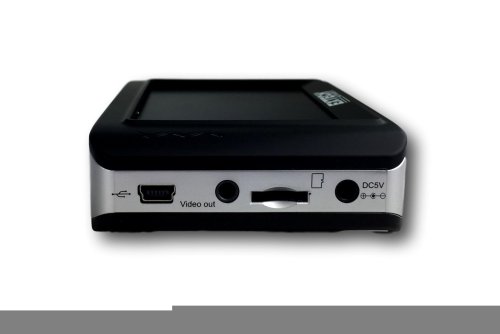

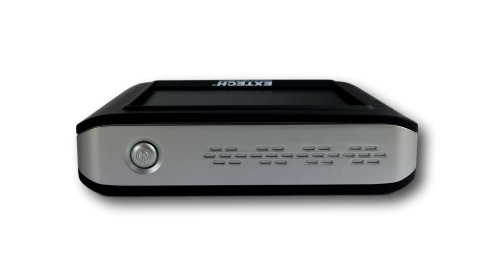

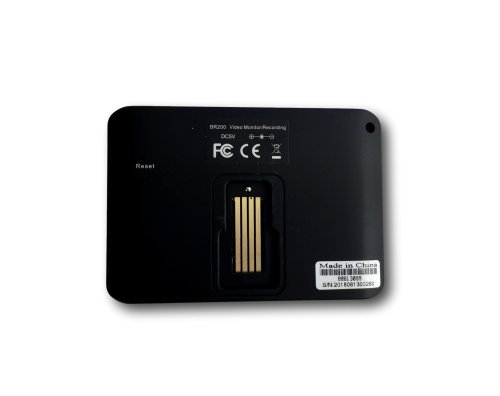

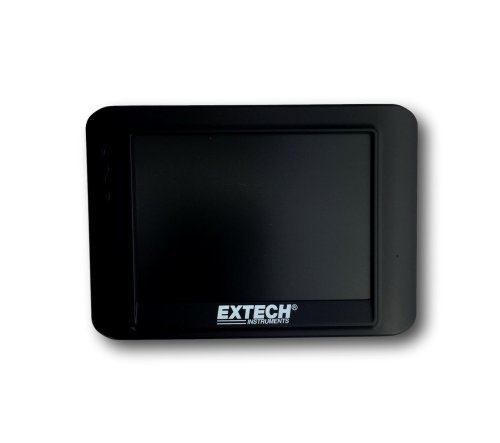

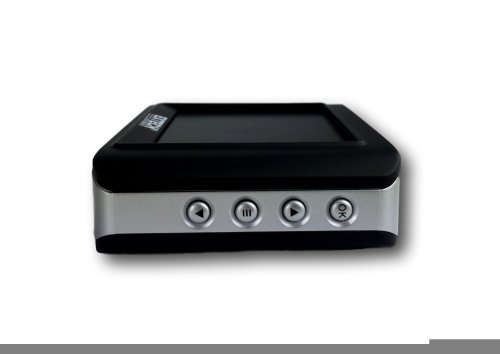

Monitor:
- LCD Screen Type: 3.5 inch TFT
- Pixels: 320 x 240
- Video Output Level: 0.9 to 1.3V at 75
- Frame Rate: 10, 15, 20, 25, 30 FPS
- Video Resolution: 960 x 240 (avi format)
- Image Resolution: 640 x 480 (jpeg format)
- Monitor Dimensions: 100 x 70 x 25mm (3.9 x 2.7 x 1 inch)
- Operating/Charge Time: 1.5 hours/3 hours
- Weight: 140g (4.9oz)
