Expert Logger Series

ORDER ME IN
Product code: IC-ExpertLogger
Expert Logger is a new generation of data loggers. It combines the latest communication technology with advanced measurement technology, and is based on FPGA technology to make it especially powerful. It can process up to 46 analog input channels at both low and high rates of sampling. Available in four models depending on the number of analog and digital inputs

Read more

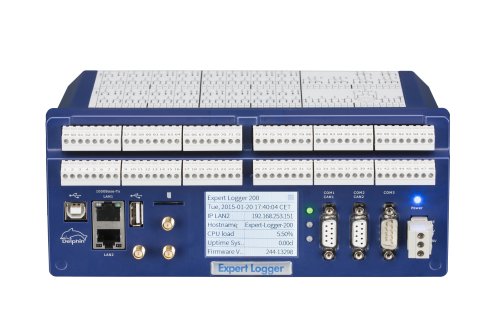

Expert Logger is a new generation of data loggers. It combines the latest communication technology with advanced measurement technology, and is based on FPGA technology to make it especially powerful. It can process up to 46 analog input channels at both low and high rates of sampling. Measurement data can be accurately acquired, independently stored and transmitted to the internet or a PC for evaluation via USB, LAN, WLAN or LTE.

Operation made simple

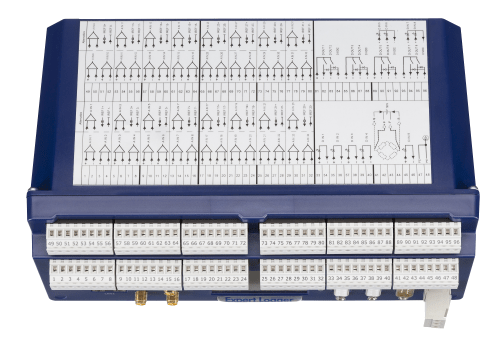

Sensors are connected via plug-in screw terminals and a chart clearly shows how channels are arranged. Users always have a good overview of the channels despite their high density. Each set of four terminals can be configured as two differential inputs to measure voltage, currents, thermocouples, or to take measurements from a 4-wire RTD.
Configuration - fast and easy
The Expert Logger is simple to configure from a PC. These settings remain stored within the Expert Logger even when disconnected from the power supply. The device settings can also be read out and stored on a PC and analysed offline without the need for a connected Expert Logger. The offline configuration settings are then simply read into the device when connected. The software used for configuration is simple to operate to let users fully focus on their measurement tasks.
Intelligent signal processing
Signal processing using internal software channels significantly simplifies measurement tasks. Flexible calculation channels enable measurement data to undergo further computation and recording. Integrators directly calculate volumes or quantities from time related measurement data such as mass and discharge flow rates. Limit values can monitor measurement data and be used to switch digital outputs or automatically send emails. Complex signal processing is possible using pulse counters, stop-clock functions and operating-hours counter. Averages can be calculated and recorded as time-weighted or moving. The Expert Logger's software channels clearly set it apart from other loggers and make it very popular among users.
Features:

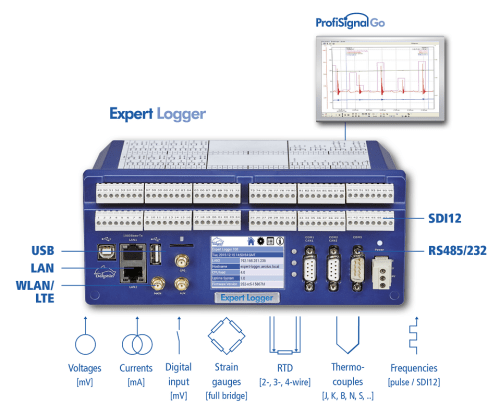

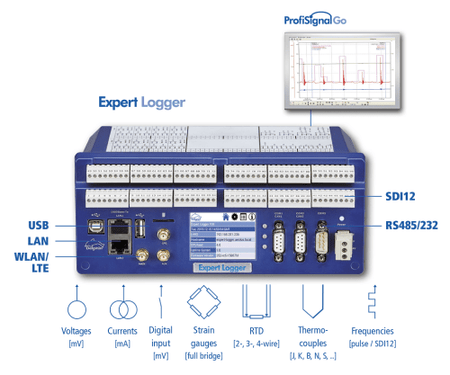

- Universal analog inputs (mV, mA, TC, RTD)
- SDI12 interfaces for environmental sensors
- Independent operation possible with batteries or rechargeables
- Minimal energy consumption via a sleep function
- 2 to 14 GB of internal data storage for up to 420 million measurement values
- PUSH function to send measurement data to the internet
- WLAN link to PCs and mobile devices
- LAN and USB interface to a PC or network
- Monitoring and data logging in a single device
Applications:
- Data logging
- Environmental measurement technology
- Product testing
- Measurement data diagnosis
- Lab data acquisition
- Trials and tests
- Energy optimization
Models:
Expert Logger is available in four versions which differ only in the number of analog and digital inputs they can process. All Expert Logger devices are equipped with internal 2 .. 14 GB memories that can independently store up to 420 million measurement values with date and time stamps to msec precision. Storage capacity can be extended as required via external USB or LAN storage devices (NAS). An integrated, energy-saving "sleep function" automatically switches off the device during breaks in measurement acquisition. The Expert Logger operates with standard batteries, rechargeable batteries or solar units.

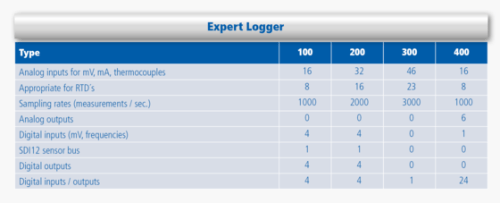

Type 100 200 300 400
Analog Inputs for mV, mA, thermocouples 16 32 46 16
Appropriate for RTD's 8 16 23 8
Sampling rates (measurements/sec) 1000 2000 3000 1000
Analog outputs 0 0 0 6
Digital inputs (mV, frequencies) 4 4 0 1
SDI12 sensor bus 1 1 0 0
Digital outputs 4 4 0 0
Digital inputs/outputs 4 4 1 24
