Expert Key 100P - IC-Expert-P-200

ORDER ME IN
Product code: IC-Expert-P-200

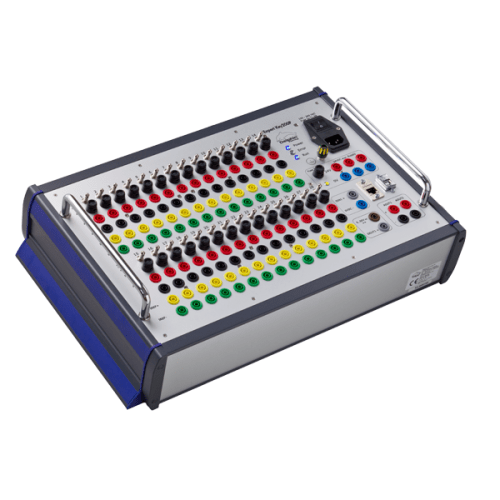

The Expert P series have console housings and plug connections for use in testing, trial, and laboratory applications.

  • The Expert Key type 200 has 28 universal inputs and is intended more for analog measurement data.
  • All signals are connected via 4 mm safety lab plugs.
  • Different sensors such as voltage or current can all be directly connected to the Expert P and measurements can be transferred via LAN or USB.

Read more

Expert Key devices have been designed and developed according to actual customer requirements and incorporate reliable measurement technology. The devices can be connected to PCs via USB or LAN interfaces.
Expert Key devices are simple to use and the ProfiSignal Go software is highly user friendly. A patented measurement procedure and ease of operation enables users to quickly carry out data acquisition and evaluation without the need for extensive periods of learning and familiarization. Just three steps are required to portray measurement data in trend diagrams. Data is stored continuously to a database. Users will be impressed by the system's functioning.
General features of the Expert Key series:
- Very cost effective
- Communications via USB or LAN
- Universal inputs and outputs
- Scalable, even for large applications
- Synchronizing of multiple devices
- Drivers for LabVIEW, Modbus, OPC, DASYLab, etc.
The Expert Key P
Expert Key P models have console housings and plug connections for use in testing, trial, and laboratory applications. All signals are connected via 4 mm safety lab plugs. Data can be transferred to a PC via USB or LAN. RTD sensors, voltage or current signals can be connected directly to any analog input.
The ProfiSignal software enables lab automation complying to FDA21 CFR Part11.

Specifications

- Type: 200
- Analog inputs: 28
- Current sources for RTD: 8
- Sensor types : 2000
- Resolution: 18 bit
- Total sampling rate: 100 kHz
- Measurement range: +/- 100, 200, 500 mV; +/- 1, 2, 5, 10 V
- Integrated reference junctions for thermocouples: yes/1
- Galvanic isolation: 500 VDC to system / PE
- Withstand voltage: +/- 40 V
- Max. differential voltage: +/- 40 V
- Analog outputs: 2
- Resolution: 16 bit
- Max. output rate: 50 Hz
- Output voltage / current: 0-10 V / +/- 10 V / 0-20 mA / 4-20 mA / +/- 20 mA / free
- Galvanic isolation: 500 VDC to system / PE
- Digital inputs: 1
- Logic level: low: 0-1.5 V / high: 5-90 VDC at 2.7 mA to 3.5 mA
- Max. input frequency: 2 x 1 MHz, 10 x 10 Hz
- Measurement range: 0.1 Hz .. 1 MHz or 10 kHz
- Galvanic isolation: yes, 2.5 kVDC
- With counter function: yes, 1
- Counter resolution: 64 Bit
- Max. input frequency: 2 x 1 MHz, 10 x 10 Hz
- Measurement range: 0.1 Hz .. 1 MHz or 10 kHz
- Digital outputs: 8
- Max. switching voltage / current: max. 30 W: 30 V / 1 A .. 50 V / 0.6 A
- Max. output rate: 10 Hz
- Galvanic isolation: yes, 2.5 kVDC
- Galvanic isolation with PWM function: 1
- Pulse duty factor: 1:100 .. 1:500
- PWM basic frequency: 5 Hz .. 10 kHz
- Sensor connection: Screw terminals with 0.14 .. 2,5 mm openings
- Power supply: External power supply, 9 .. 24 VDC
- Max. power input: 6 W
- Temperature range: 0 .. 50 C
- USB interface: USB 2.0 high-speed
- Ethernet interface: 100Base-TX
- Dimensions: 495 x 135 x 305 mm
- Weight: 6500 g
