Expert Key 100L - IC-Expert-L-100
ORDER ME IN
Expert Key devices have been designed and developed according to actual customer requirements and incorporate reliable measurement technology. The devices can be connected to PCs via USB or LAN interfaces.
- The Expert Key 100L is equipped with a good range of analog and digital inputs and outputs, making it suitable for test engineering.
- Universal inputs and outputs
- Designed for table-top and wall-mounted usage for lab and servicing applications.
Expert Key devices have been designed and developed according to actual customer requirements and incorporate reliable measurement technology. The devices can be connected to PCs via USB or LAN interfaces.
Expert Key devices are simple to use and the ProfiSignal Go software is highly user friendly. A patented measurement procedure and ease of operation enables users to quickly carry out data acquisition and evaluation without the need for extensive periods of learning and familiarization. Just three steps are required to portray measurement data in trend diagrams. Data is stored continuously to a database. Users will be impressed by the system's functioning.
General features of the Expert Key series:
- Very cost effective
- Communications via USB or LAN
- Universal inputs and outputs
- Scalable, even for large applications
- Synchronizing of multiple devices
- Drivers for LabVIEW, Modbus, OPC, DASYLab, etc
The Expert Key L

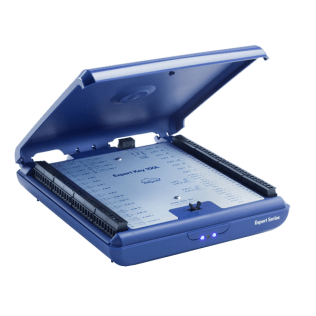

The Expert Key 100L and 200L are designed for table-top and wall-mounted usage. Pressing the detachable lid gives a clear overview of connections. Sensors and actuators are connected via plugs located on the side.
Because of its universal capability, the L-model is ideally suited to laboratory and servicing applications as well as to test and trial systems.
Specifications
- Type: 100
- Analog inputs: 14
- Current sources for RTD: 4
- Sensor types : 1000
- Resolution: 18 bit
- Total sampling rate: 100 kHz
- Measurement range: +/- 100, 200, 500 mV; +/- 1, 2, 5, 10 V
- Integrated reference junctions for thermocouples: yes/1
- Galvanic isolation: 500 VDC to system / PE
- Withstand voltage: +/- 40 V
- Max. differential voltage: +/- 40 V
- Analog outputs: 2
- Resolution: 16 bit
- Max. output rate: 50 Hz
- Output voltage / current: 0-10 V / +/- 10 V / 0-20 mA / 4-20 mA / +/- 20 mA / free
- Galvanic isolation: 500 VDC to system / PE
- Digital inputs: 12
- Logic level: low: 0-1.5 V / high: 5-90 VDC at 2.7 mA to 3.5 mA
- Max. input frequency: 2 x 1 MHz, 10 x 10 Hz
- Measurement range: 0.1 Hz .. 1 MHz or 10 kHz
- Galvanic isolation: yes, 2.5 kVDC
- With counter function: yes, 12
- Counter resolution: 64 Bit
- Max. input frequency: 2 x 1 MHz, 10 x 10 Hz
- Measurement range: 0.1 Hz .. 1 MHz or 10 kHz
- Digital outputs: 8
- Max. switching voltage / current: max. 30 W: 30 V / 1 A .. 50 V / 0.6 A
- Max. output rate: 10 Hz
- Galvanic isolation: yes, 2.5 kVDC
- Galvanic isolation with PWM function: 4
- Pulse duty factor: 1:100 .. 1:500
- PWM basic frequency: 5 Hz .. 10 kHz
- Sensor connection: Screw terminals with 0.14 .. 2,5 mm openings
- Power supply: External power supply, 9 .. 24 VDC
- Max. power input: 6 W
- Temperature range: 0 .. 50 C
- USB interface: USB 2.0 high-speed
- Ethernet interface: 100Base-TX
- Dimensions: 50 x 185 x 215 mm
- Weight: 750 g
