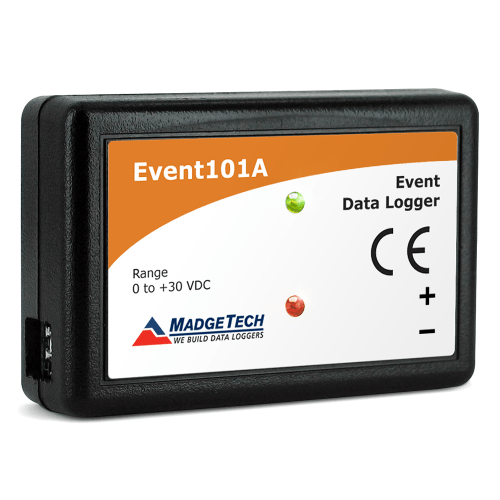

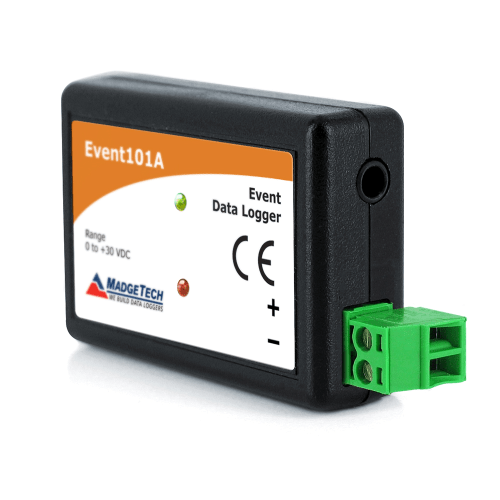

Event data logger with a 10 year battery life - Event101A
Order Me In, Once ordered this item will likely dispatch before the 04th of October 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.
$292.22 AUD Inc. GST




Our research has shown that the Event101A is second to no other data logger when it comes to price and performance. Using the MadgeTech Software, starting, stopping and downloading from the Event101A is simple and easy. Graphical, tabular and summary data is provided for analysis and data can be viewed in multiple units, using the Engineering Units function. The data can also be automatically exported to Excel for further calculations.
As the leader in low power data logger technology, MadgeTech continuously improves its products and develops solutions to meet ever-changing challenges. The Event101A was designed with our customers in mind. MadgeTech offers free firmware upgrades for the life of the product so that data loggers already deployed in the field can grow with new technological developments. Units do not need to be returned to the factory for upgrades. The user can do this automatically from any PC.
Download Software and Cable
This unit requires the IFC200 for using the data logger
Specifications
Input Range |
0 to 30V |
---|---|
Input Low |
<0.4V |
Input High |
>2.8V |
Internal Weak Pull-up |
<60A |
Minimum Input Active (Low) |
10 Microseconds |
General
Memory |
406,323 events |
---|---|
Reading Rate |
4Hz to 1 every 24 hours |
Baud Rate |
115,200 |
LED Indicators |
Red and Green |
Battery Life |
10 years typical, dependent upon frequency and duty cycle |
Material |
ABS plastic |
Dimensions |
1.4" x 2.2" x 0.6" (36mm x 56mm x 16mm) |
Operating Environment |
-40 to +80C (-40 to +176F), 0~95%RH non-condensing |
Required Interface Package |
IFC200 |
Approvals |
CE |
