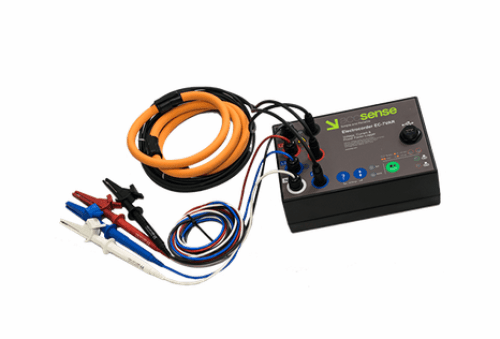

Electrocorder EC-7VAR

ORDER ME IN
Product code: EC-7VAR-RS-60

Backorder Now, once ordered your item will dispatch before the 11th of June 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

The EC-7VAR Power Energy Data Logger is specifically designed to monitor one, two or three current channels, as well as one, two or three voltage channels.

-Records voltage, current, power factor, power and energy.

-Memory capacity of 32,000 (true RMS) values per channel (10bit), up to 300 days continuous recording.

-Kit includes logger, Rogowski transducers, voltage leads, USB lead, software & carry case.

Read more

$3,398.00 AUD + GST
 $3,737.80 AUD Inc. GST
The EC-7VAR Power Energy Data Logger is specifically designed to monitor one, two or three current channels, as well as one, two or three voltage channels. It allows you to monitor the loading and energy consumption of the installation. Power Factor recorded is the phase angle between L1 and A1. Amp ranges are selectable from 400 or 3000 AAC.
The Electrocorder range use a constant sampling technique, unlike the single reading of competitors. When the loggers start to record, they sample every channel 16 times per cycle, a cycle is 16ms at 60Hz and 20ms at 50Hz. At the end of each averaging period, 3 quantities are saved for each channel, the True RMS average, the Max, which is the highest cycle value during the period and the Min, lowest cycle value. This means that it will record all the peaks and troughs which are one cycle or longer.
The voltage and current levels are stored with dates and times. With the back-up battery, the Electrocorder can continue to record for months.
Features:
- Records voltage, current, power factor, power and energy
- Three voltage input channels (L1, L2, & L3), 0-600V & Neutral(N) 0-300V
- Voltage channels record VAvg, VMax & VMin on all 3 channels. Data stored in non-volatile memory
- Three current channels (A1, A2 & A3) 400A or 3kA switch selectable
- Three current channels record IAvg, IMax & IMin on all 3 channels. Data stored in non-volatile memory
- Memory capacity of 32,000 (true RMS) values per channel (10bit), up to 300 days continuous recording
- Kit includes logger, Rogowski transducers, voltage leads, USB lead, software & carry case
